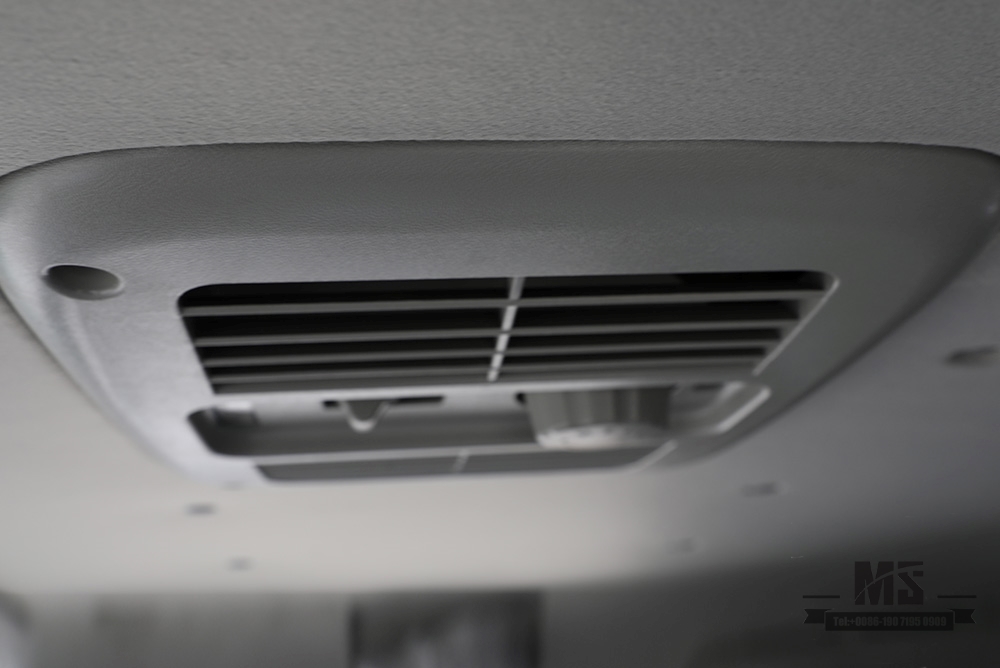

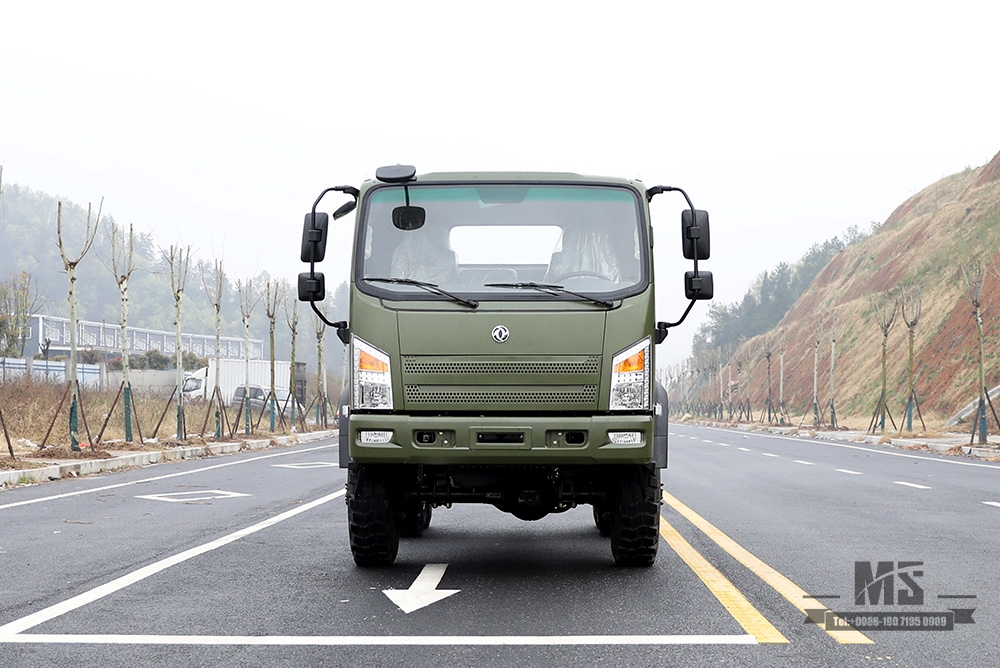

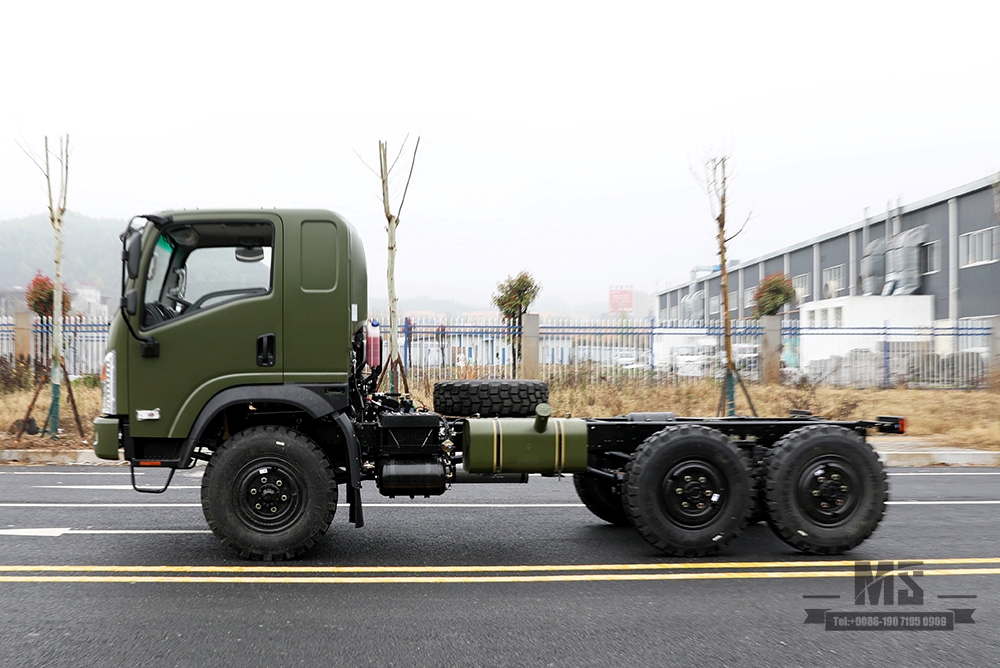

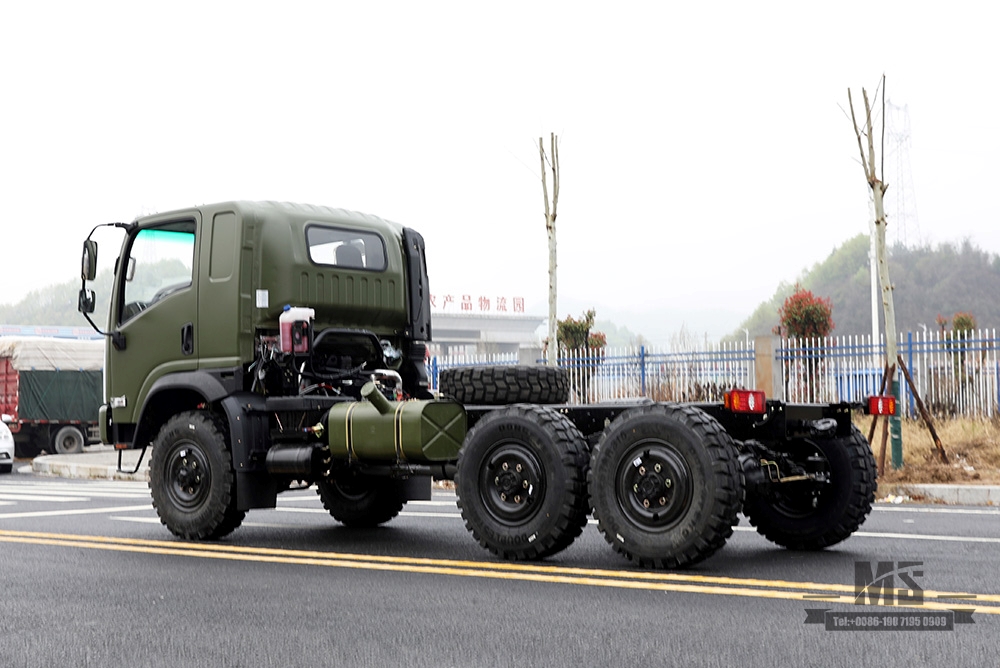

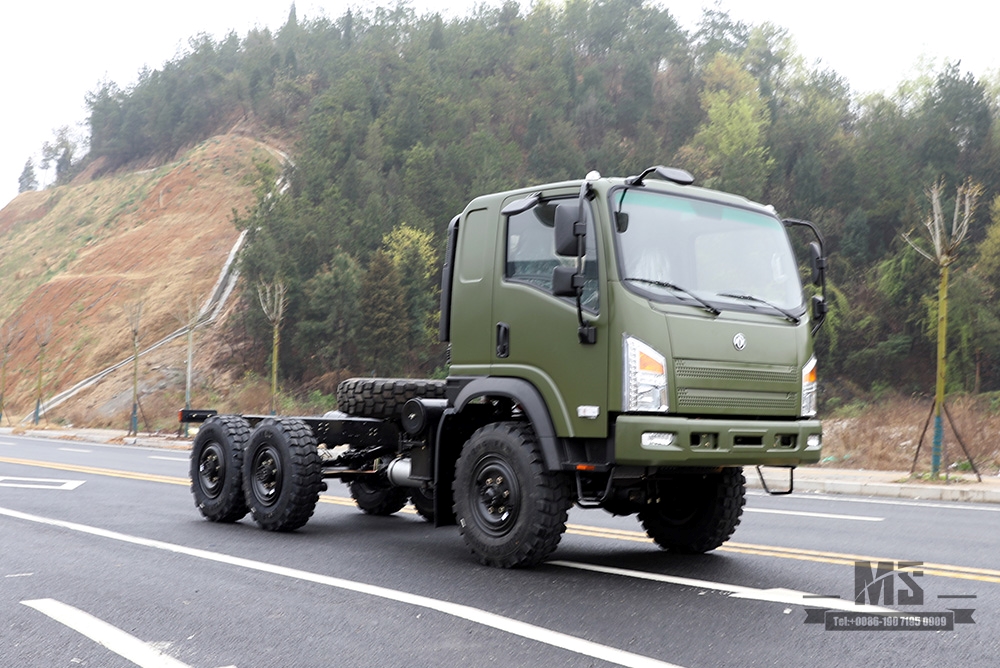

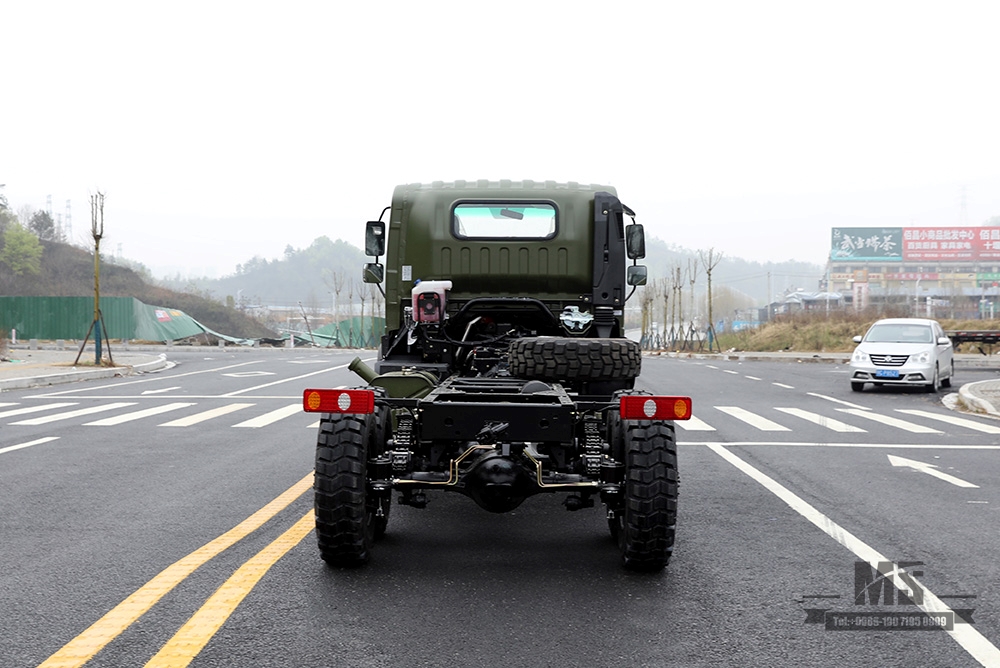

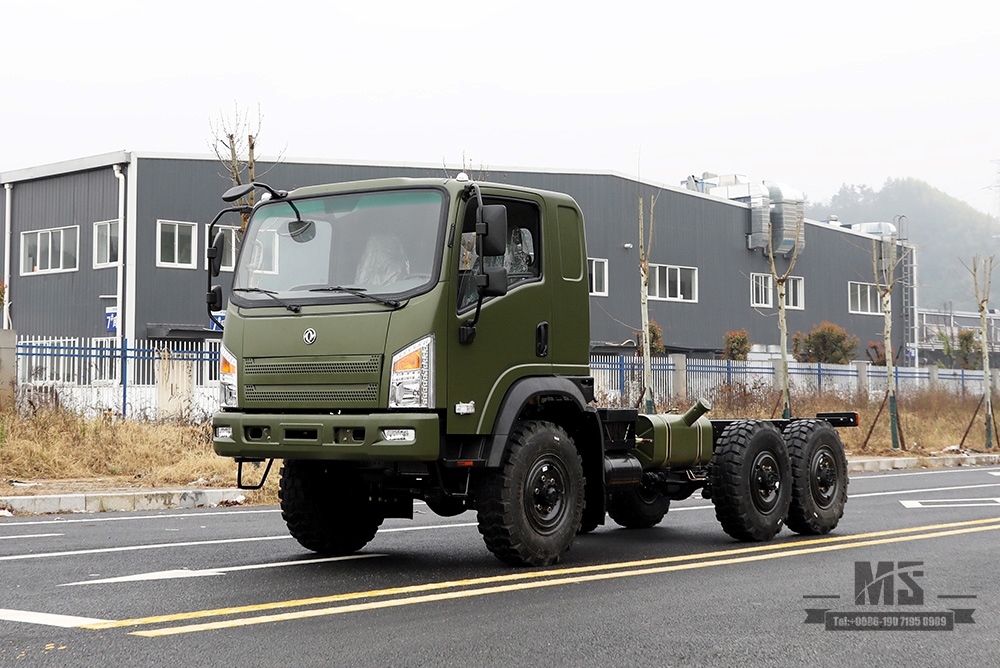

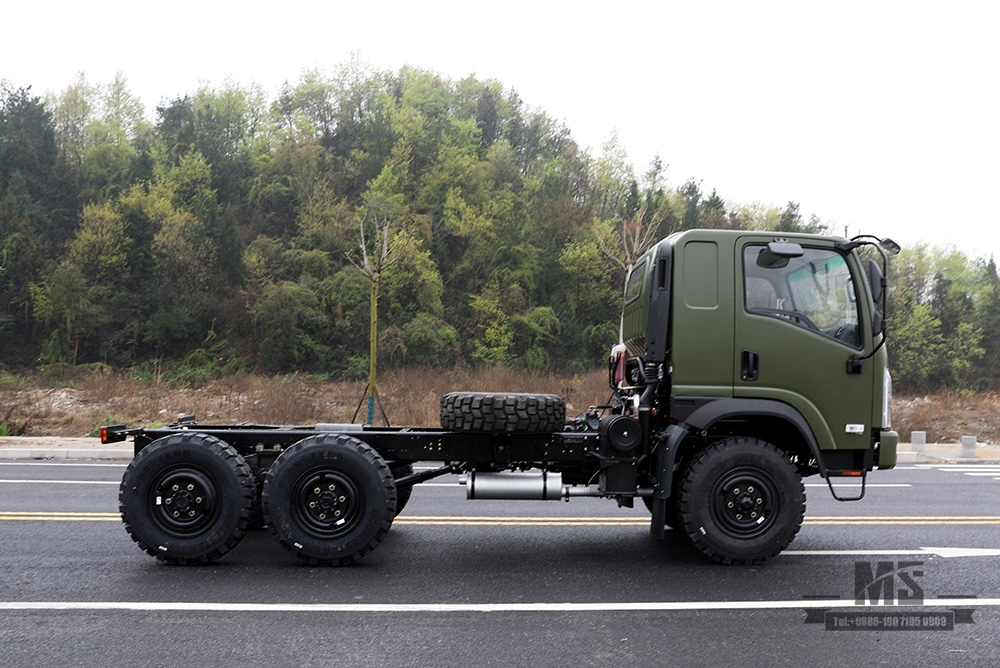

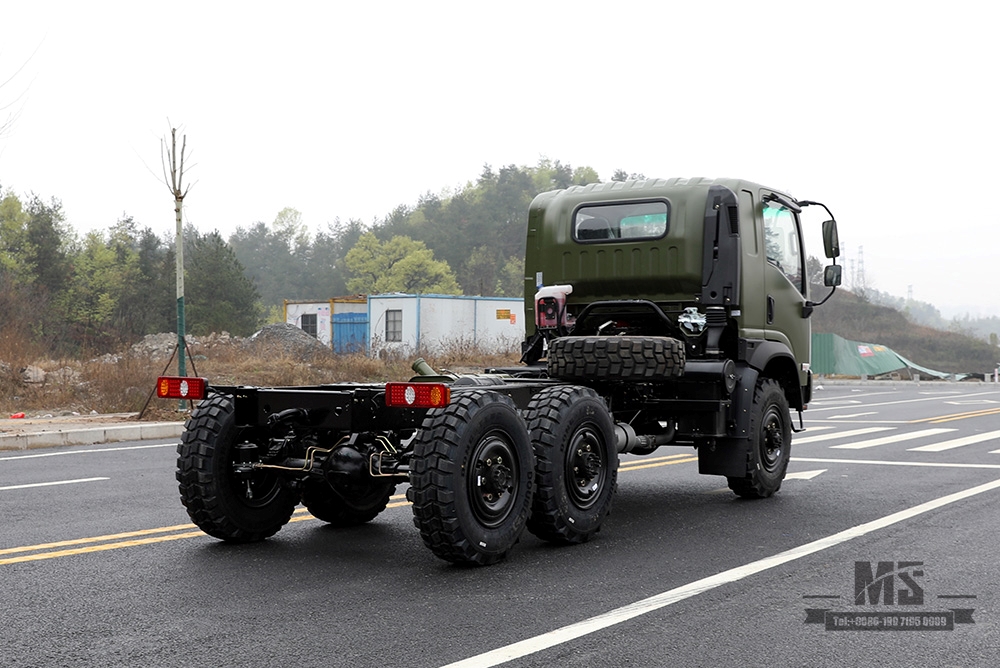

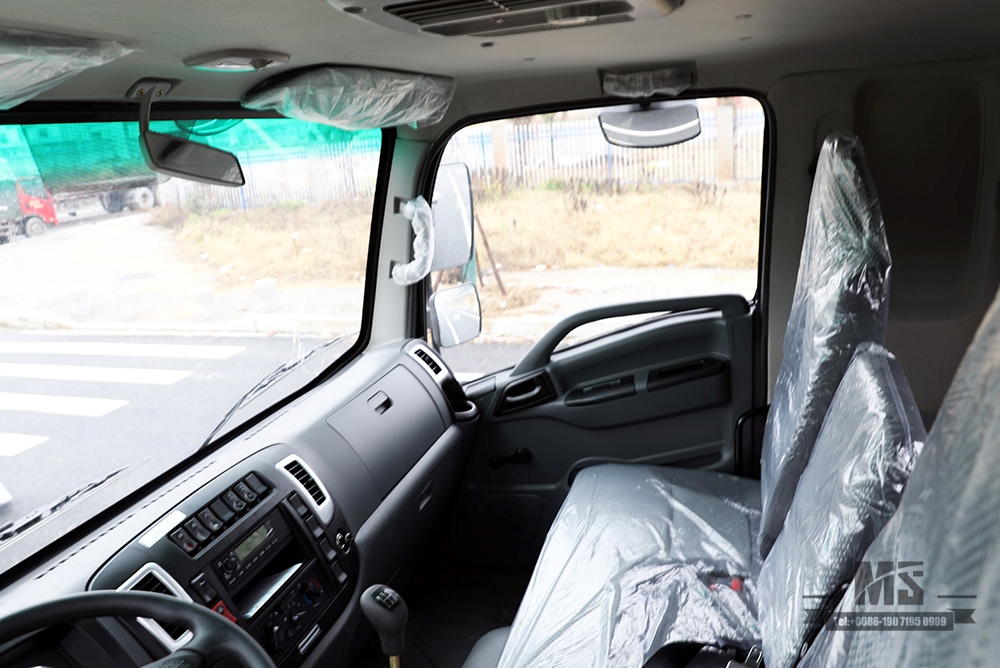

The 6*6 flat-head off-road truck chassis is improved by our company's designers on the basis of Dongfeng's classic EQ2082E6D. The use of two steps makes the rest of the vehicle more convenient, the cab decoration is more luxurious, the flat-head cab has a wide field of vision, and is equipped with a sleeper and a ventilation fan. The bottom of the cab is equipped with thick sound insulation and shock-absorbing pads to prevent excessive engine noise during driving. It can provide the driver with a comfortable driving experience. Compared with the previous pointed cab, the flat cab takes up less space, leaving more room for modification at the rear.
Basic configuration | |
Engine | Cummins B190 33 |
Drive type | 6*6 |
Gearbox | Manual Six-speed Gearbox |
Transfer box | Time Sharing Six Drive, with high and low two gears |
Driver Cab | Dongfeng Flathead One-and-a-half Row Cab |
Vehicle Axle | 2.7T/2.7T/2.7T |
Vehicle Frame | 860*232mm |
Tire | 11R18(6+1) |
Vehicle Suspension | Steel Plate Spring 10/13 |
Electric Circuit | 24V Electric Circuit System |
Traction device | Towing hook, electrical connector, air brake connector |
Optional items | Heating and cooling air conditioning, right-hand drive cab, reversing image |
This chassis uses a 190-horsepower engine and special off-road tread tires. It is specially built for off-road use and is suitable for traveling in harsh areas such as deserts and forests. Compared with other freight trucks, it is compact in size, so it is called the "Bobcat" off-road vehicle.
Detailed parameter | |
Overall Vehicle Dimension | 6260*2320*2660mm |
Modification Dimension | ≥3700mm |
Wheelbase | 3130+1065mm |
Wheel Track | 1774mm |
GVW | 7800kg |
Curb Weight | 4340kg |
Number of passengers | 3 |
Engine Displacement | 5900ml |
Maximum Power | 125kw |
Maximum speed | ≥85km/h |
Approach Angle/Departure Angle | 27°/44° |
Maximum Climbing Grade | 60% |
Upper Frame Plane Off the Ground | 985mm |
Oil Tank volume | 160L |
Minimum ground clearance | 285mm |
Obstacle Crossing height | 415mm |
Wading depth | 535mm |
Note: This configuration is for reference only, please refer to the actual car.
For 50% of our shipment, the vehicle will be transported by sea, to all main continents such as Africa, South America, Middle East, Oceania and Southeast Asia, either by container or RoRo/Bulk shipment. For inland neighborhood countries of China, such as Russia, Mongolia, Kazakhstan, Myanmar, Vietnam etc. , we can transport vehicles by land.
For light spare parts in urgent need. We can send it by international courier service, such as DHL, TNT, UPS, or Fedex.
On T/T term, 50% down payment is required in advance,and the 50% balance shall be settled before shipment or when products are out of the factory. T/T payment can be negotiated.
Our professional team will provide you with one-stop customs clearance service. We can provide EXW, FOB, FCA payment terms according to customers’ need.
