Basic configuration | |
Engine | Dongfeng Cummins B190 33 |
| Drive type | 6*6 |
Gearbox | Manual Six-speed Gearbox |
Transfer box | Mechanical high and low gears |

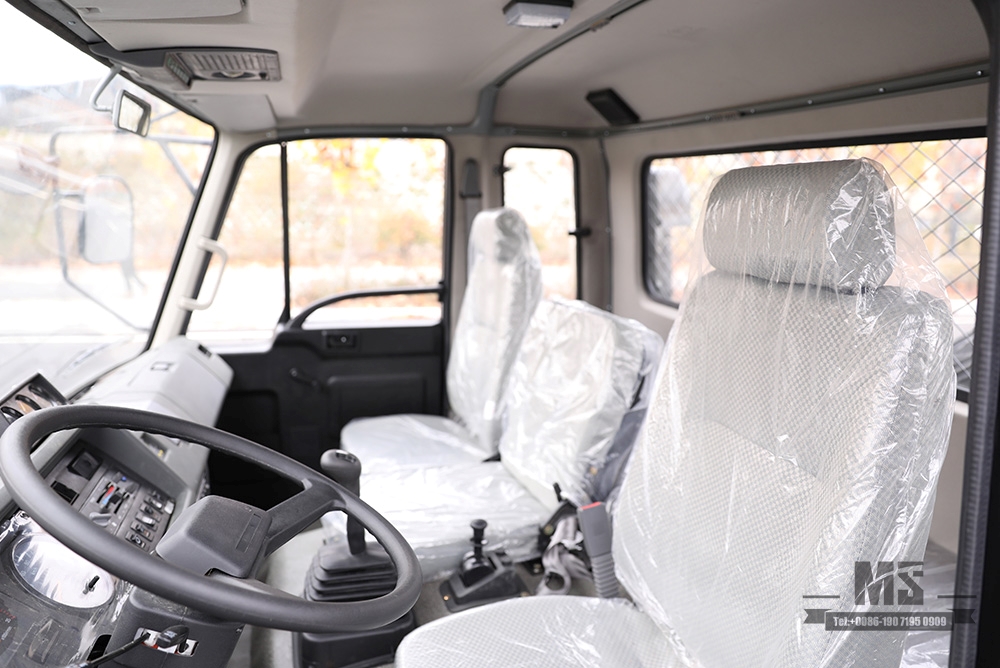

| Driver Cab | Dongfeng 153 Flathead One-and-a-half Rows with Sleeper |

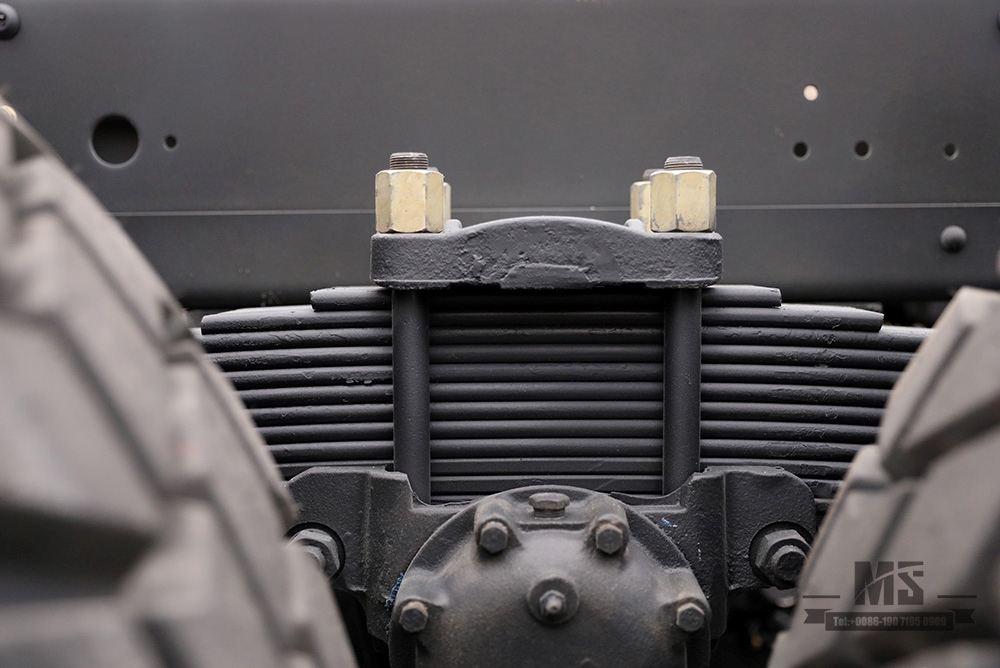

Vehicle Axle | 3.5T/3.5T/3.5T |

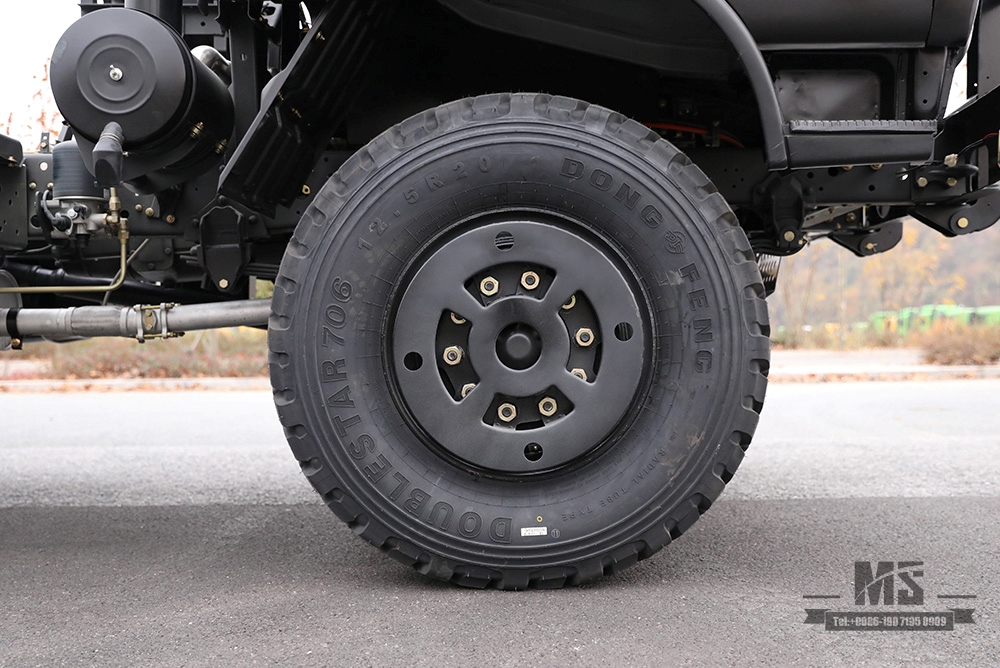

Tire | 12.5R20 (6+1pcs) |
| Electric circuit | 24V circuit system, two 12V 180A.h batteries |
| Optional Items | Air conditioning, extractor, winch, inner tyre support, battery insulator |
Detailed parameter | |
| Overall Vehicle Dimension | 7586*2320*2740mm |
| Modification Dimension | 4680mm |
| Wheelbase | 3475+1250mm |
Wheel Track | 1876/1870/1870mm |
GVW | 10435kg |
| Curb Weight | 6725kg |
| Loading Weight | 3500kg |
| Pulling Weight | 4800kg |
| Engine Displacement | 5900ml |
| Number of passengers | 3 |
| Maximum power | 140kW |
| Maximum speed | ≥90km/h |
| Engine Torque | 640N.m |
Minimum Turning Diameter | 18.8m |
Approach Angle/departure Angle | 35°/34° |
Minimum ground clearance | 315mm |
| Slope Gradient | 40% |
| Maximum Climbing Grade | 60% |
Note: This configuration is for reference only, please refer to the actual car.














For 50% of our shipment, the vehicle will be transported by sea, to all main continents such as Africa, South America, Middle East, Oceania and Southeast Asia, either by container or RoRo/Bulk shipment. For inland neighborhood countries of China, such as Russia, Mongolia, Kazakhstan, Myanmar, Vietnam etc. , we can transport vehicles by land.
For light spare parts in urgent need. We can send it by international courier service, such as DHL, TNT, UPS, or Fedex.

On T/T term, 50% down payment is required in advance,and the 50% balance shall be settled before shipment or when products are out of the factory. T/T payment can be negotiated.

Our professional team will provide you with one-stop customs clearance service. We can provide EXW, FOB, FCA payment terms according to customers’ need.
