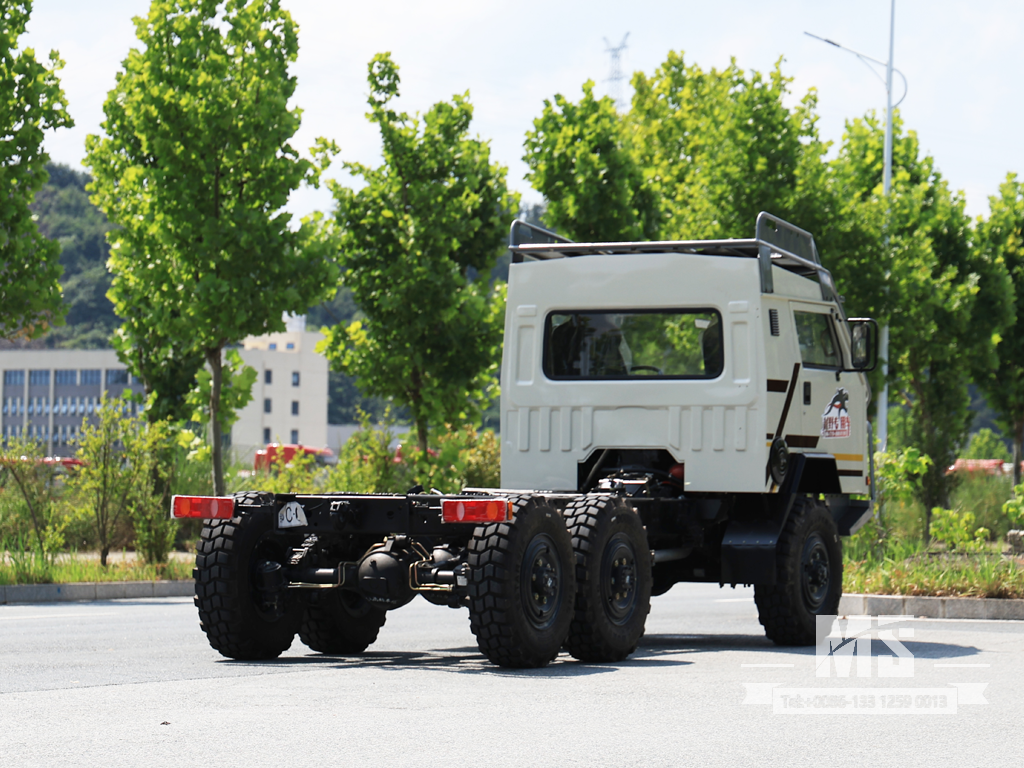

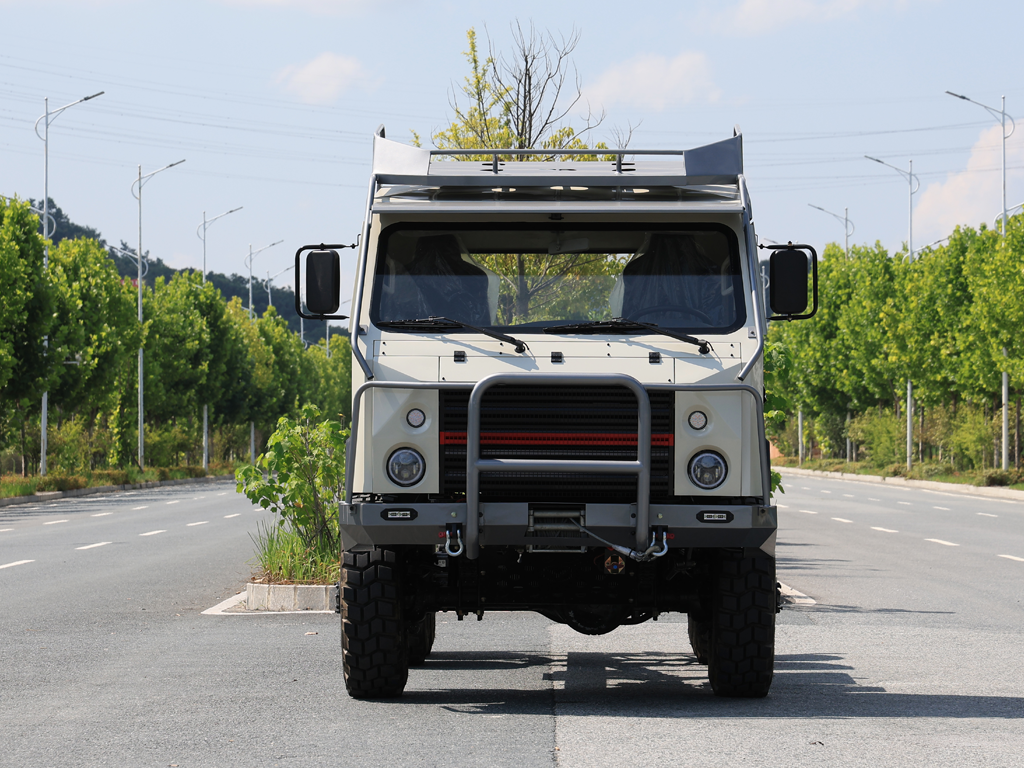

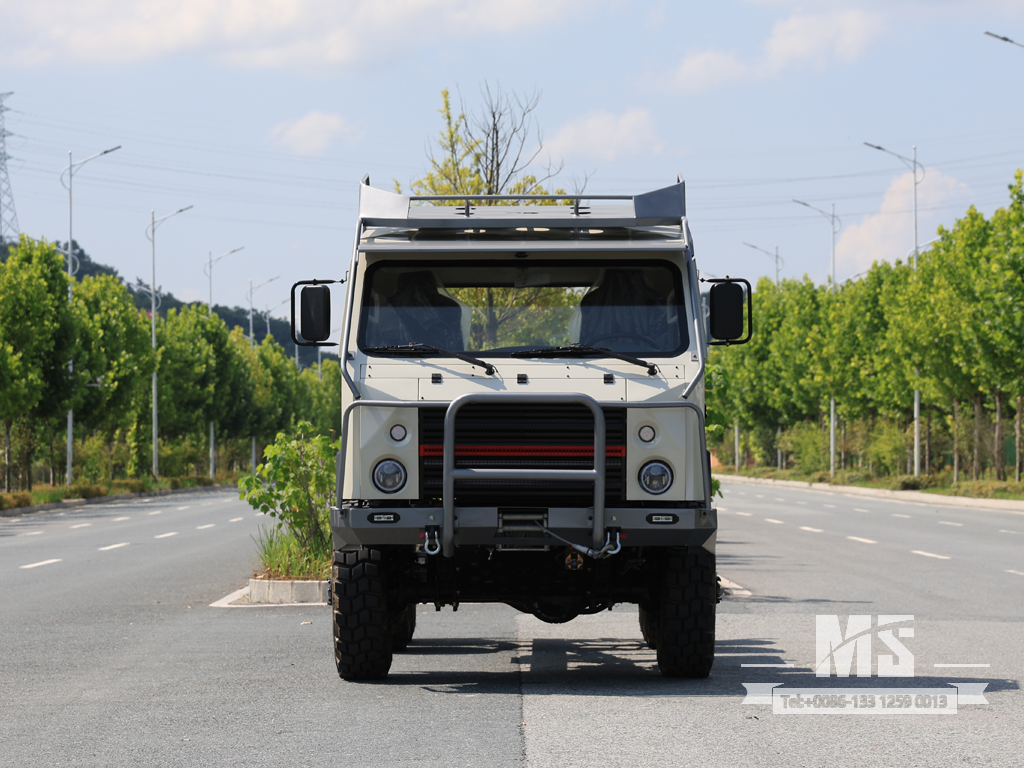

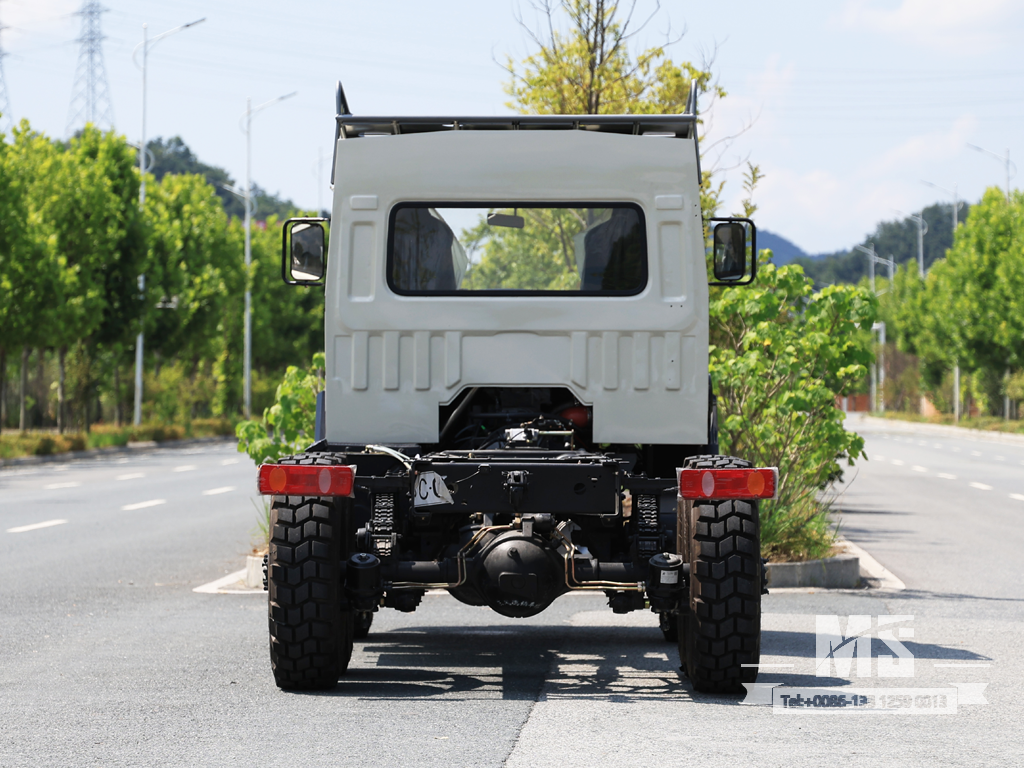

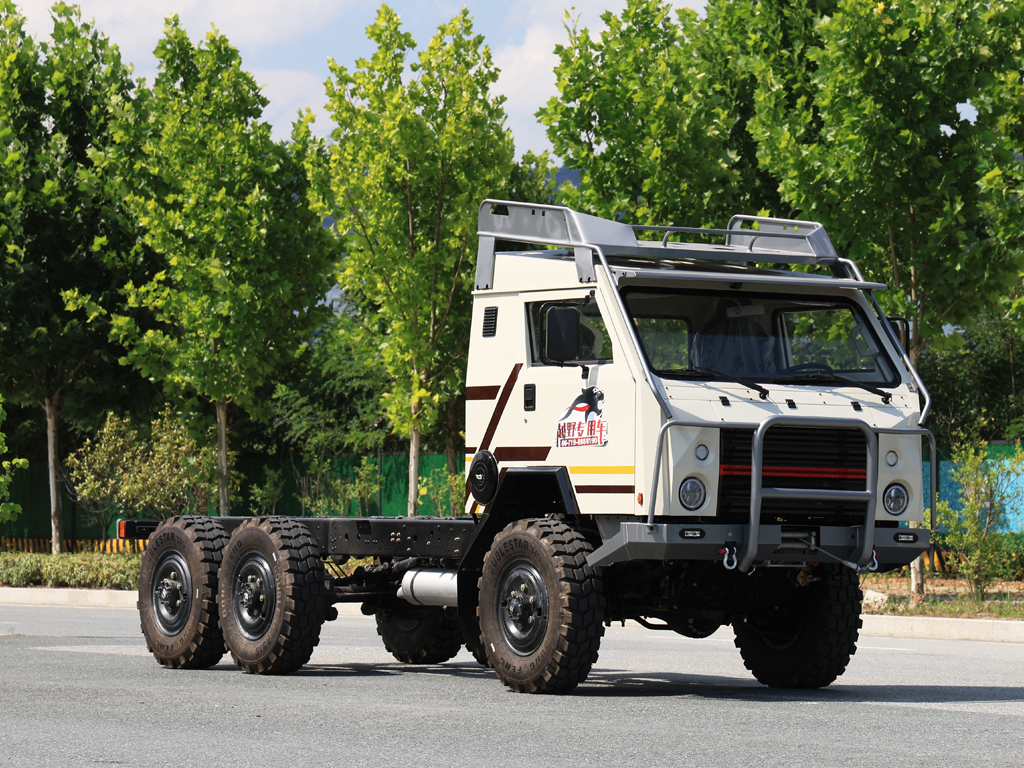

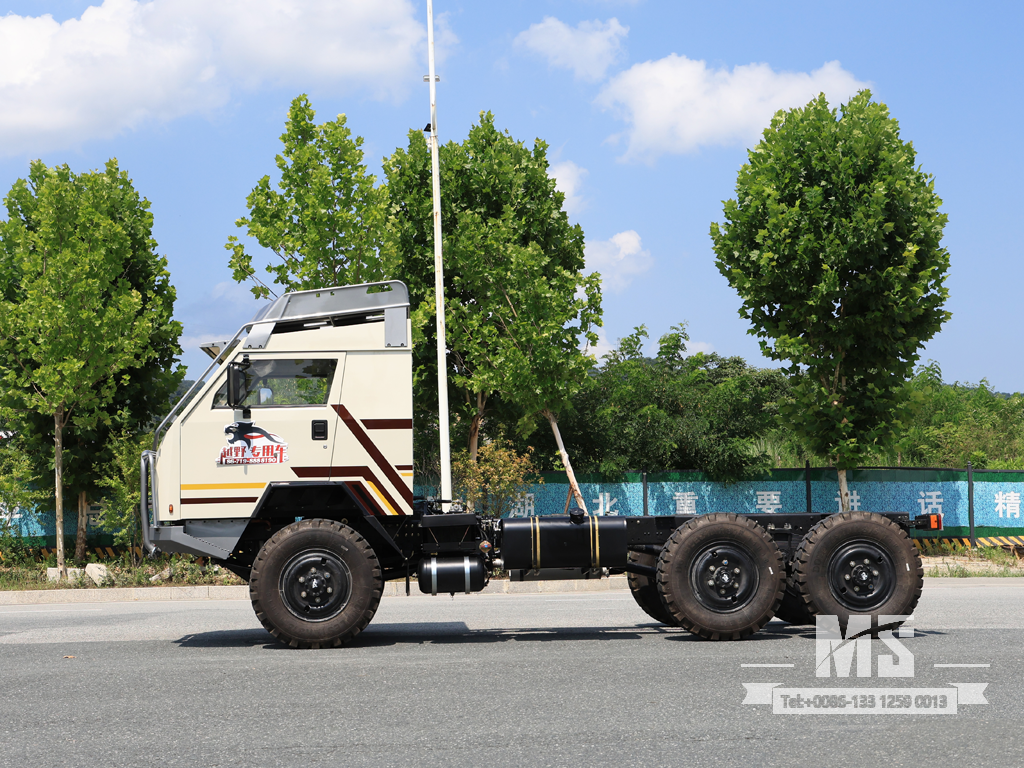

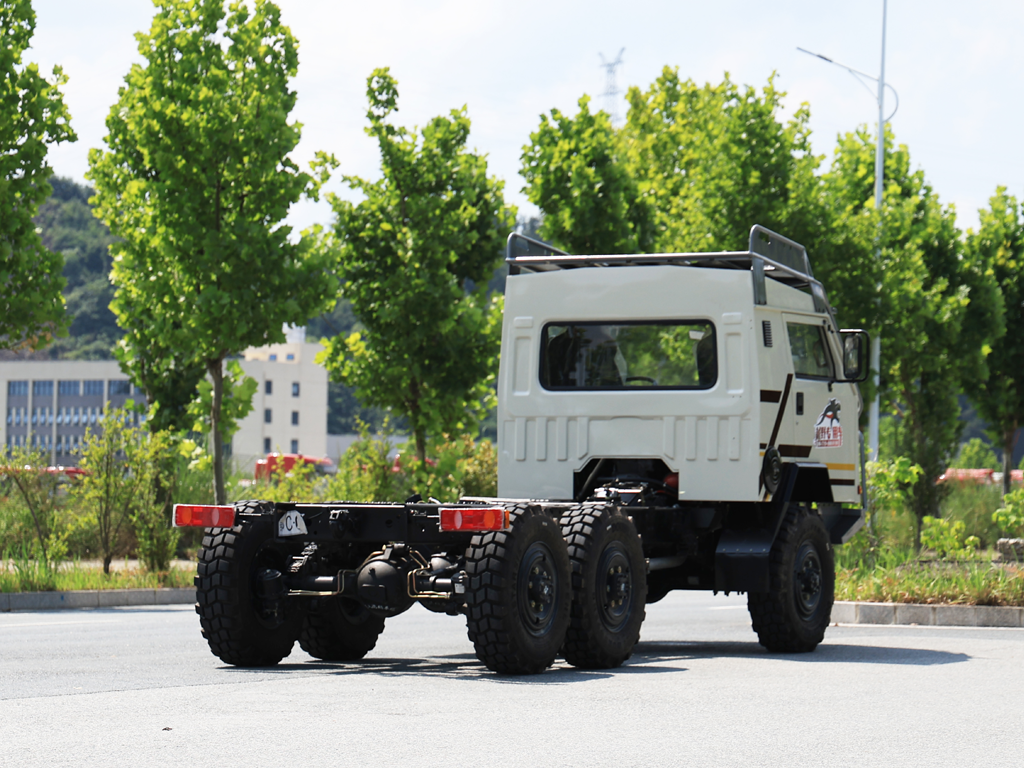

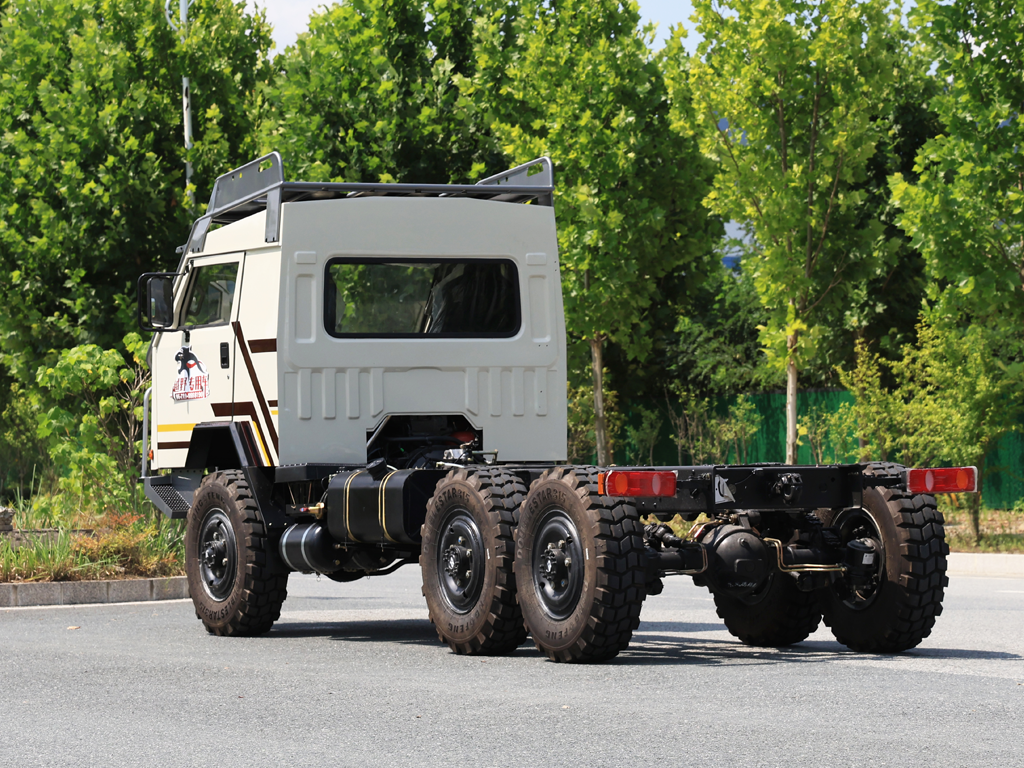

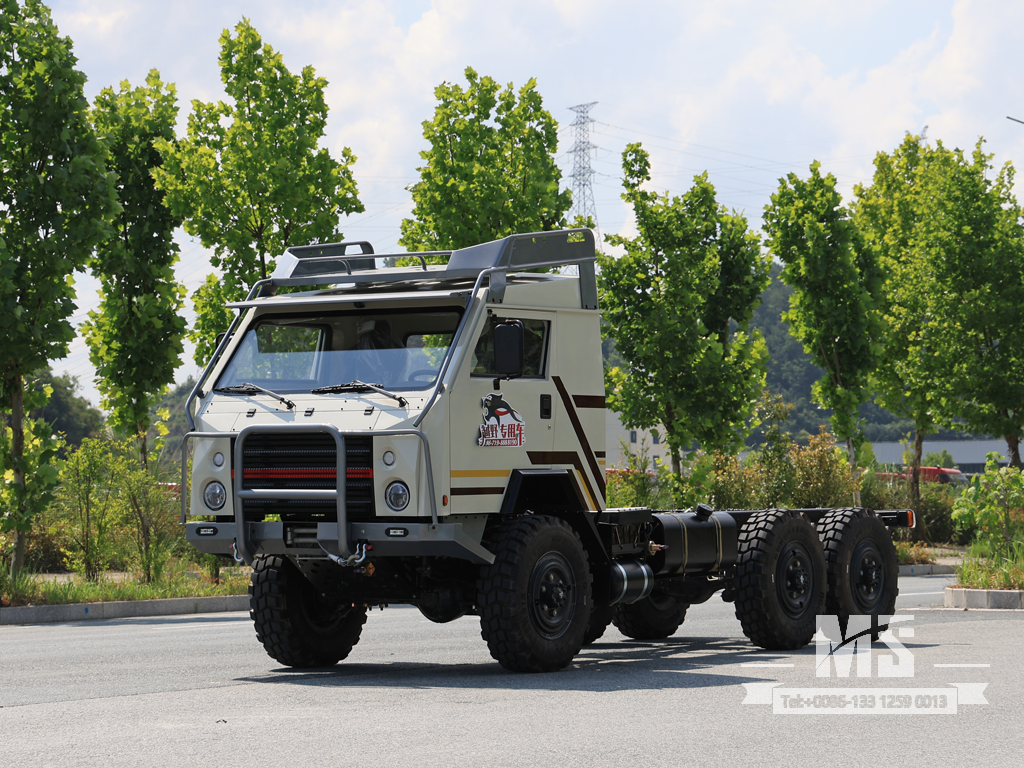

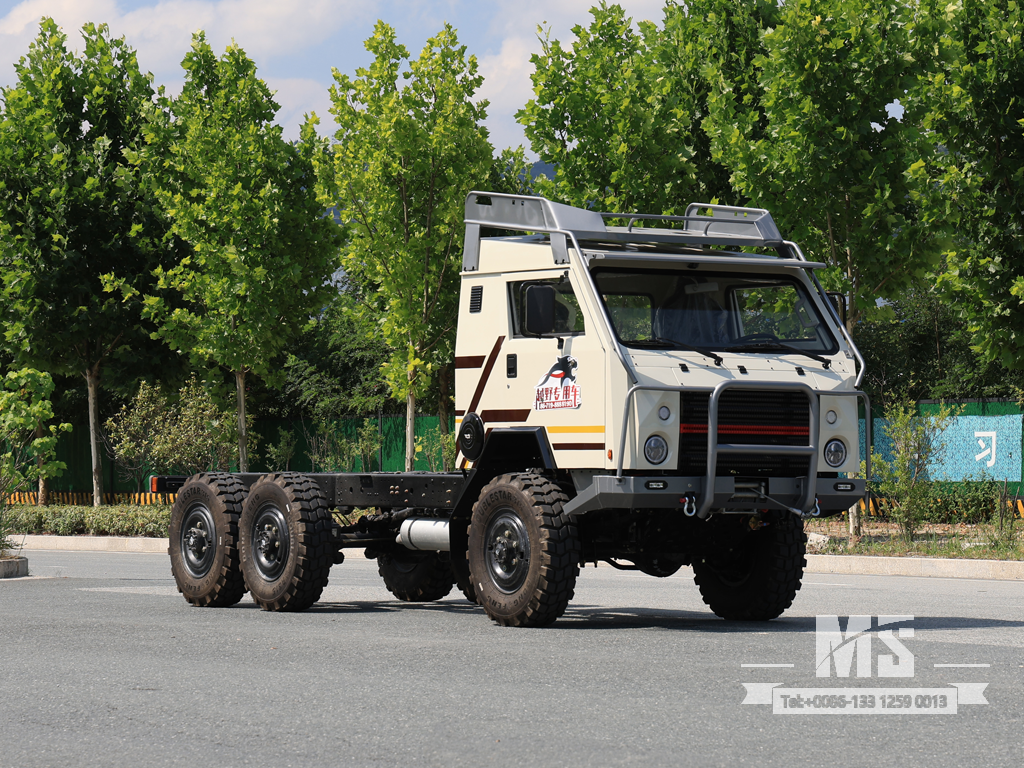

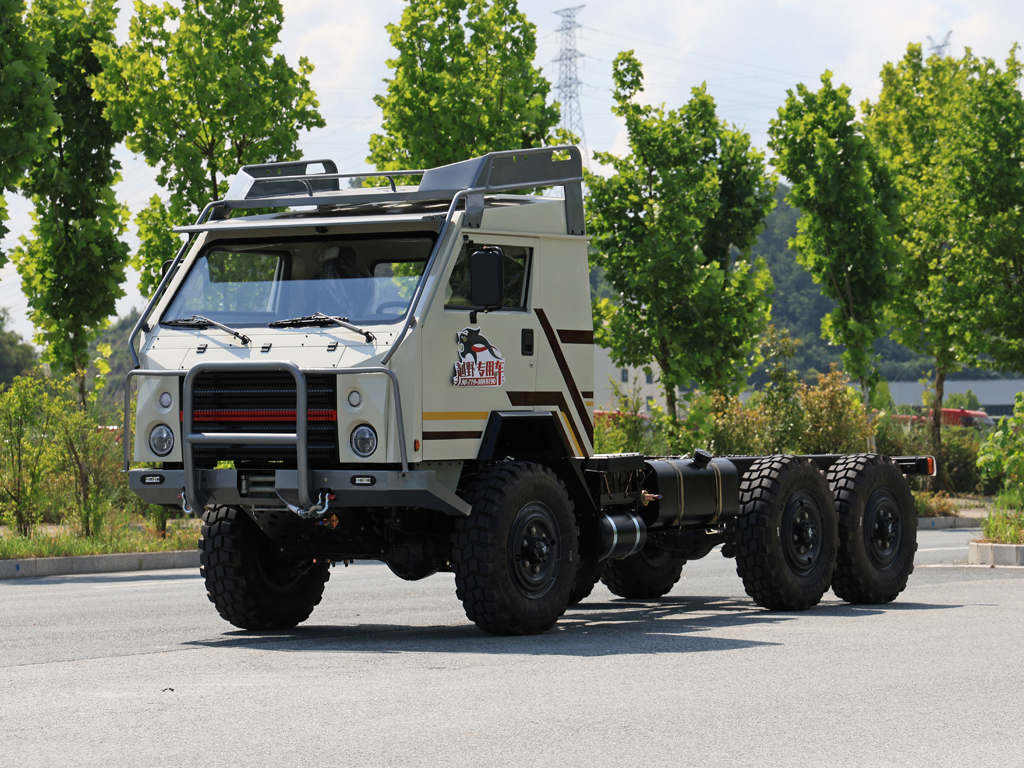

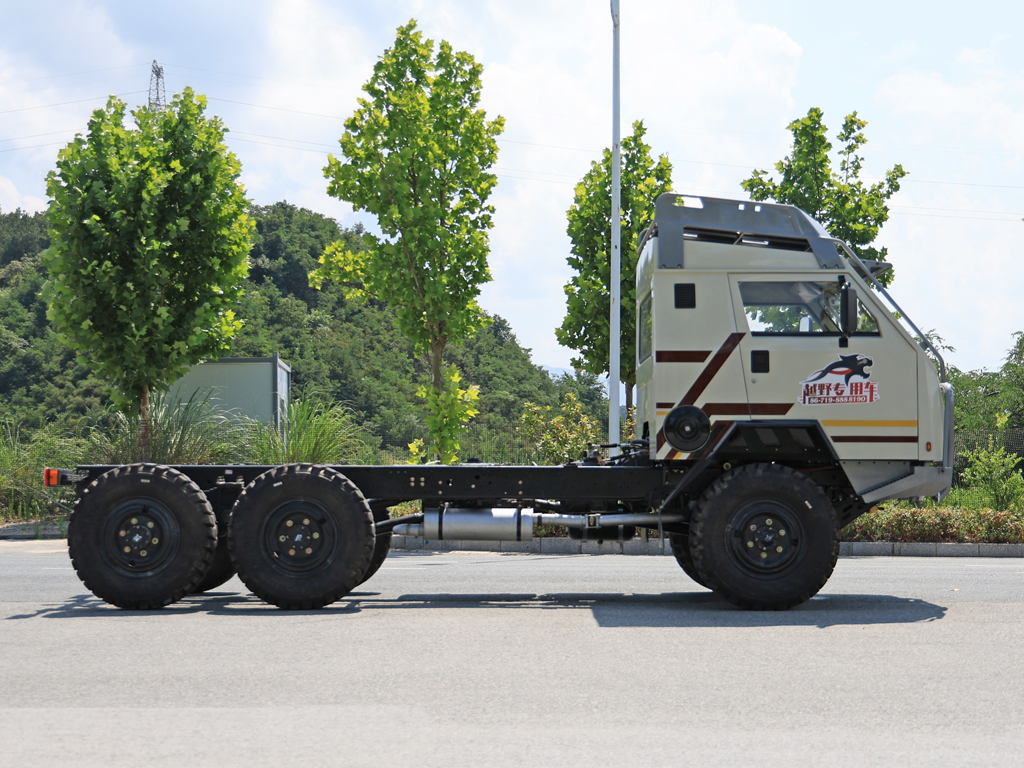

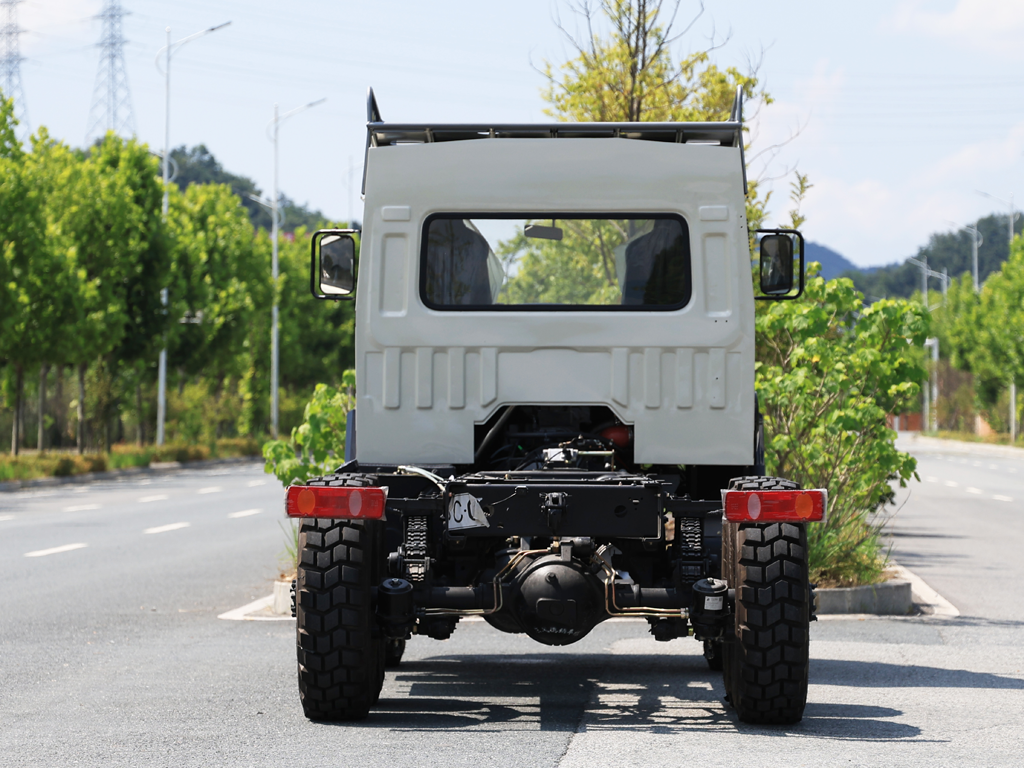

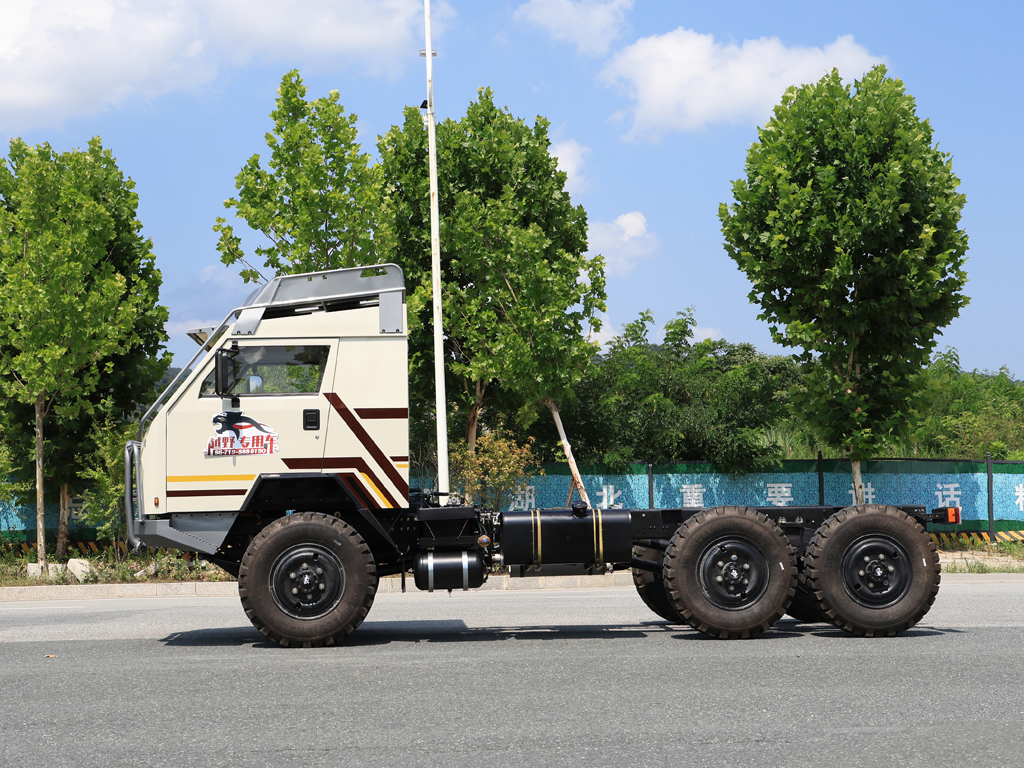

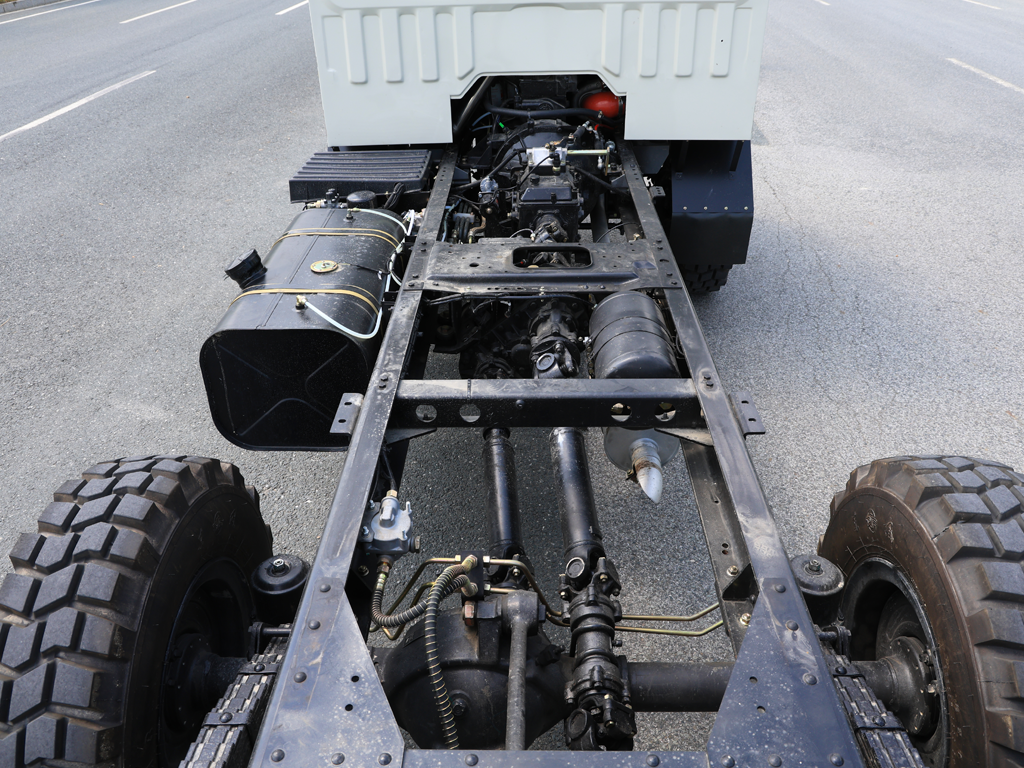

170HP 6WD Off-road Chassis
Basic configuration |
Drive type | 6*6 |
Engine | Cummins B170 33 |

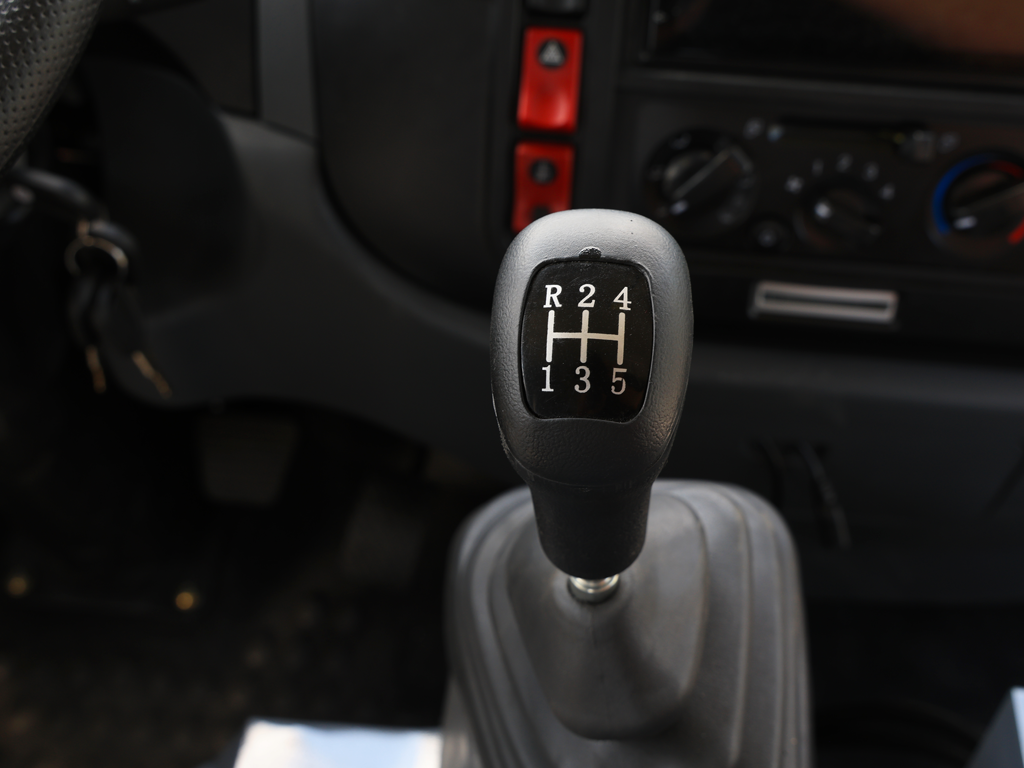

Transmission | Shou chi Manual 5-speed |
Transfer case | High and Low Gears |
Driver Cab | Single-row Cab |
Vehicle Axle | Dont Alxe 2.5T/Rear Alxe 2.5T |

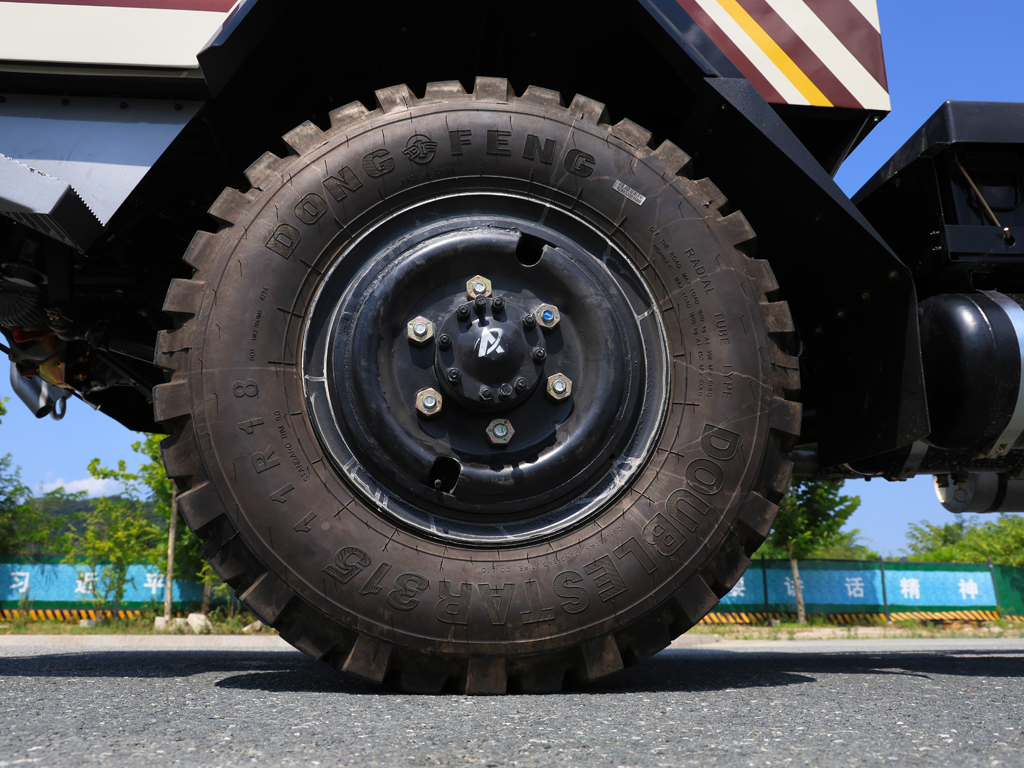

Tire | 11R18（6+1） |
Leaf Spring | 9/15 |
Detailed parameter |
Chassis Overall Dimension | 6140×2040×2820mm |
Modification Dimensions | ≥3450mm |
Wheelbase | 3100+1070mm |
Wheel track | 1800/1780mm |
GVW | 7500kg |
Curb Weight | 4670kg |
Maximum speed | 85km/h |
Approach Angle/departure Angle | 28°/57° |

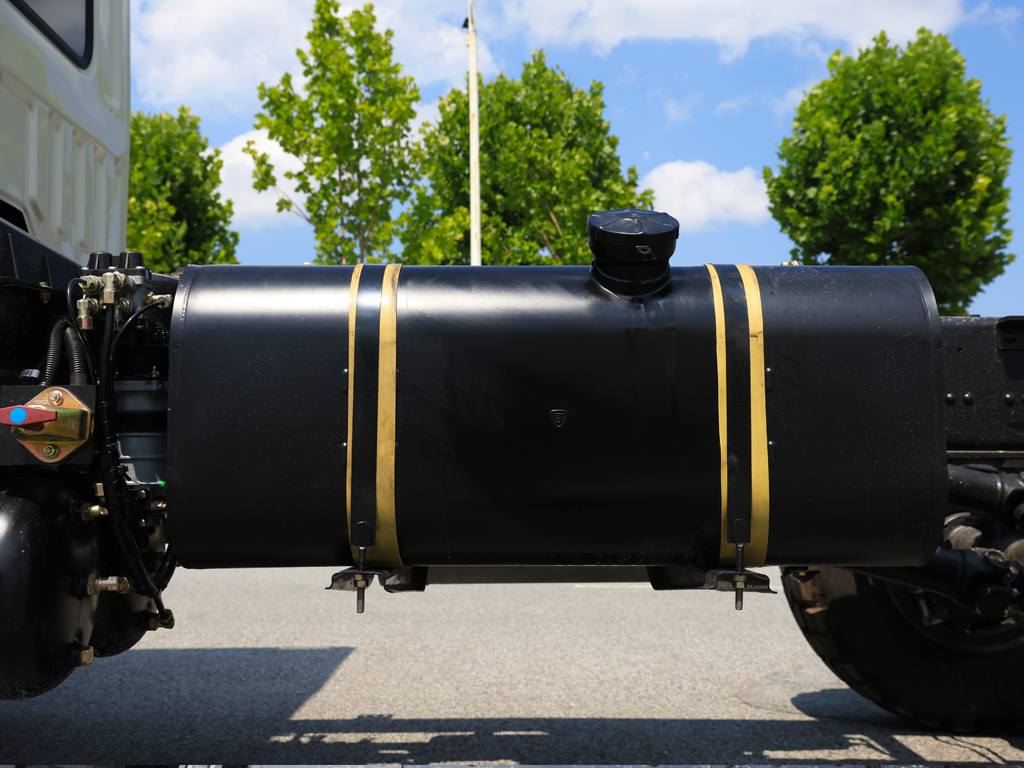

Tank volume | 160L |
Minimum ground clearance | 470mm |
Fording depth | 490mm |
Obstracal height | 210mm |
Note: This configuration is for reference only, please refer to the actual car.
