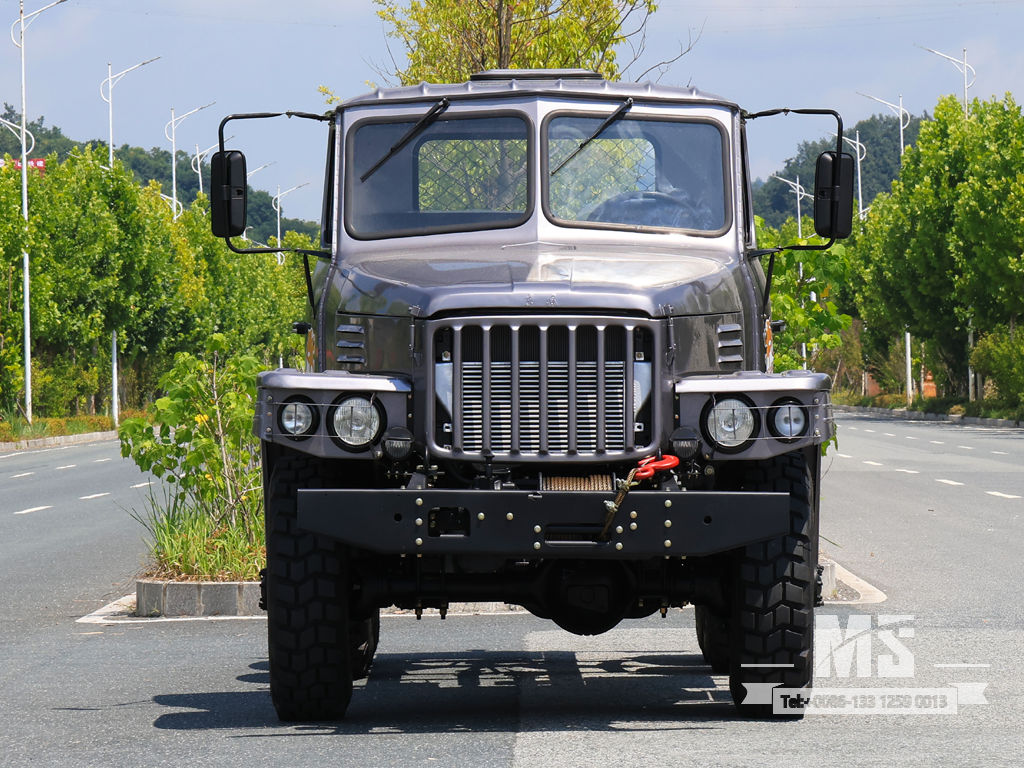

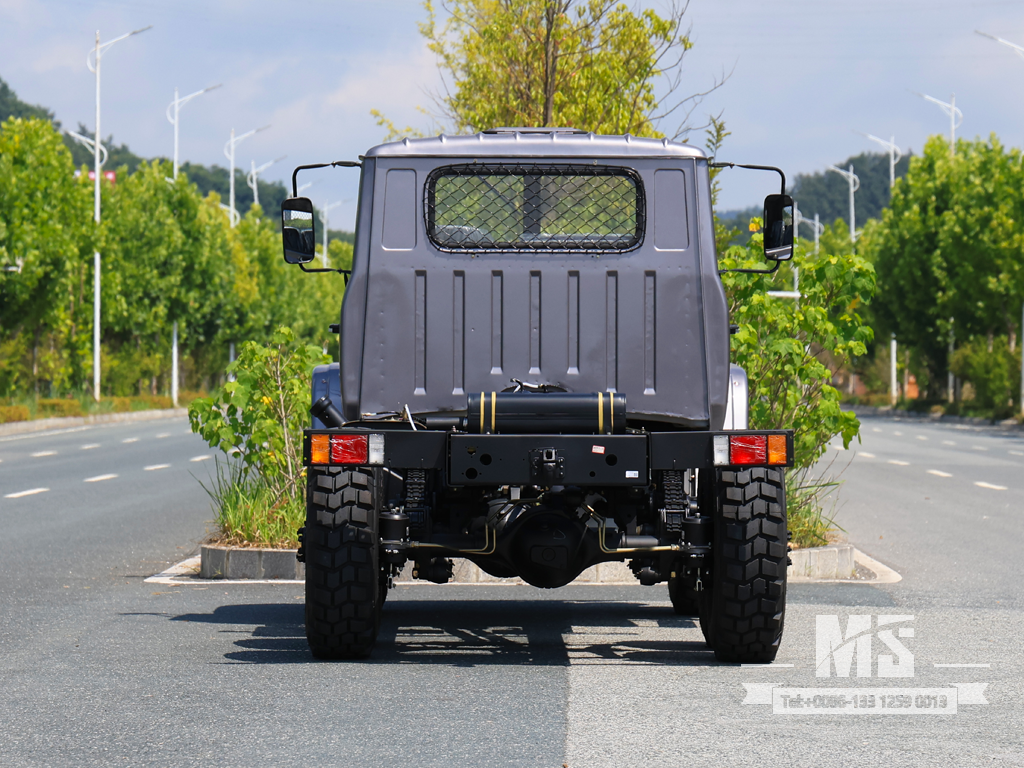

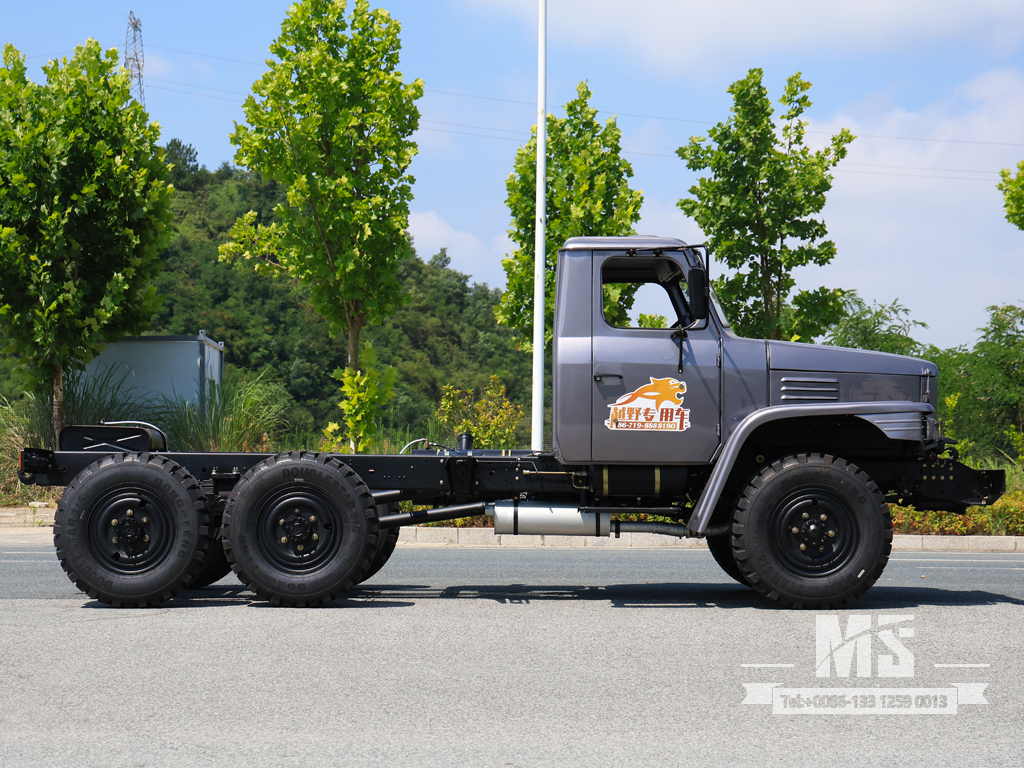

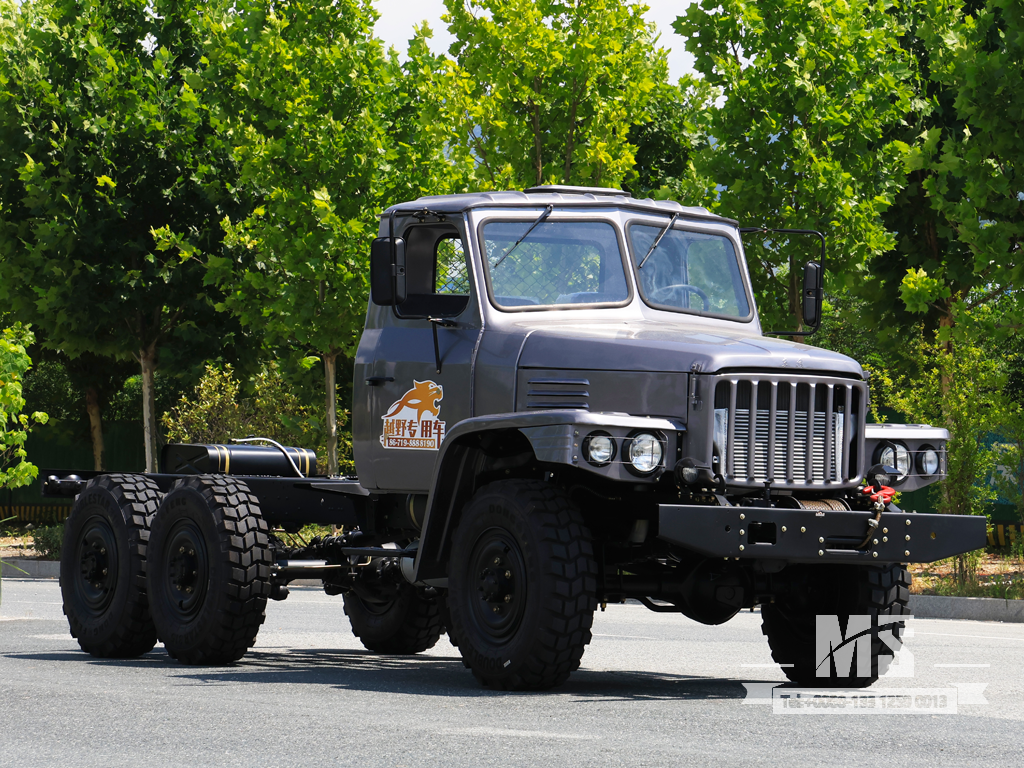

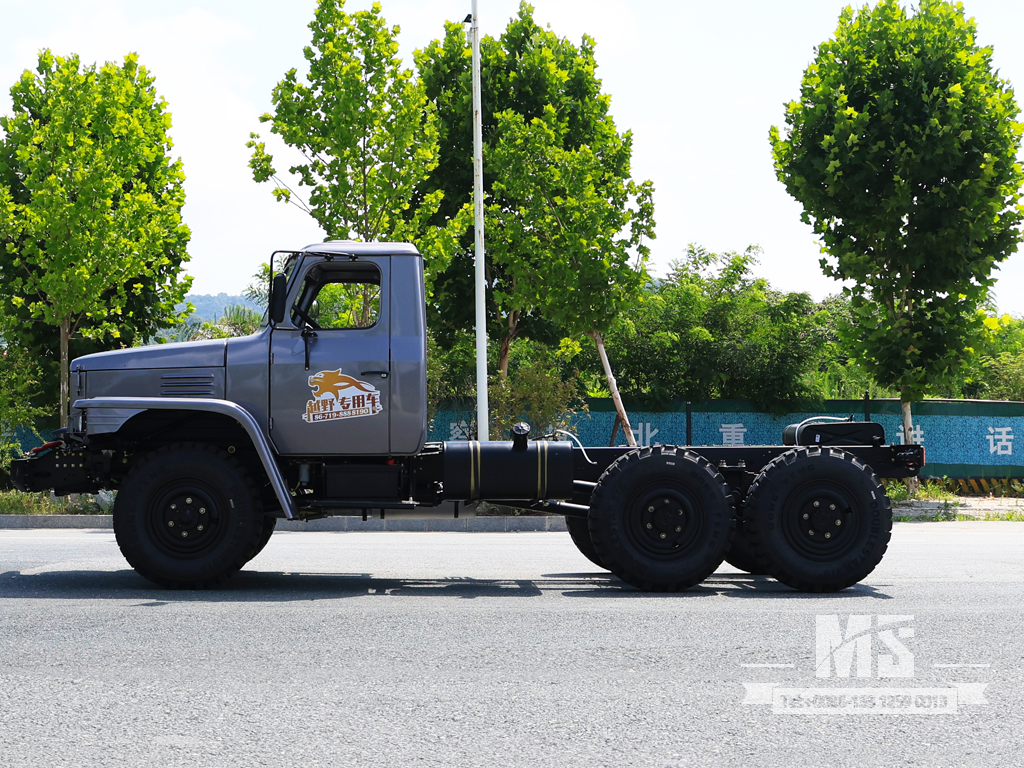

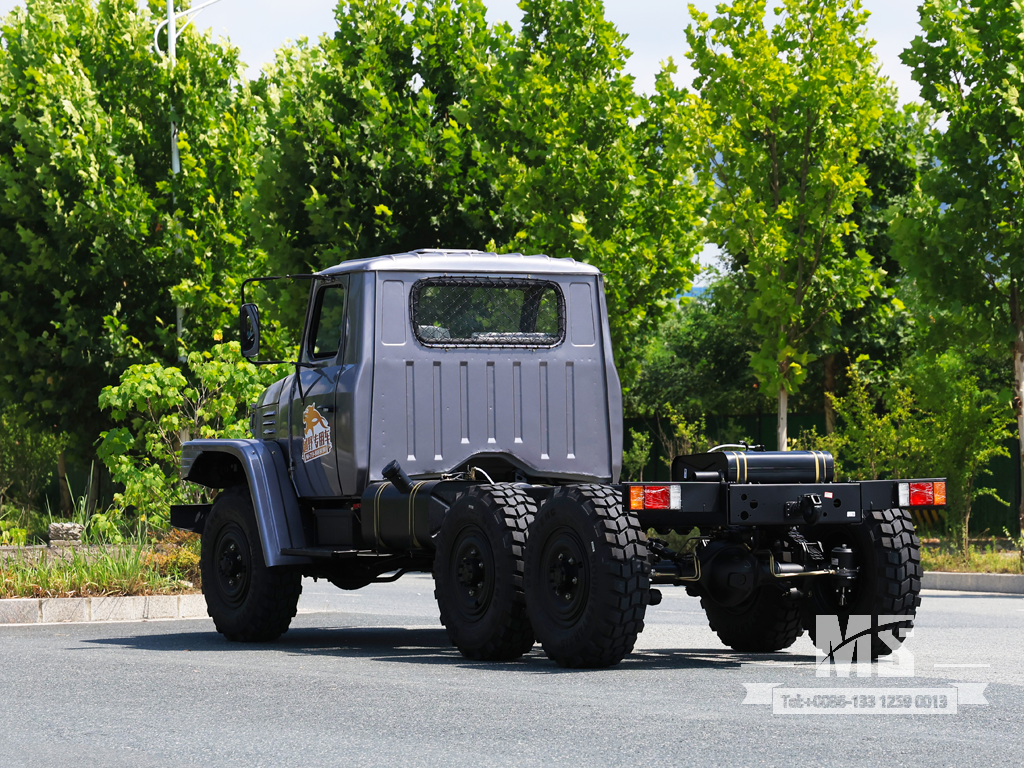

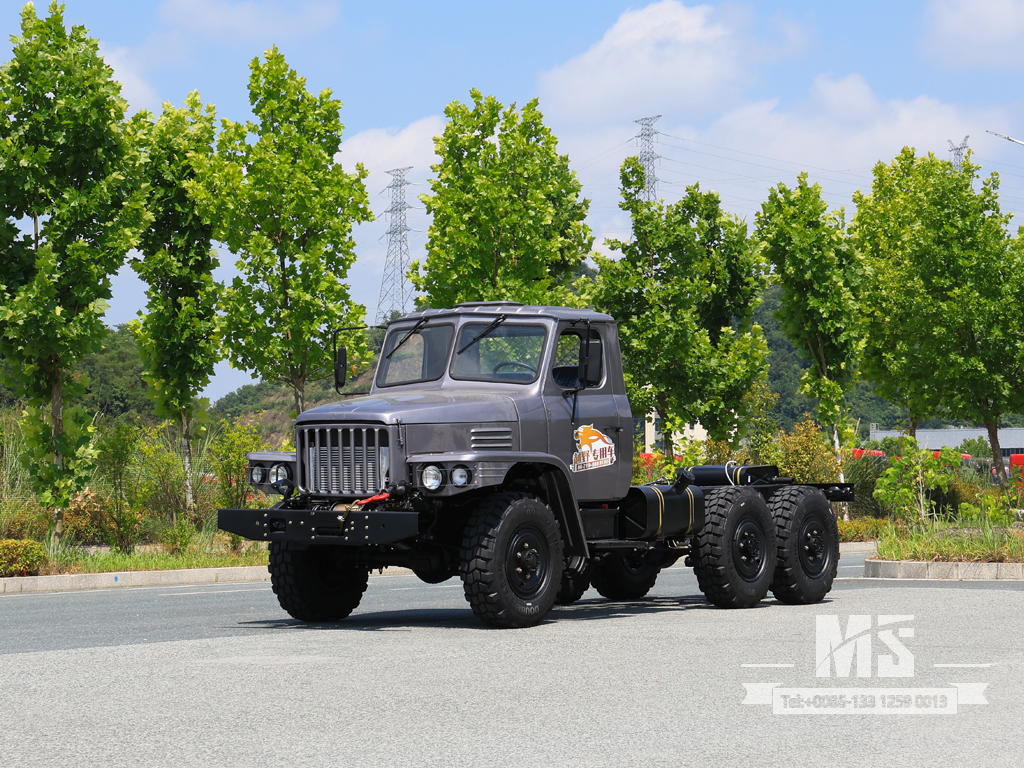

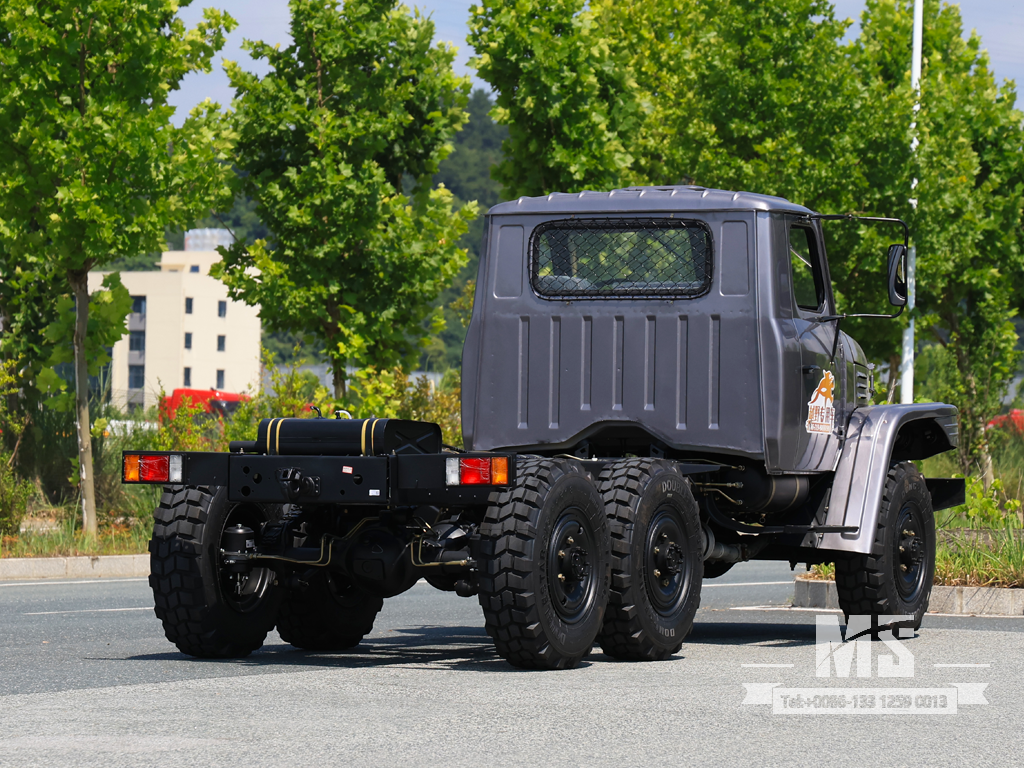

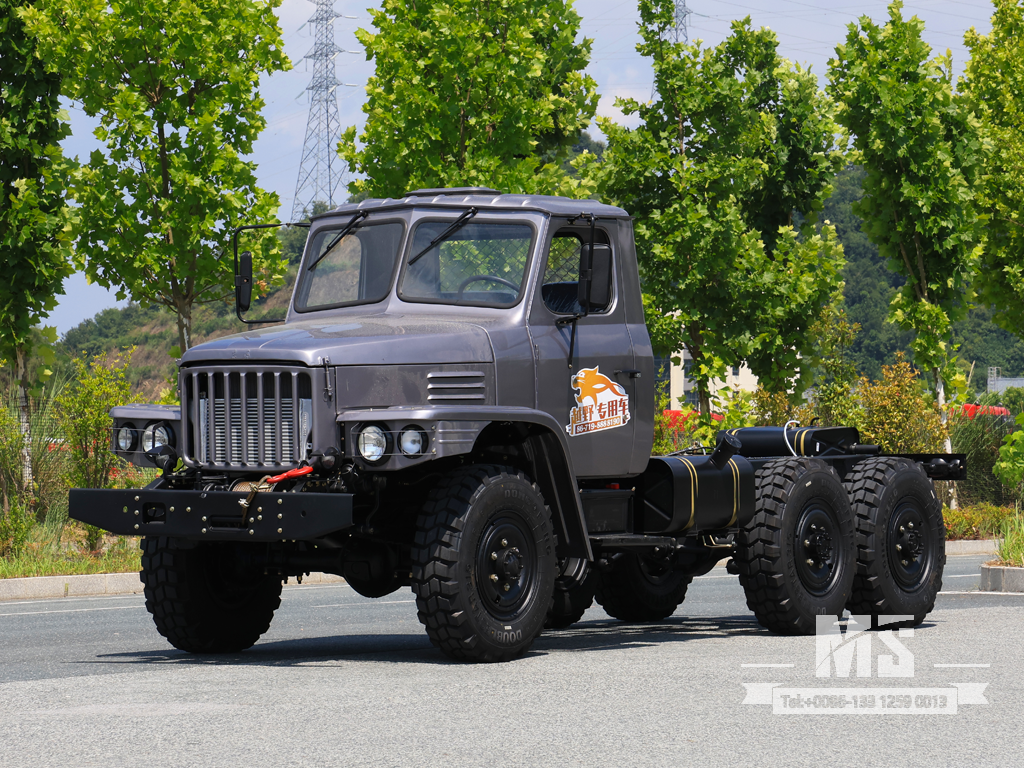

170HP 6WD Off-road Chassis
Basic configuration |
Drive type |
6*6 |
Engine |
B170 33 |
Transmission |
Shou chi Manual 5-speed |
Transfer case |
High and Low Gears |

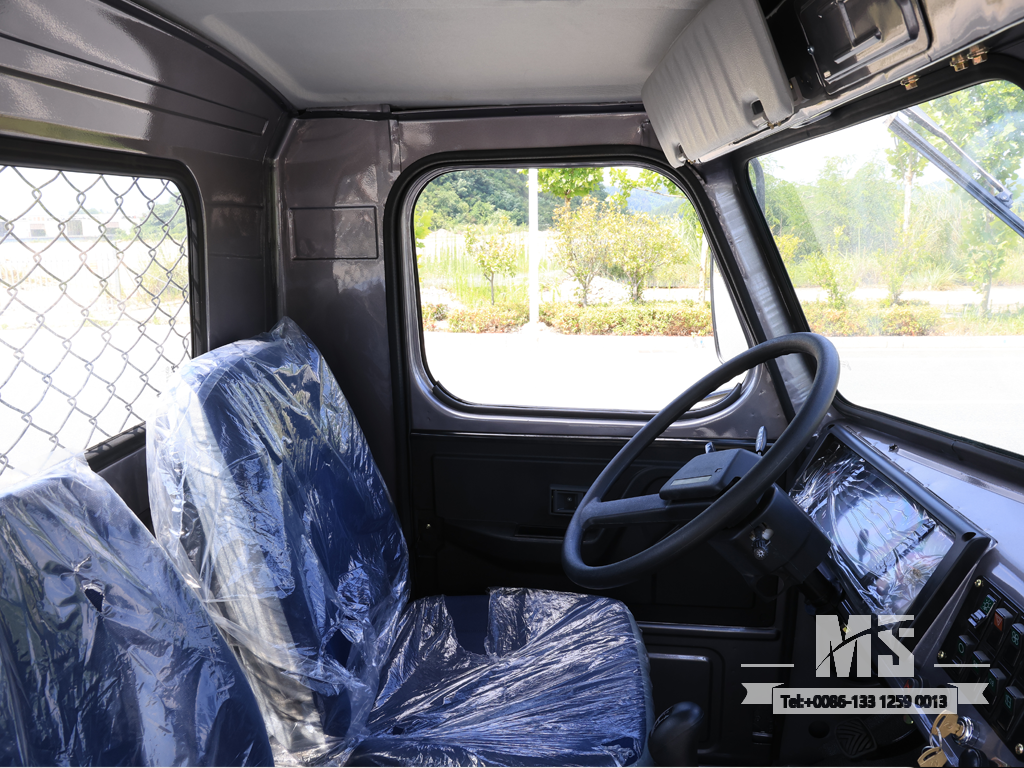

Driver Cab |
Dongfeng Conventional Single Row Cab |

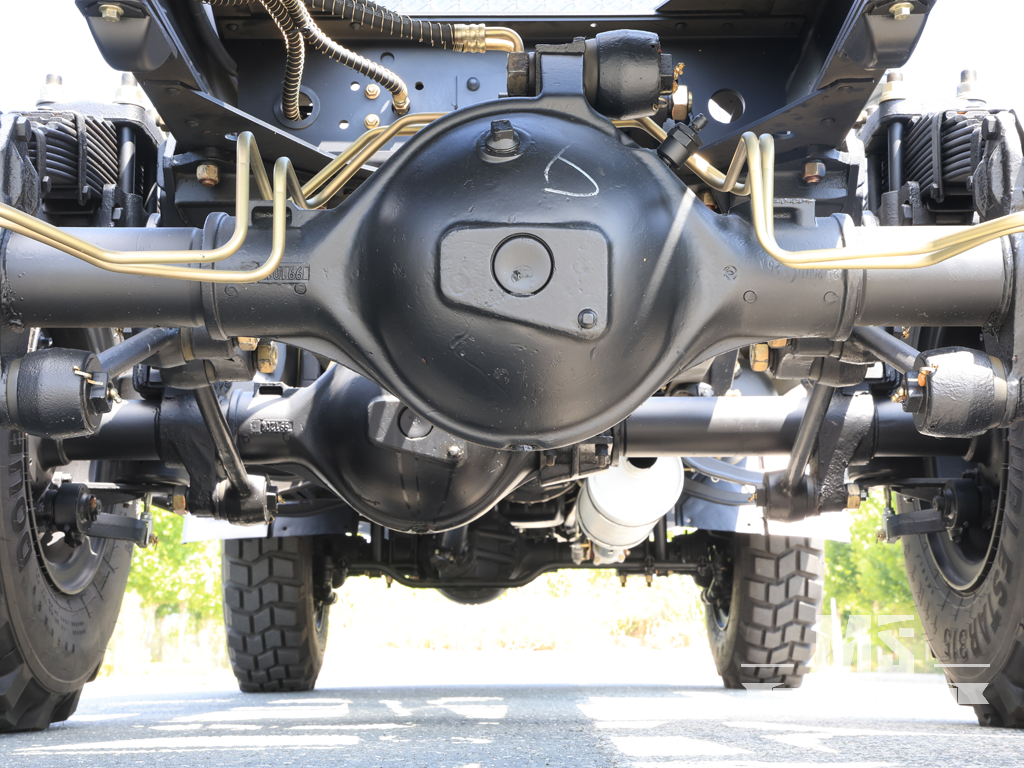

Vehicle Axle |
Dont Alxe 2.5T/Middle Alxe 2.5T/Rear Alxe 2.5T |

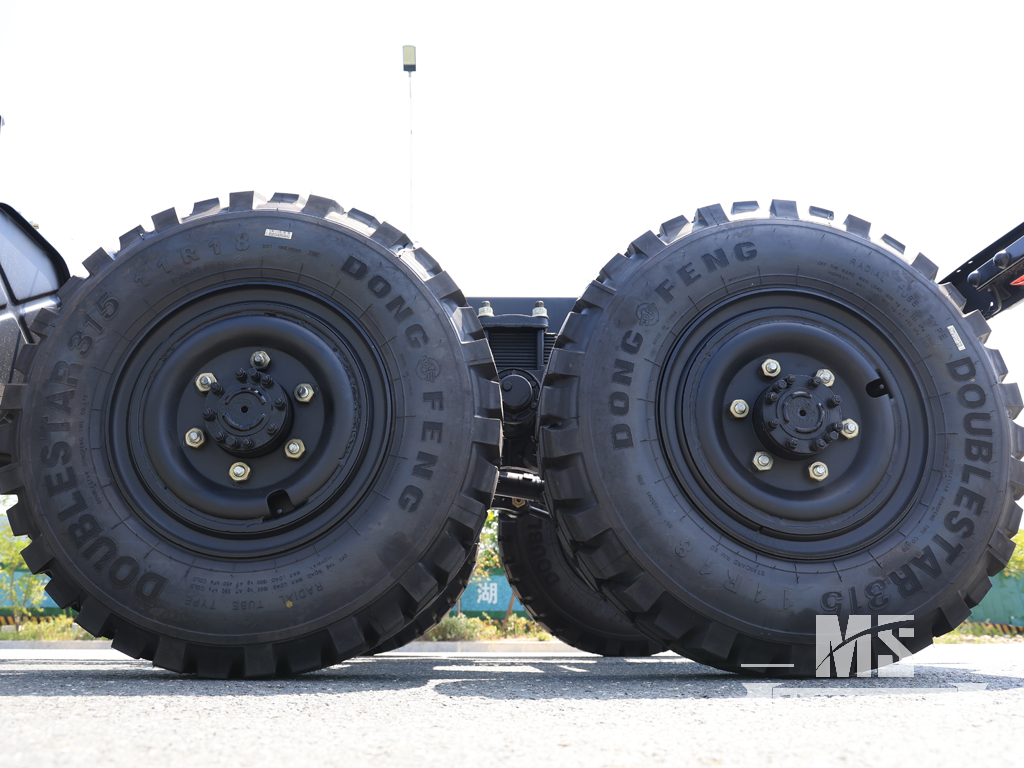

Tire |
11R18（6+1 Pieces） |
Electric circuit |
24V circuit system |
Leaf Spring |
10/12 |
Optional |
Water bucket, Oil drum, Fire extinguisher, Vehicle toolkit |
Detailed parameter |
Chassis Overall Dimension |
6260×2580×2930mm |
Modification Dimensions |
≥3550mm |
Wheelbase |
3190+1100mm |
Wheel track |
1744mm |
GVW |
7800kg |
Curb Weight |
4320kg |
Maximum Power |
125kw |
Number of members |
3 |
Maximum speed |
85km/h |
Approach Angle/departure Angle |
36°/46° |

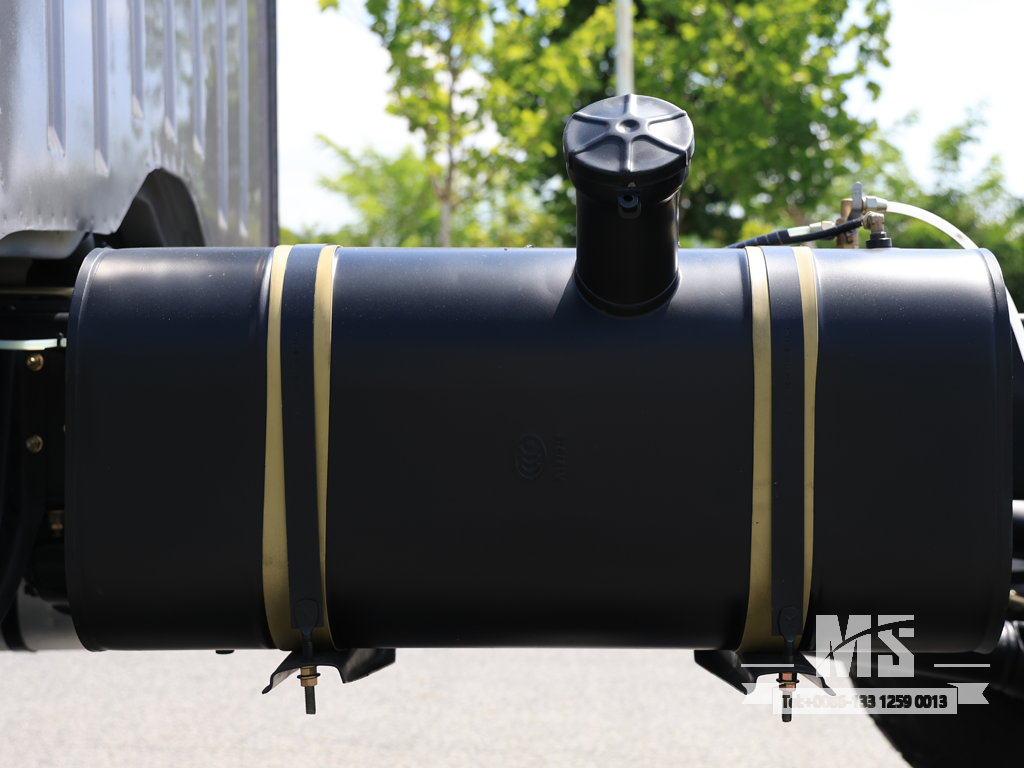

Tank volume |
145+70L |
Minimum ground clearance |
285mm |
Fording depth |
1100mm |
Obstracal height |
410mm |
Note: This configuration is for reference only, please refer to the actual car.
