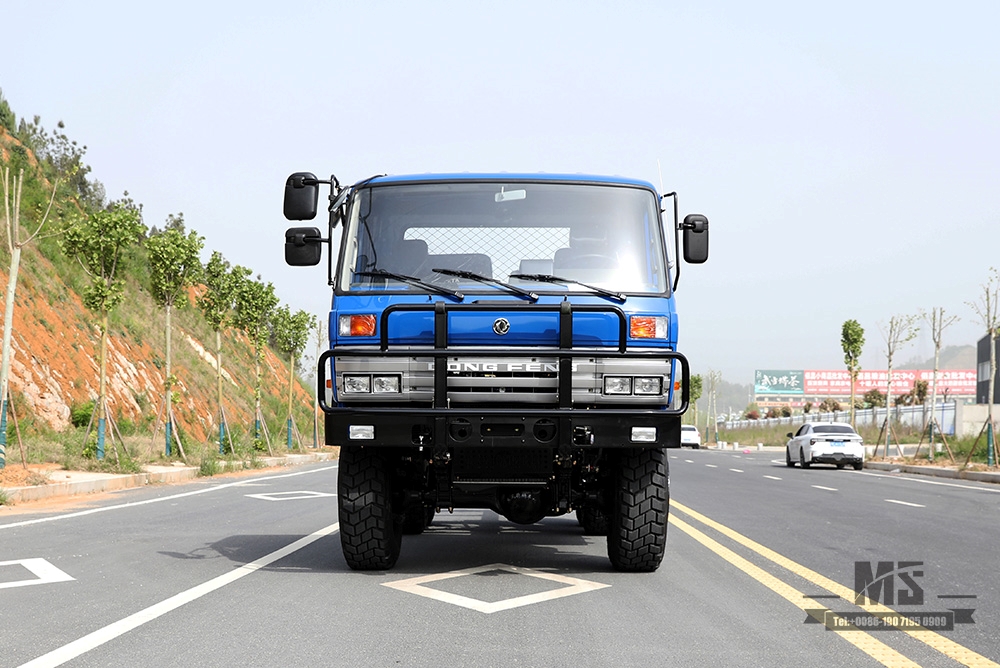

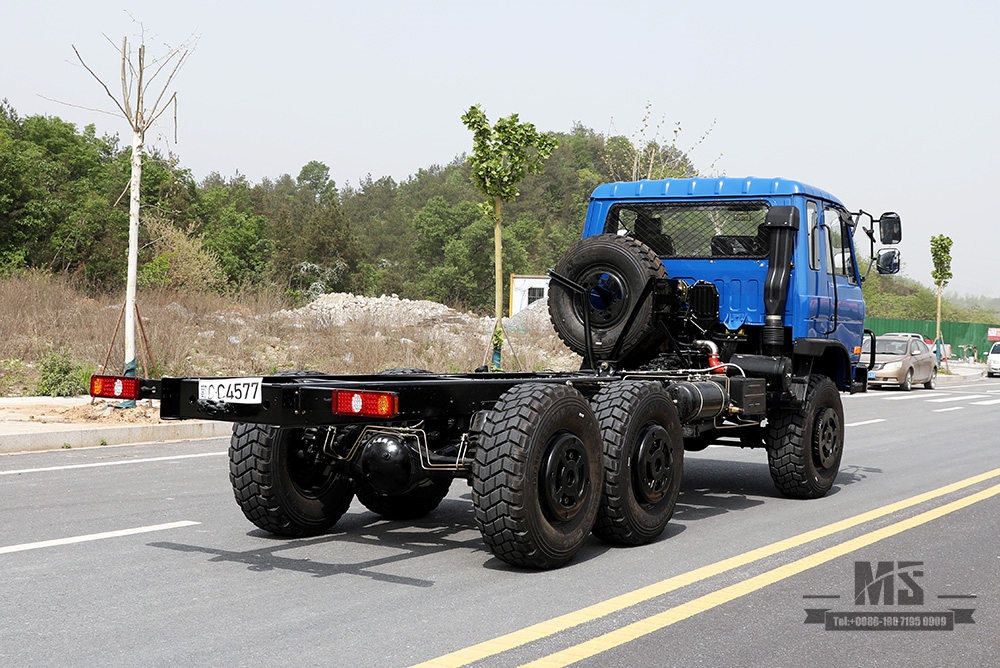

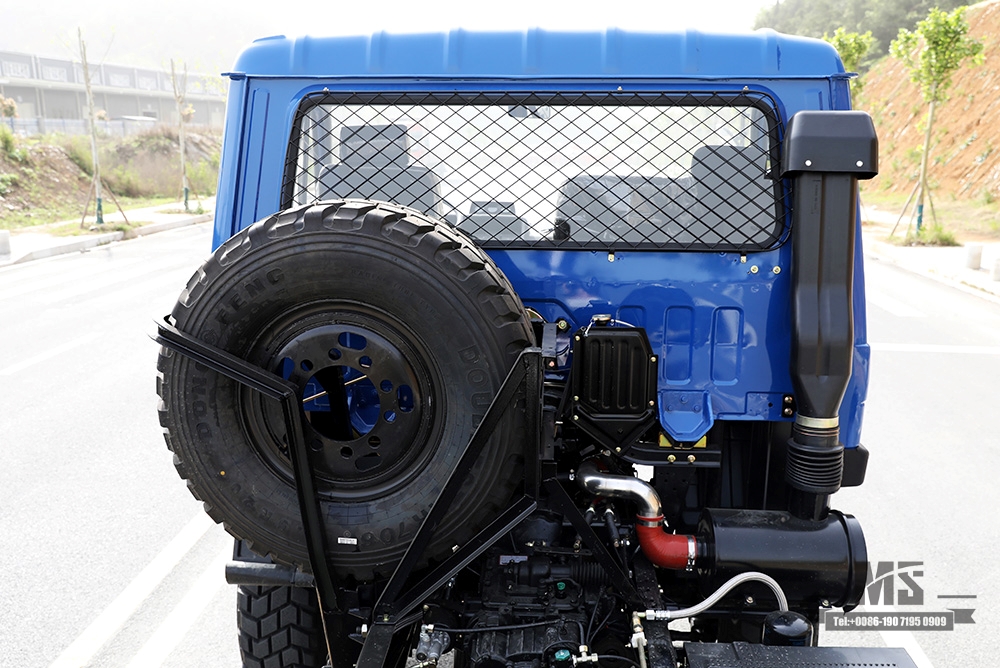

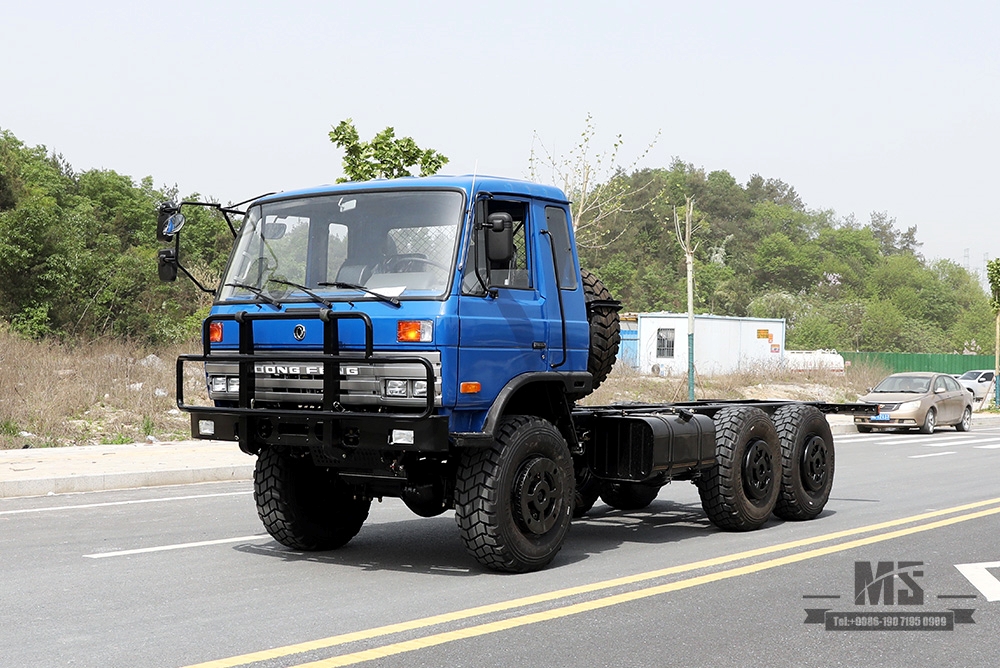

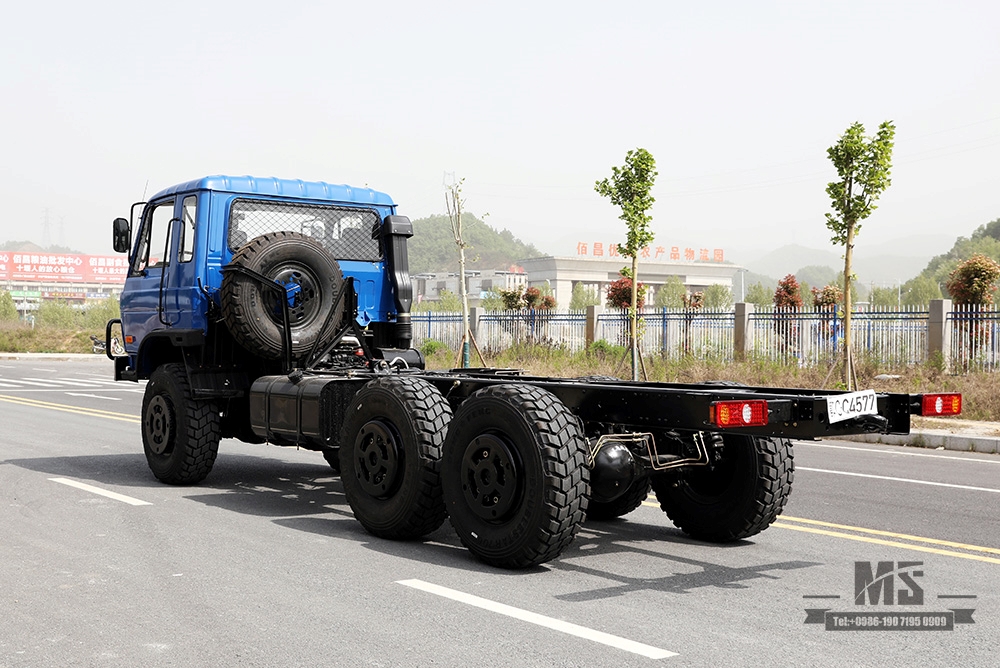

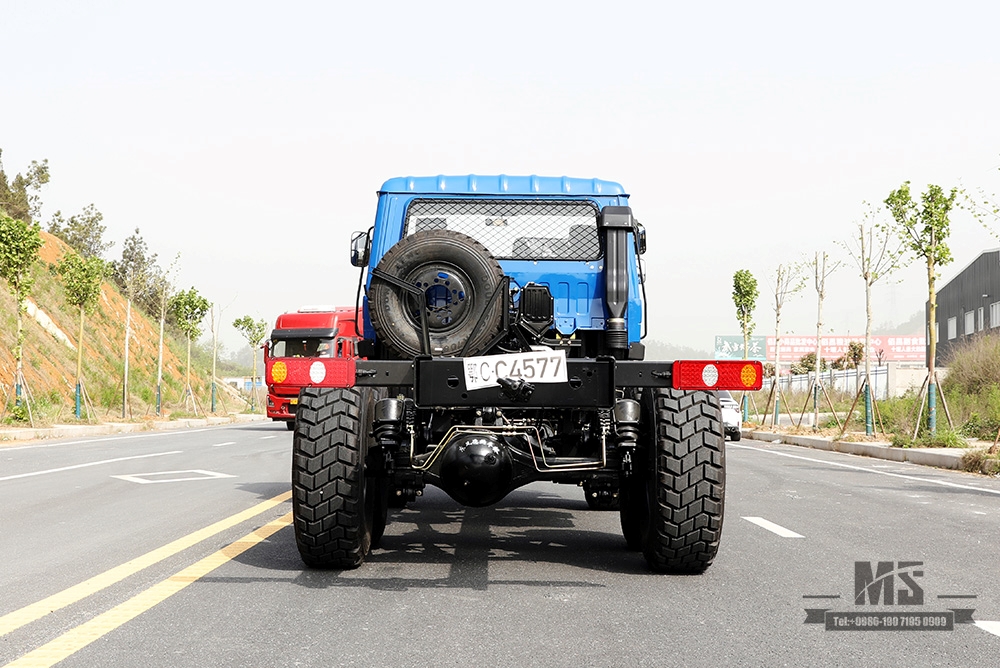

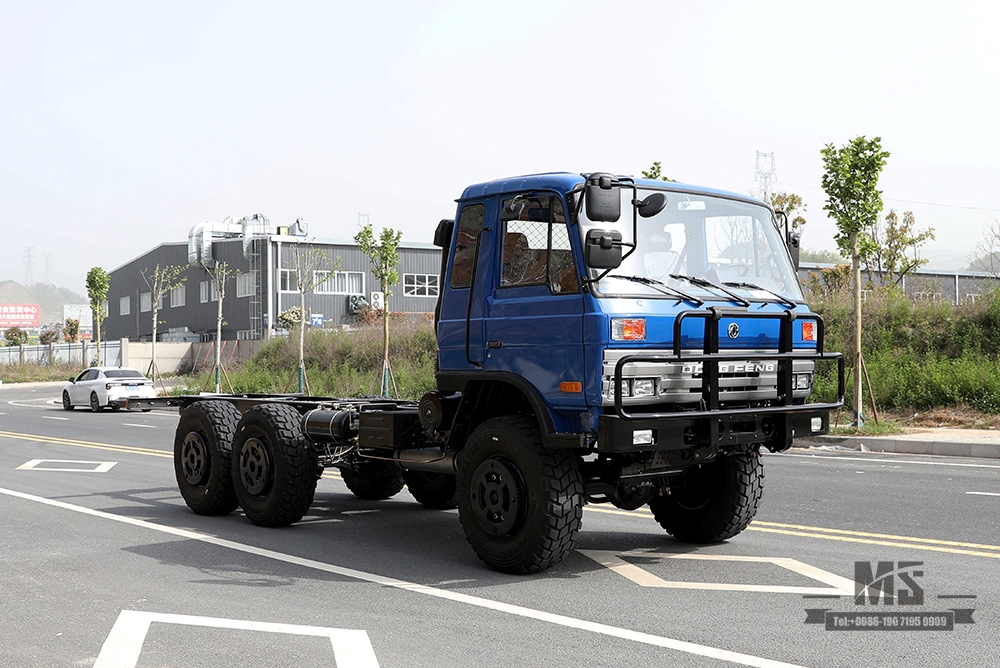

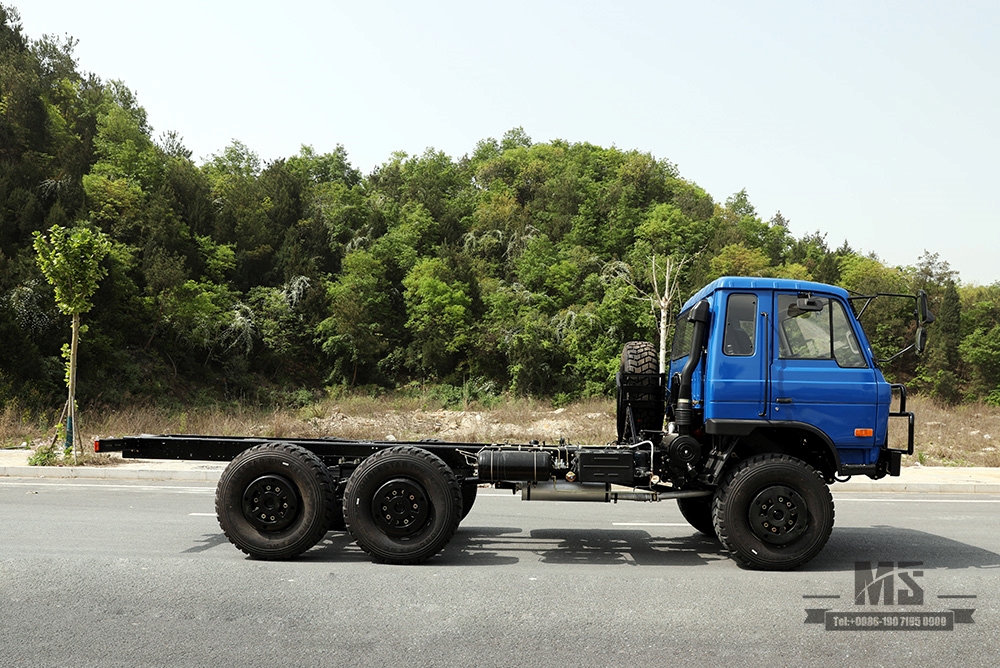

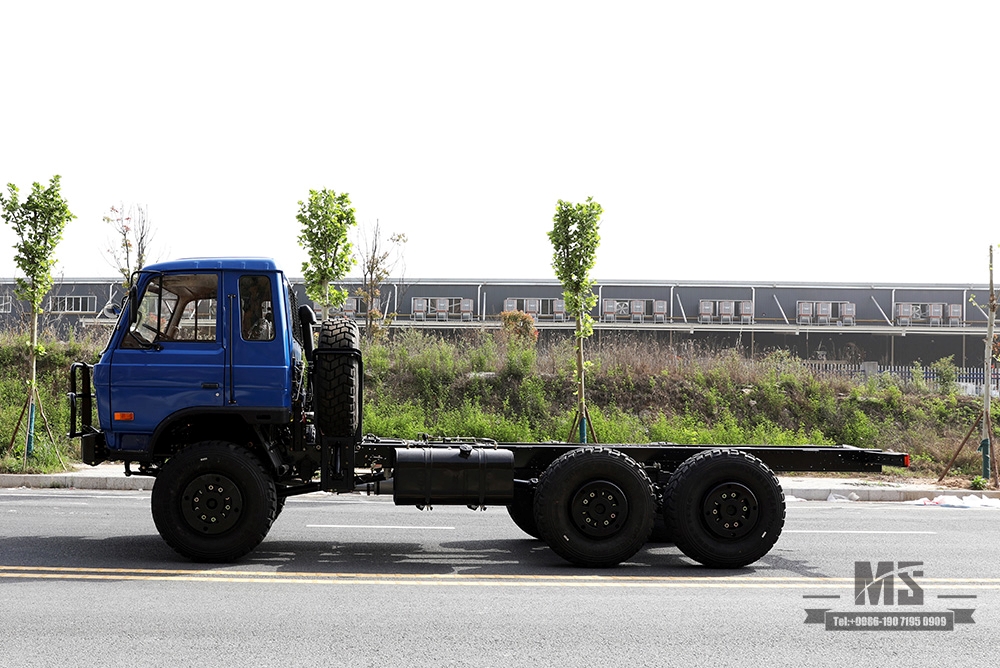

Dongfeng six-wheel-drive special off-road vehicle chassis according to EQ2102GJ upgraded, the engine, transmission, axles have been strengthened, can carry 10 tons (including the quality of the upper load), more power, can be used for a variety of conversion manufacturers to do a variety of modifications
Basic configuration | |
Engine | Dongfeng Cummins B210 33 |
Drive type | 6*6 |
Gearbox | FAST Eight-speed Gearbox |
Transfer box | Time Sharing Six Drive With high and low gears |

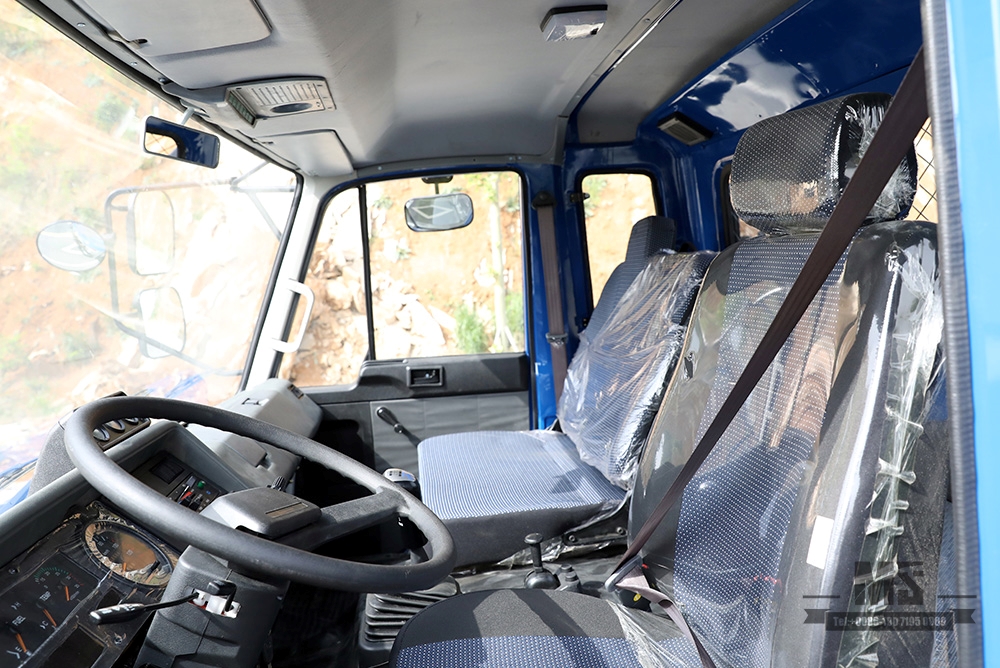

Driver Cab | Dongfeng 153 Flathead Row a hallf Cab |
Vehicle Frame | 860×232mm |
Axle | 5T/5T/5T |
Vehicle Tire | 12.5R20 (6+1pcs) |

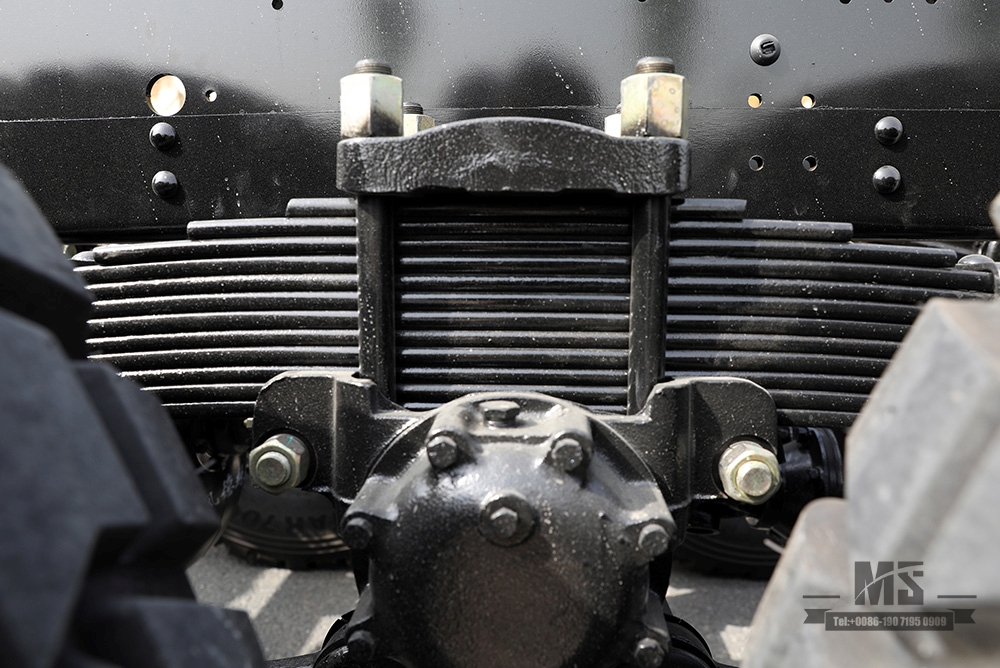

Vehicle Suspension | Steel Plate Springs 10/12pcs |
Other | With towing hitch, electrical connector, air brake connector, cold start, crash bar, rear window guards |
Optional Items | Heating and air conditioning, right-hand drive cab, back-up camera, winch, wading heighteners |
Electric Circuit | 24V circuit system |
Detailed parameter | |
Overall Vehicle Dimension | 7870×2580×2930mm |
Modification Dimension | ≥5100mm |
Wheelbase | 3540+1220mm |
Wheel Track | 1910/1880/1880mm |
GVW | 15000kg |
Curb Weight | 5700kg |
Number of passengers | 3 |
Engine Displacement | 5900ml |
Maximum power | 155kw |
Maximum speed | 87km/h |
Approach/departure Angle | 36°/26° |
Oil Tank Volume | 300L |
Minimum ground clearance | 330mm |
Upper Frame Plane Off the Ground | 1130mm |
Perpendicular Obstacle Crossing Height | 510mm |
Wading Depth | 640mm |
Maximum Climbing Grade | 60% |
Note: This configuration is for reference only, please refer to the actual car.
