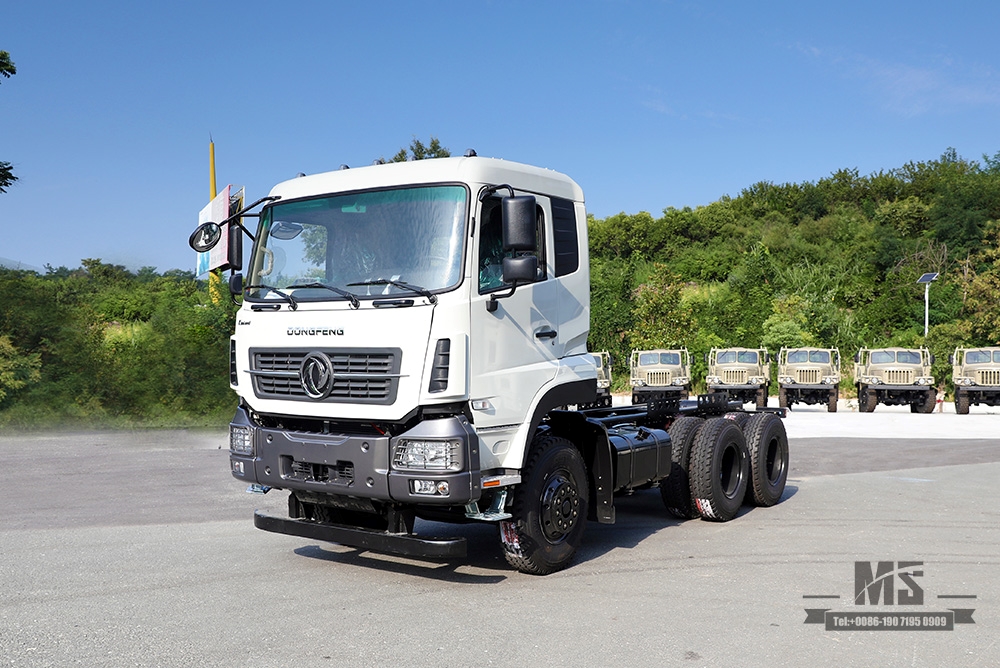

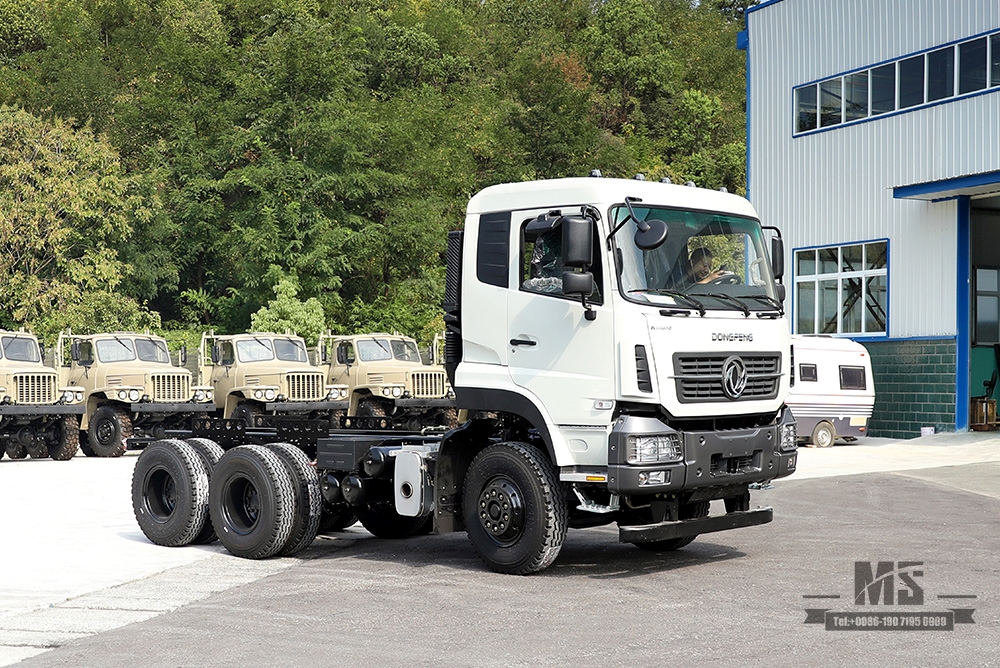

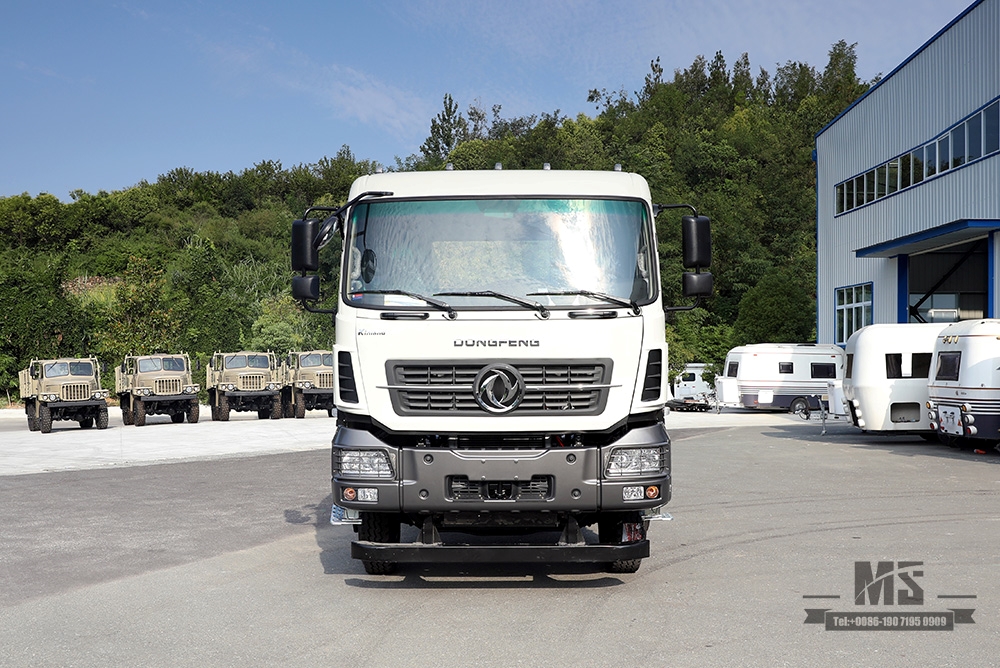

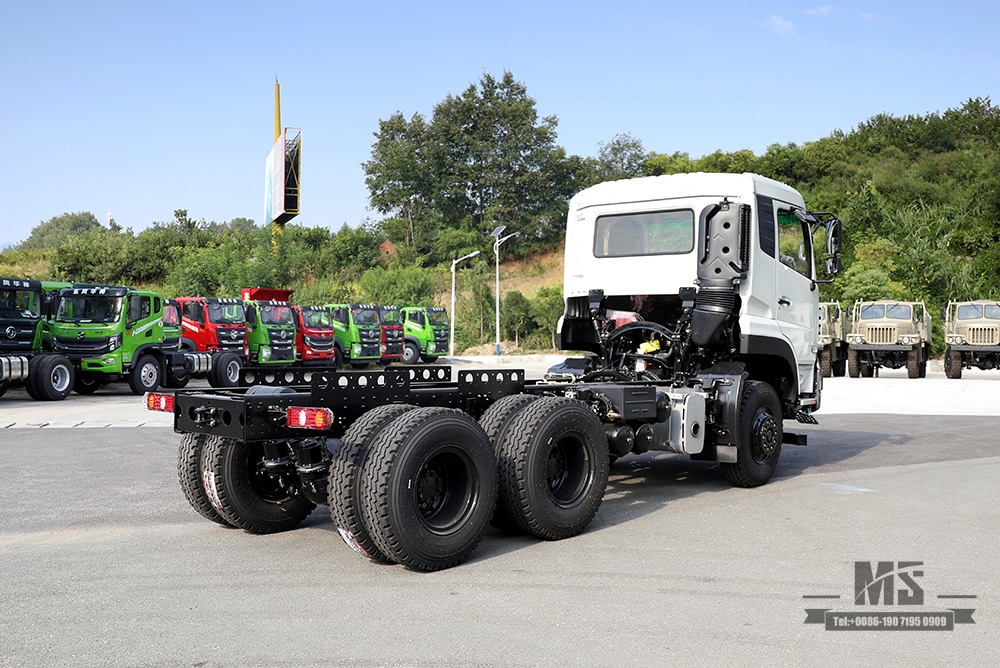

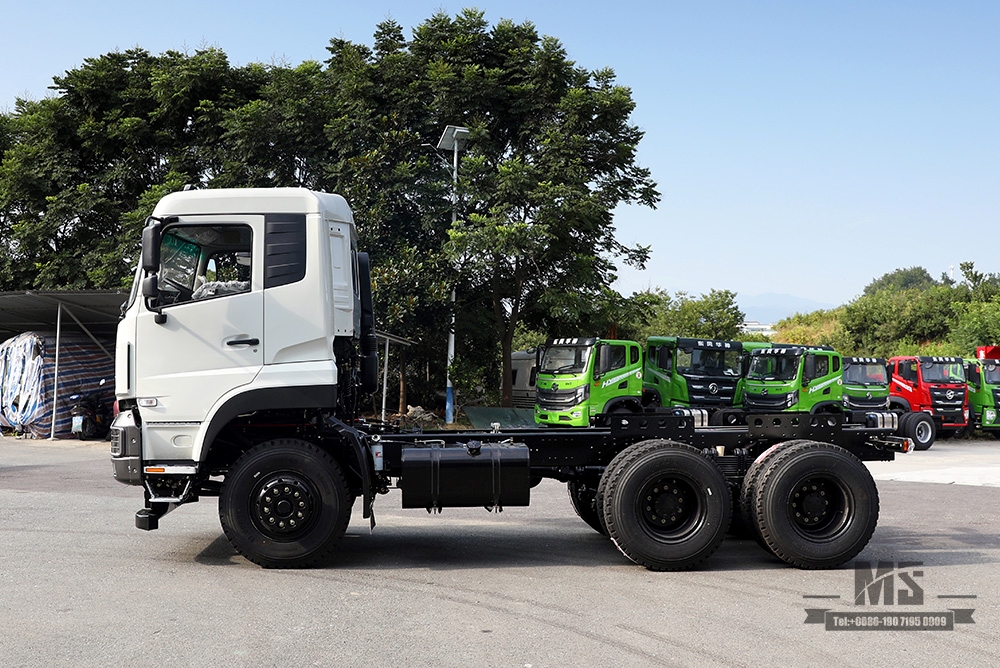

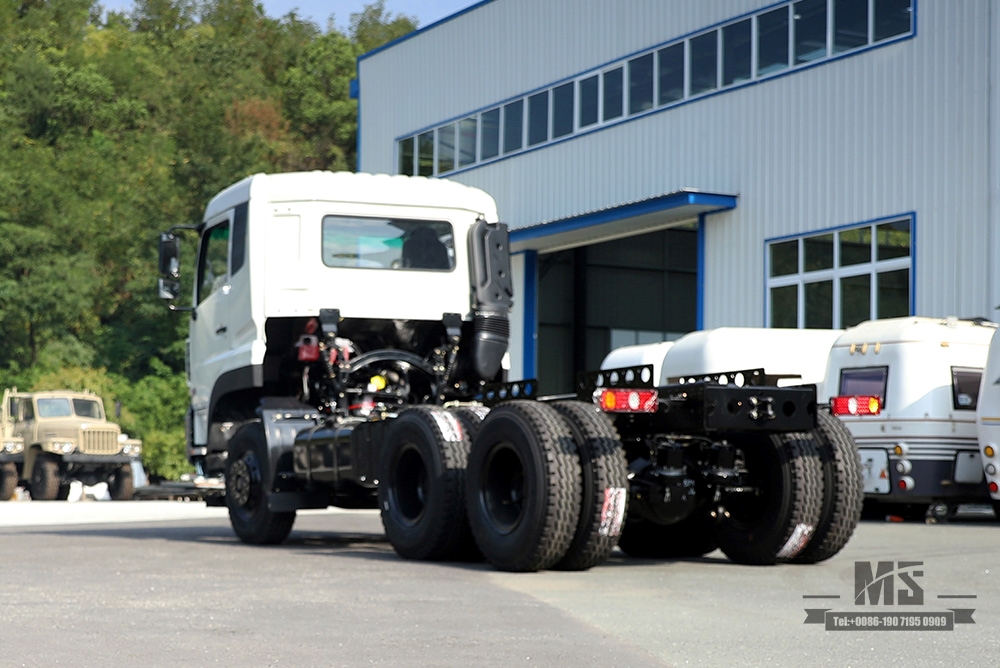

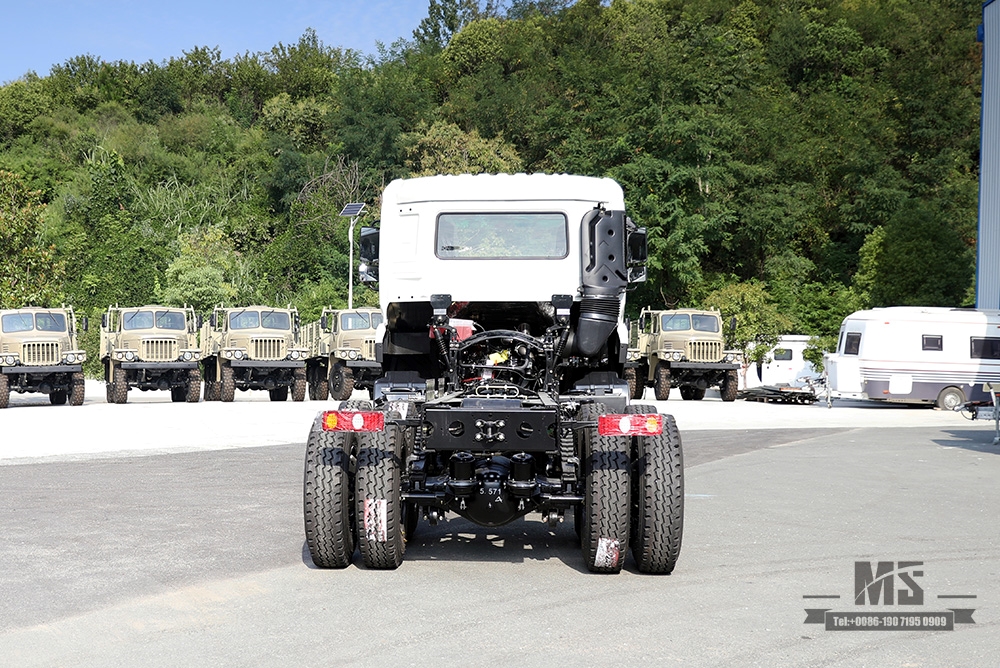

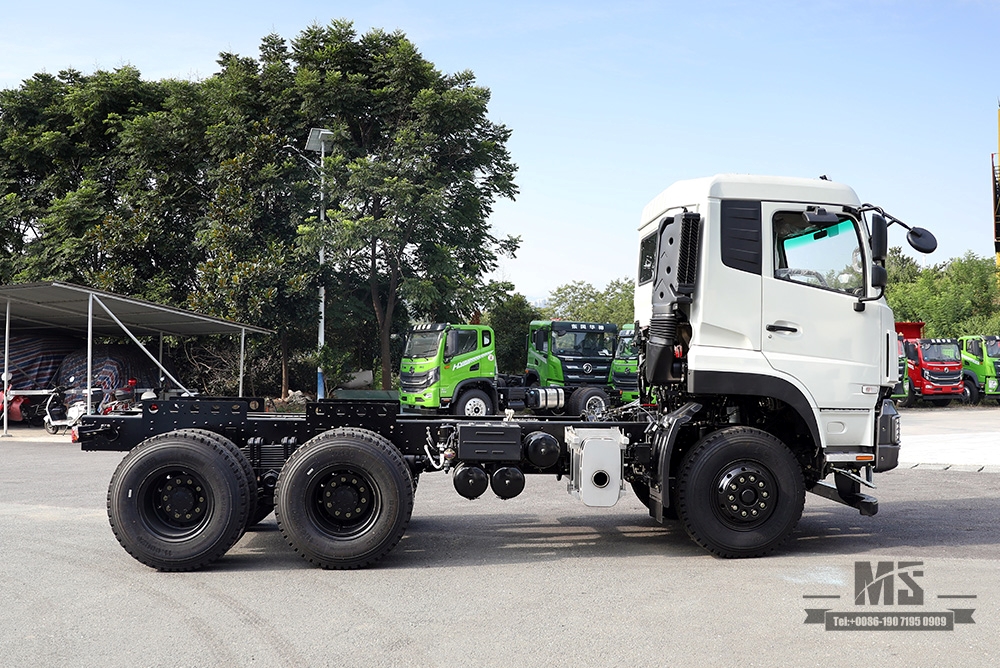

Dongfeng 6*4 special vehicle chassis uses a 280-horsepower engine and has a total mass of 25 tons. It is suitable for conversion into heavy-duty special vehicles such as dump trucks and vans.
Basic configuration | |
Drive type | 6*4 |
Engine | Cummins C280 33 |
Gearbox | Manual Eight-speed gearbox |
Transfer box | None |

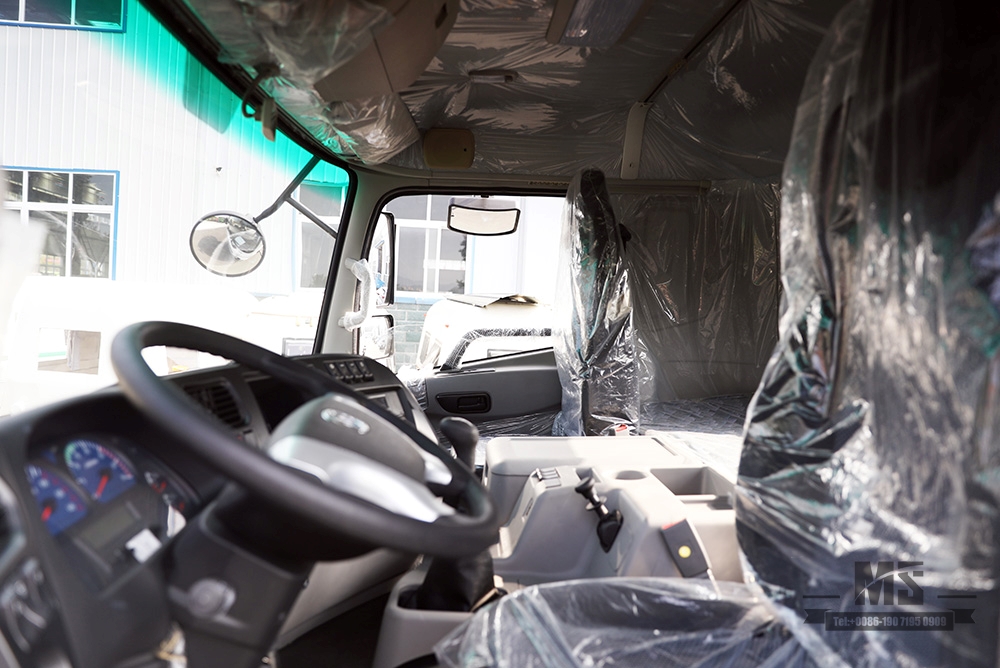

Driver Cab | Dongfeng Flat Head One and a Half Row |
Vehicle Axle | 5T/10T/10T |

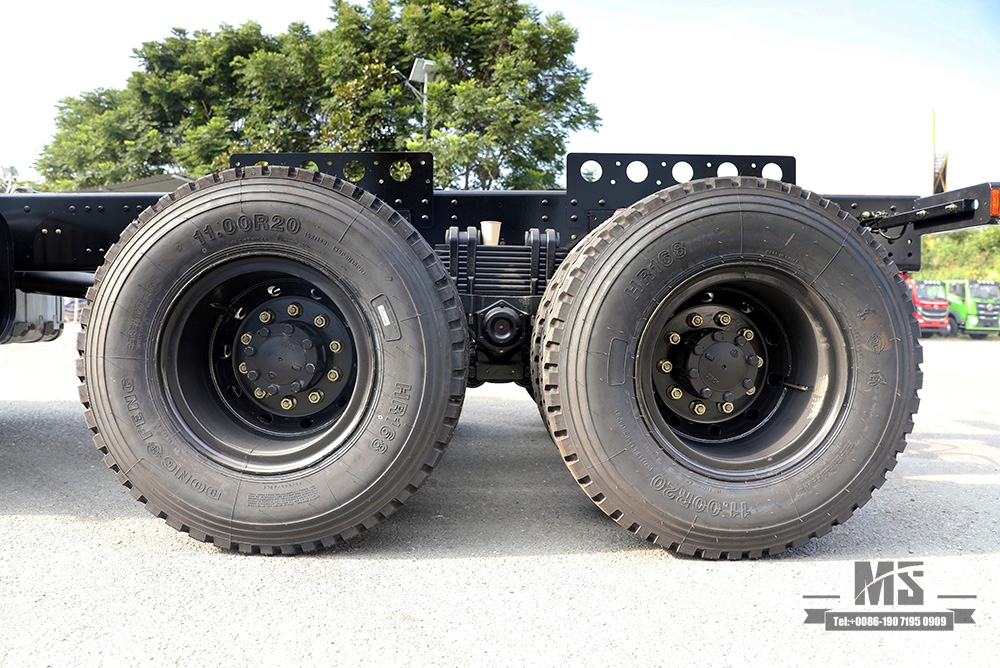

Tire | 11.00R20(10+1) |
Vehicle Frame | 860*300mm, Thickness 8+6mm |
Vehicle Suspension | Steel Plate Spring 9/10pcs |
Detailed parameter | |
Overall Dimension | 7795*2390*3280mm |
Modifaication dimension | ≥5000mm |
Wheelbase | 3250+1250mm |
Tread | 1990/1926/1926mm |
GVW | 25000kg |
Displacement | 8.3L |
Rated Power | 206kw |
Maximum speed | 85km/h |
Front/Rear Overhang | 1458mm/1837mm |
Approach Angle/departure Angle | 13°/17° |
Tank volume | 300L |
Minimum ground clearance | 280mm |
Obstacle Crossing height | 460mm |
Wading depth | 600mm |
Upper Frame Plane Off the Ground | 1160mm |
Note: This configuration is for reference only, please refer to the actual car.
For 50% of our shipment, the vehicle will be transported by sea, to all main continents such as Africa, South America, Middle East, Oceania and Southeast Asia, either by container or RoRo/Bulk shipment. For inland neighborhood countries of China, such as Russia, Mongolia, Kazakhstan, Myanmar, Vietnam etc. , we can transport vehicles by land.
For light spare parts in urgent need. We can send it by international courier service, such as DHL, TNT, UPS, or Fedex.
On T/T term, 50% down payment is required in advance,and the 50% balance shall be settled before shipment or when products are out of the factory. T/T payment can be negotiated.
Our professional team will provide you with one-stop customs clearance service. We can provide EXW, FOB, FCA payment terms according to customers’ need.
