Basic configuration |
|
Engine |
Dongfeng Cummins B170 33 |
Drive type | 6*6 |
Gearbox |
Manual Six-speed Gearbox |
Transfer box |
Mechanical high and low gears |

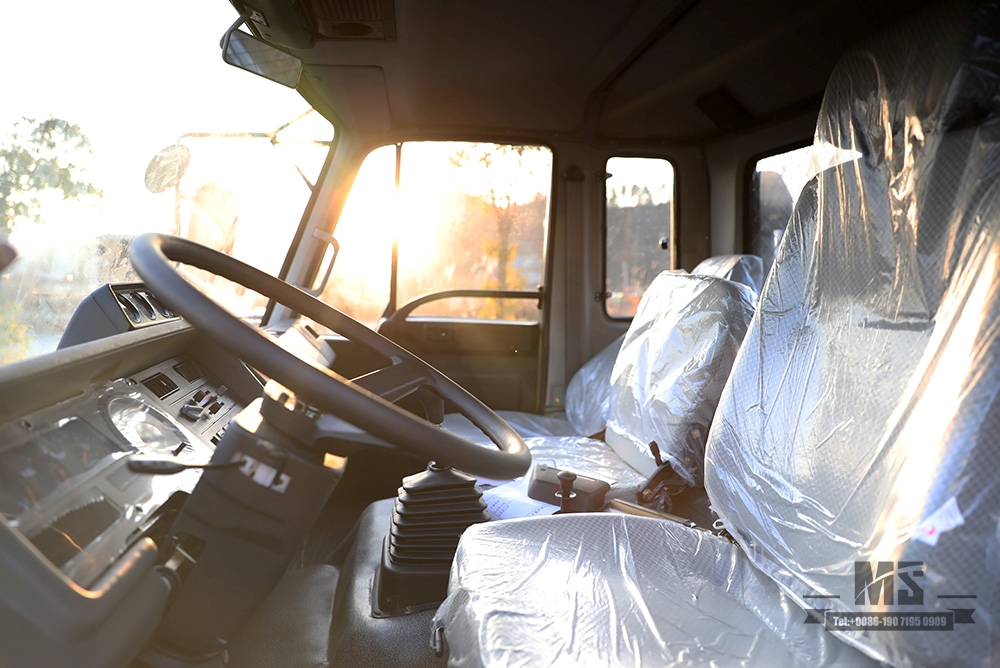

Driver Cab |
Dongfeng 153 Flathead Row a hallf Cab |
Axle |
3.5T/3.5T/3.5T |
Tire |
12.5R20 (6+1pcs) |
Vehicle Suspension |

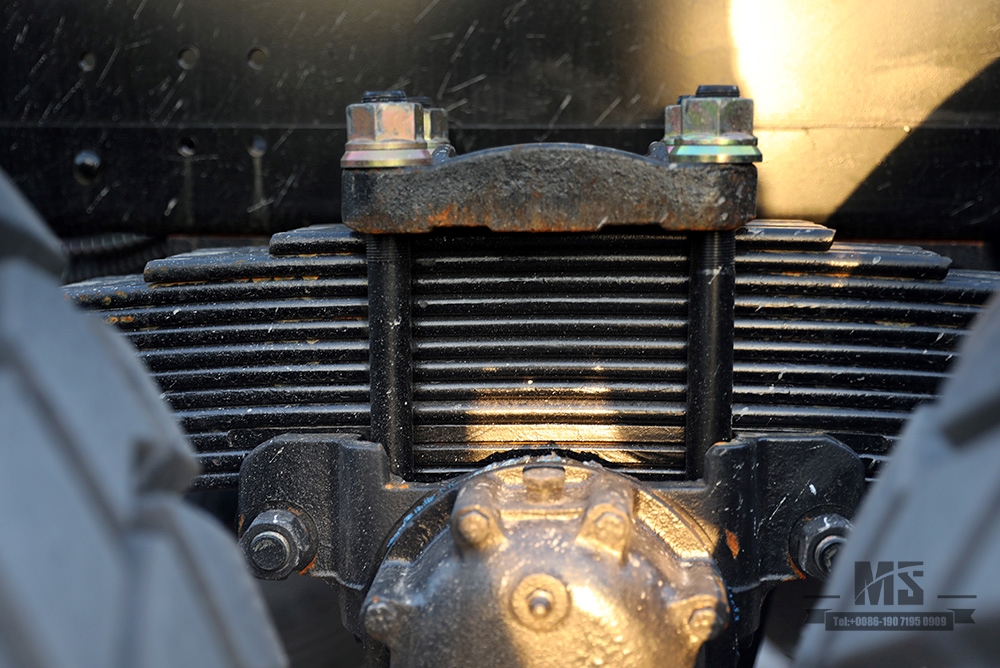

Steel Plate Springs 9/12pcs |
Detailed parameter |
|
Chassis Dimension | 7340*2183*3025mm |
Modification Dimension | 4650mm |
Wheelbase | 3500+1235mm |
Wheel Track |
1920/1876/1885mm |
GVW |
10435KG |
Curb Weight | 6200kg |
Engine Displacement |
5900ml |
Maximum power | 155kw |
Maximum speed | 87km/h |
Engine Torque | 700N.m |
Front/Rear Overhang |
1220/1440mm |
Approach Angle/departure Angle |
35°/34° |
Minimum ground clearance |
315mm |
Maximum Obstacle Crossing height | 480mm |
Wading Depth | 520mm |
Maximum Climbing Grade | 60% |
Oil Tank volume | 140L |
Note: This configuration is for reference only, please refer to the actual car.
For 50% of our shipment, the vehicle will be transported by sea, to all main continents such as Africa, South America, Middle East, Oceania and Southeast Asia, either by container or RoRo/Bulk shipment. For inland neighborhood countries of China, such as Russia, Mongolia, Kazakhstan, Myanmar, Vietnam etc. , we can transport vehicles by land.
For light spare parts in urgent need. We can send it by international courier service, such as DHL, TNT, UPS, or Fedex.
On T/T term, 50% down payment is required in advance,and the 50% balance shall be settled before shipment or when products are out of the factory. T/T payment can be negotiated.
Our professional team will provide you with one-stop customs clearance service. We can provide EXW, FOB, FCA payment terms according to customers’ need.
