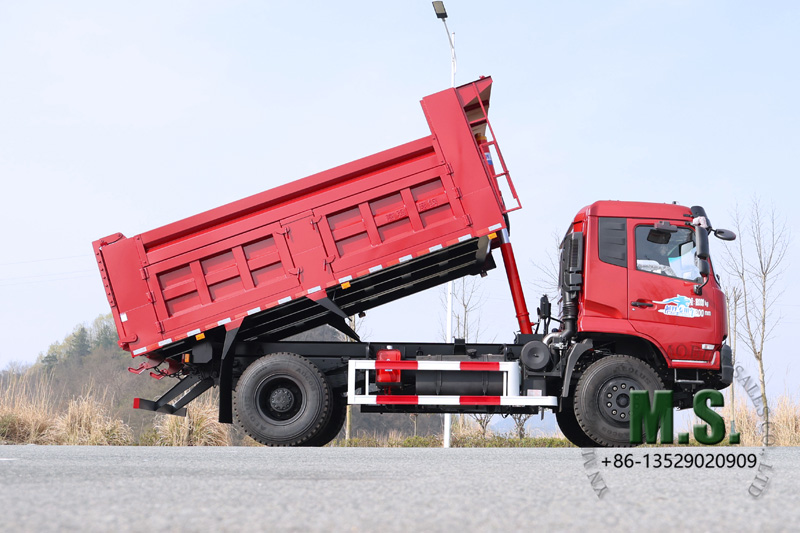

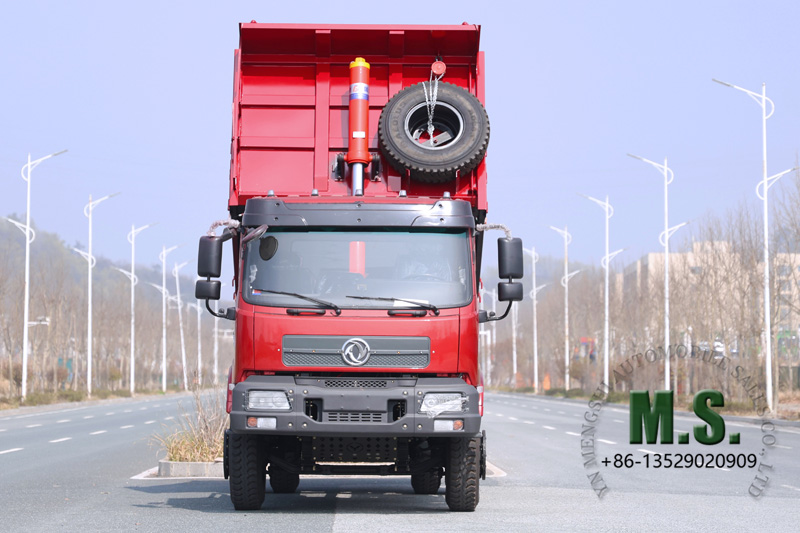

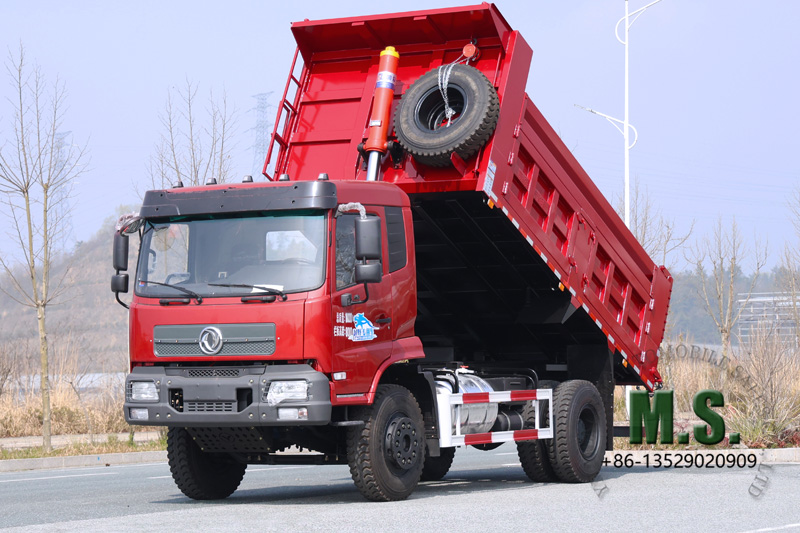

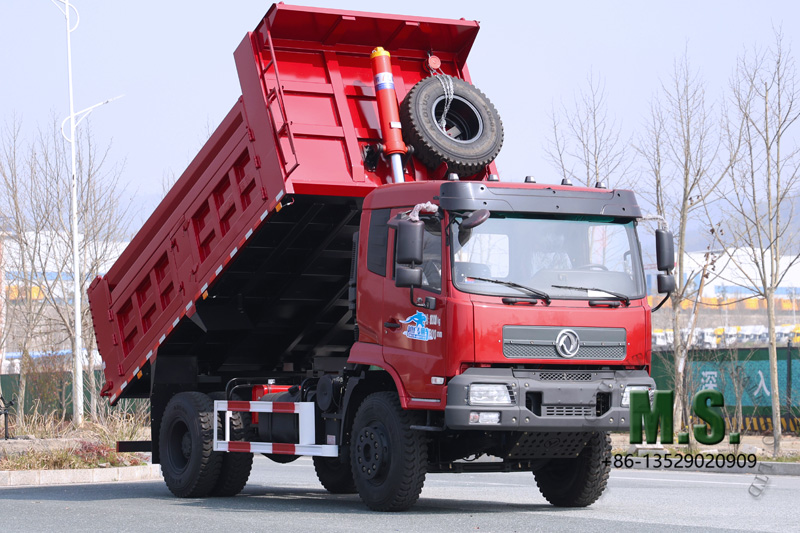

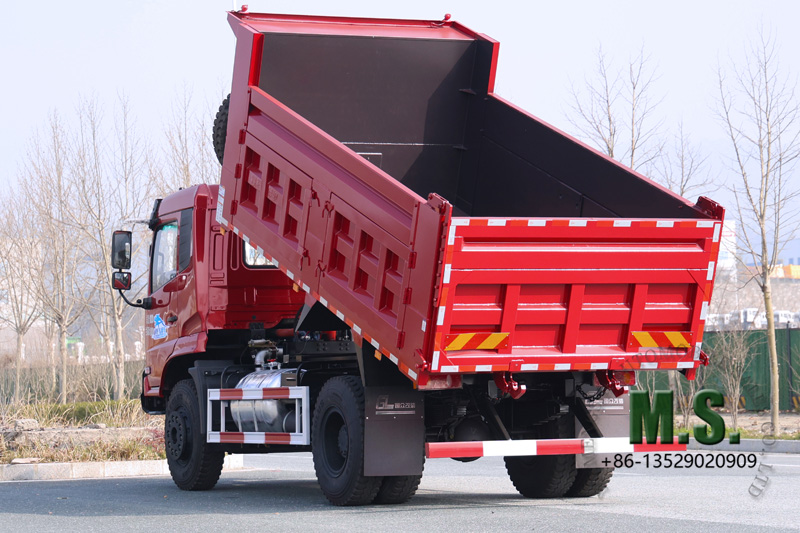

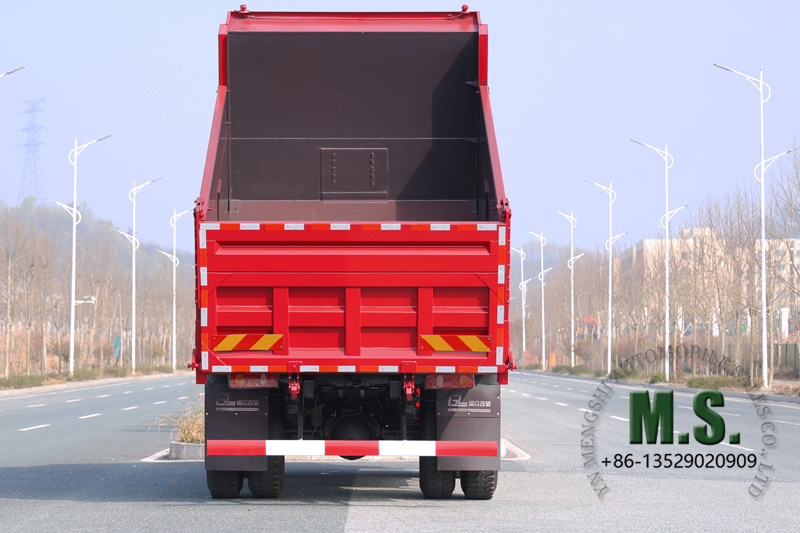

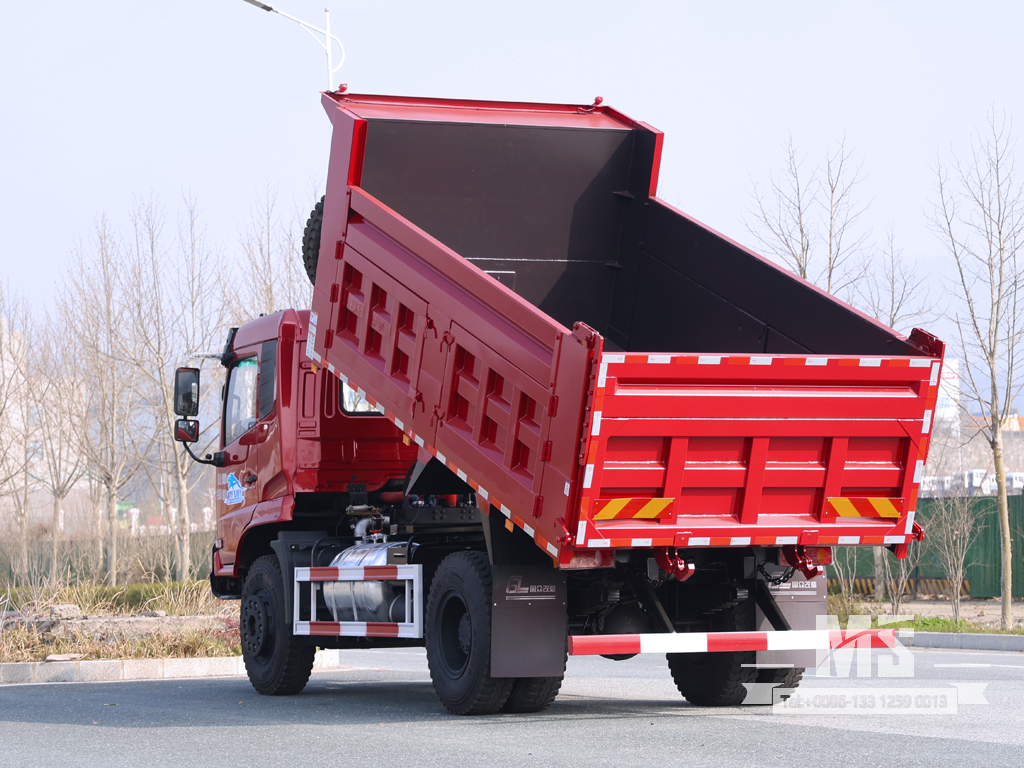

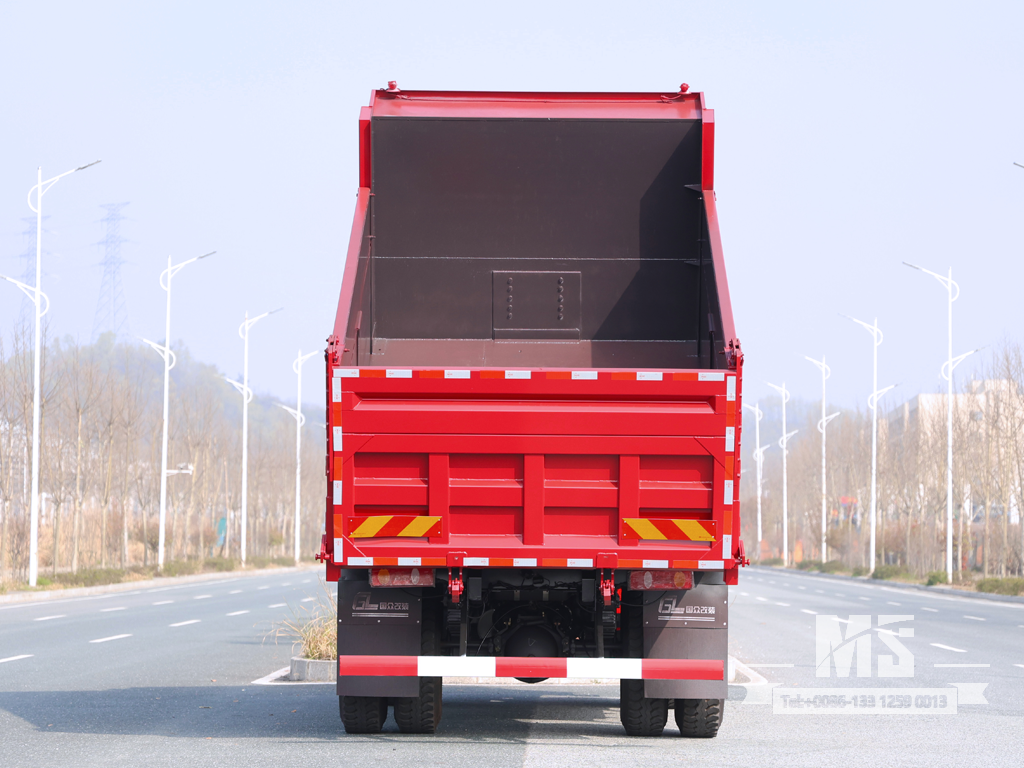

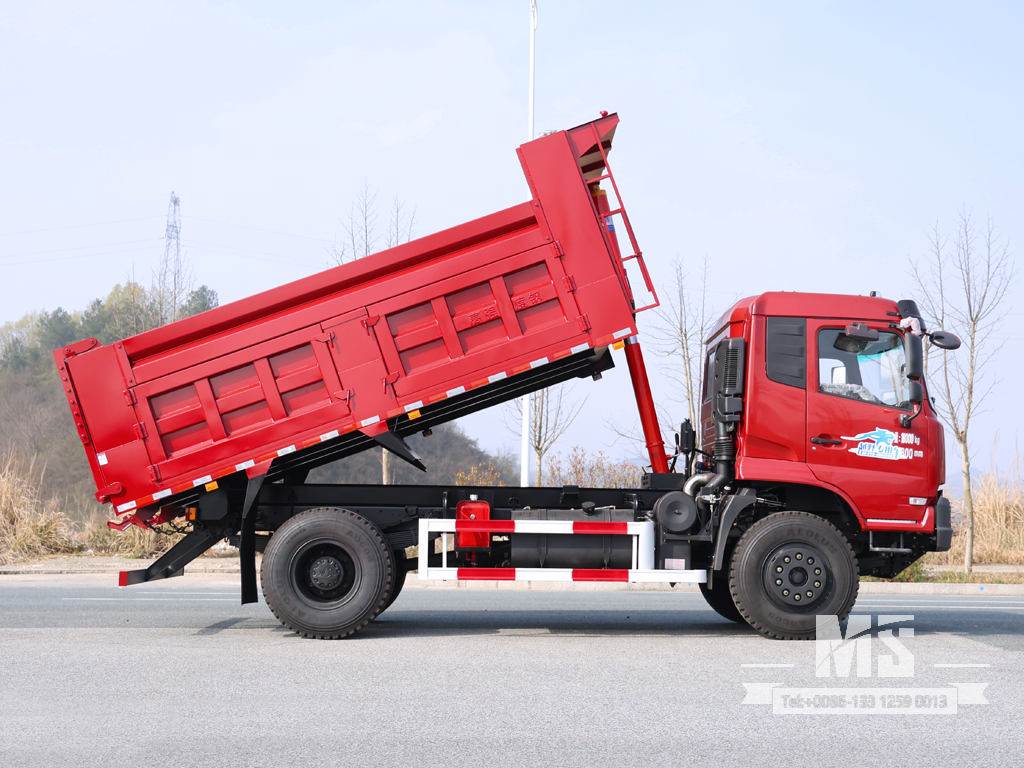

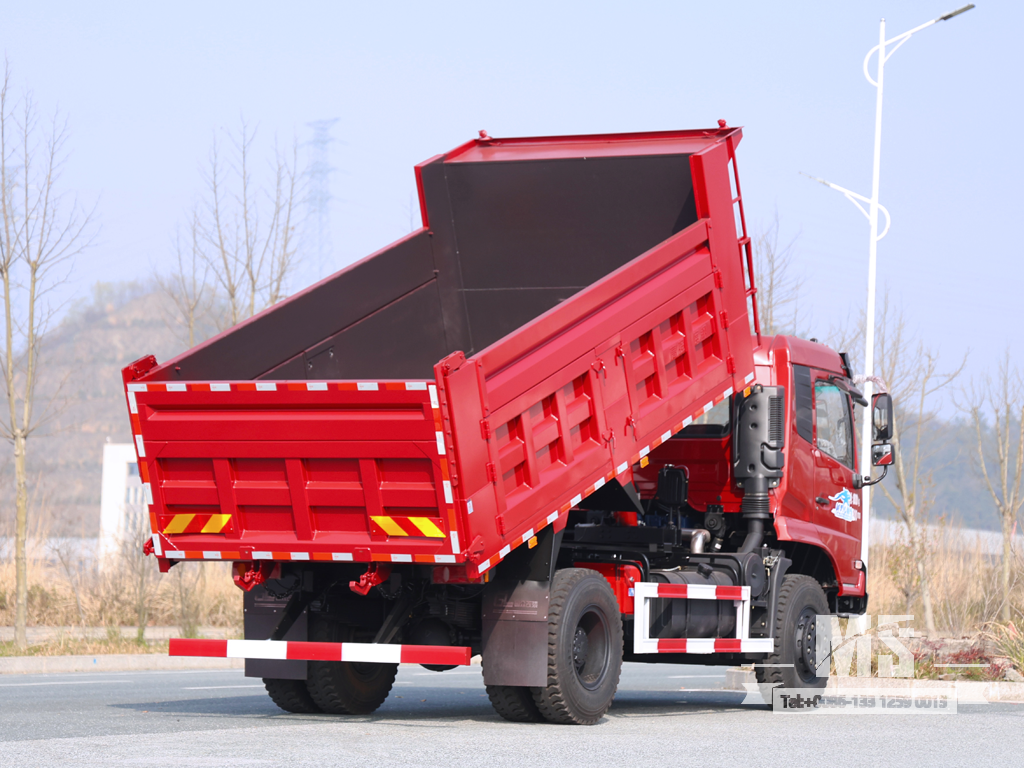

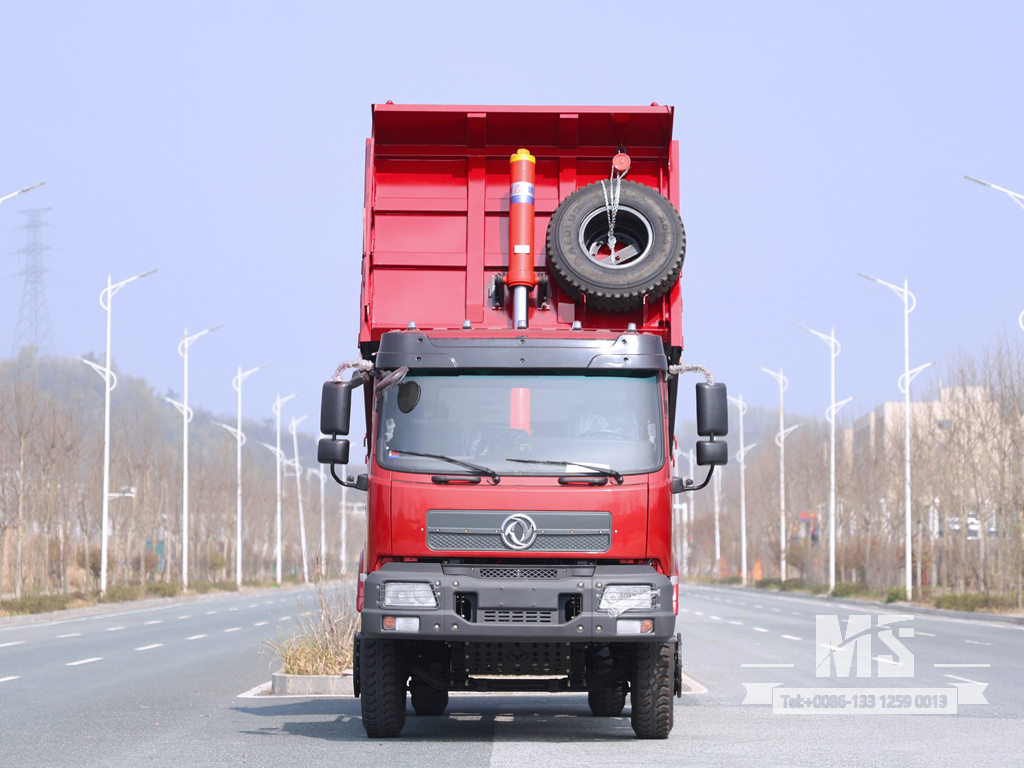

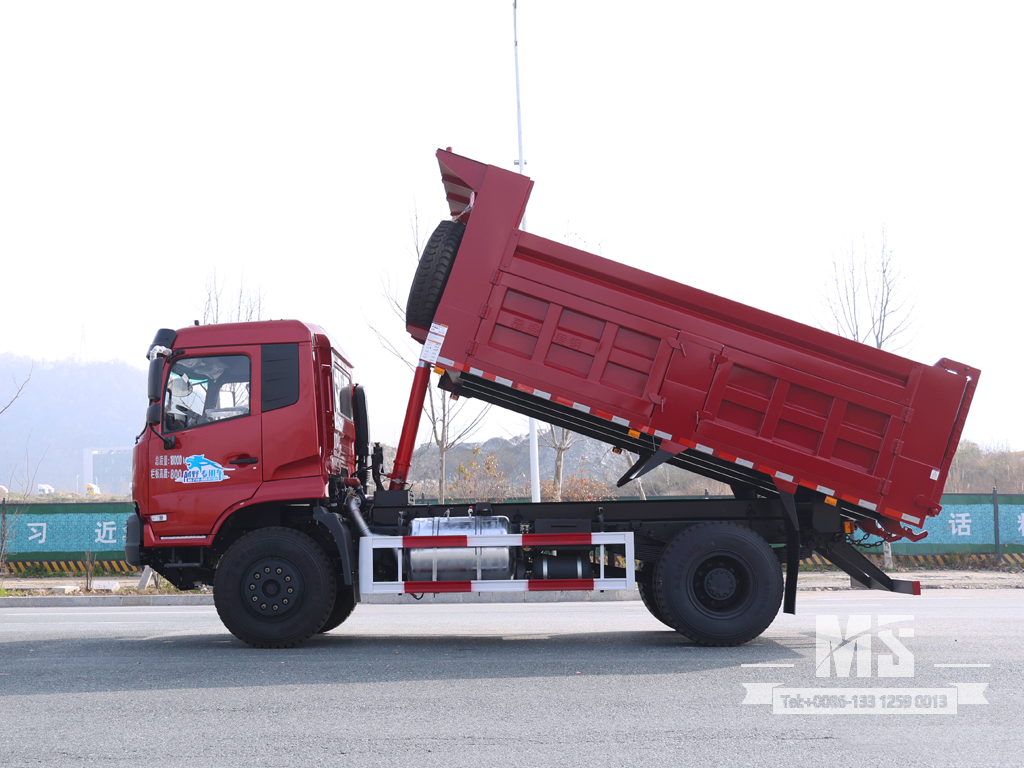

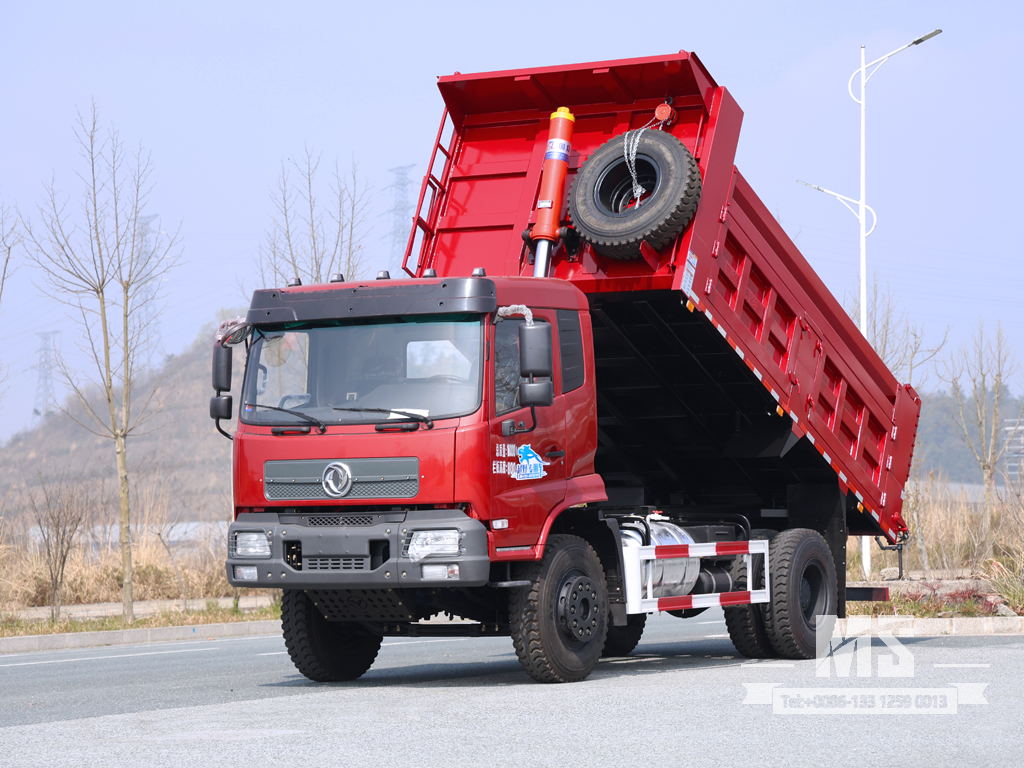

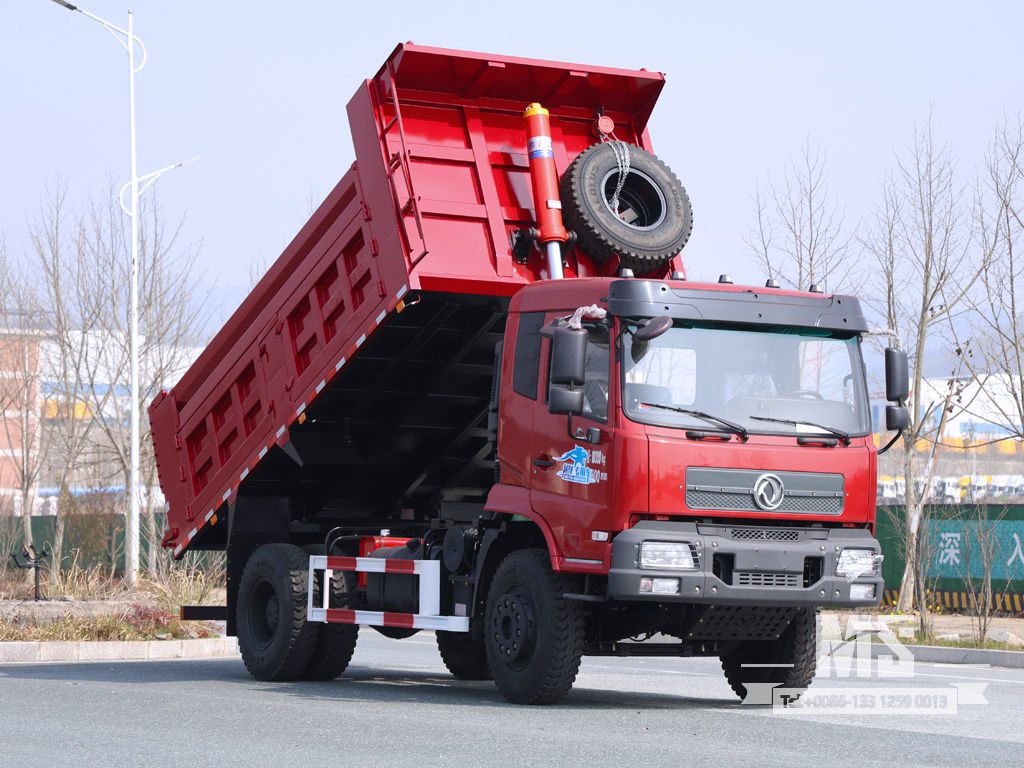

Dongfeng 4×2dump truck
Basic configuration |
Drive type | 4*2 |
Engine | WeChai 210HP |
Transmission | Shou chi Manual 10-speed |
Driver Cab | Dongfeng Flat-head half row |

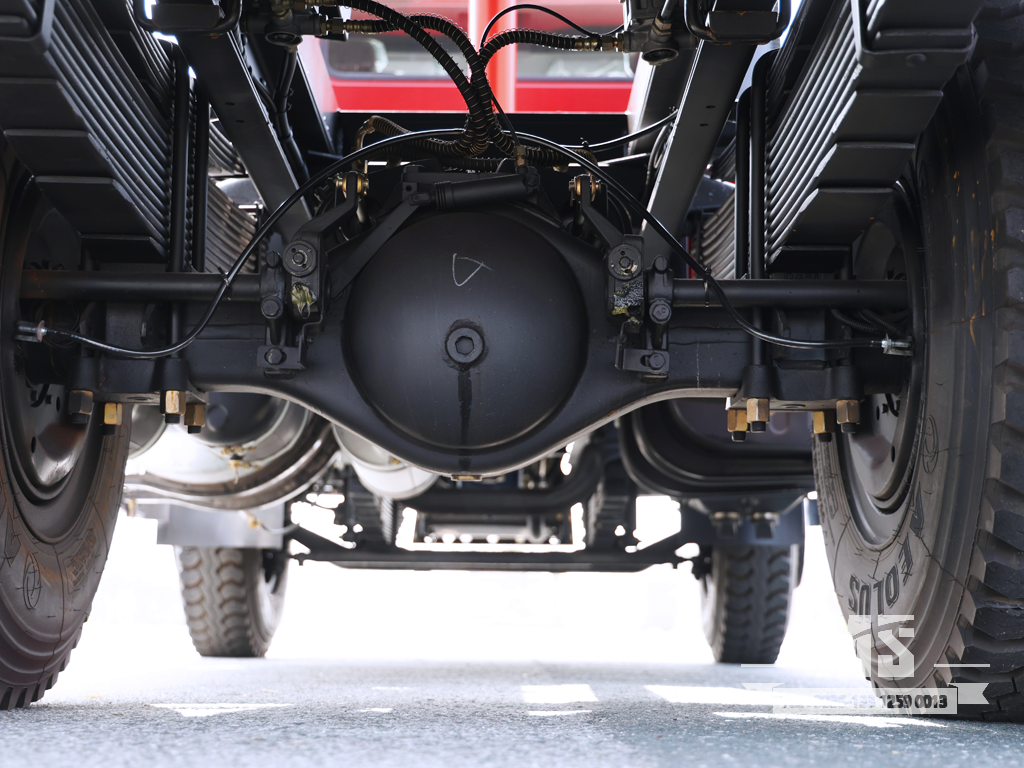

Vehicle Axle |
Dont Alxe 5T/Rear Alxe 13T
|

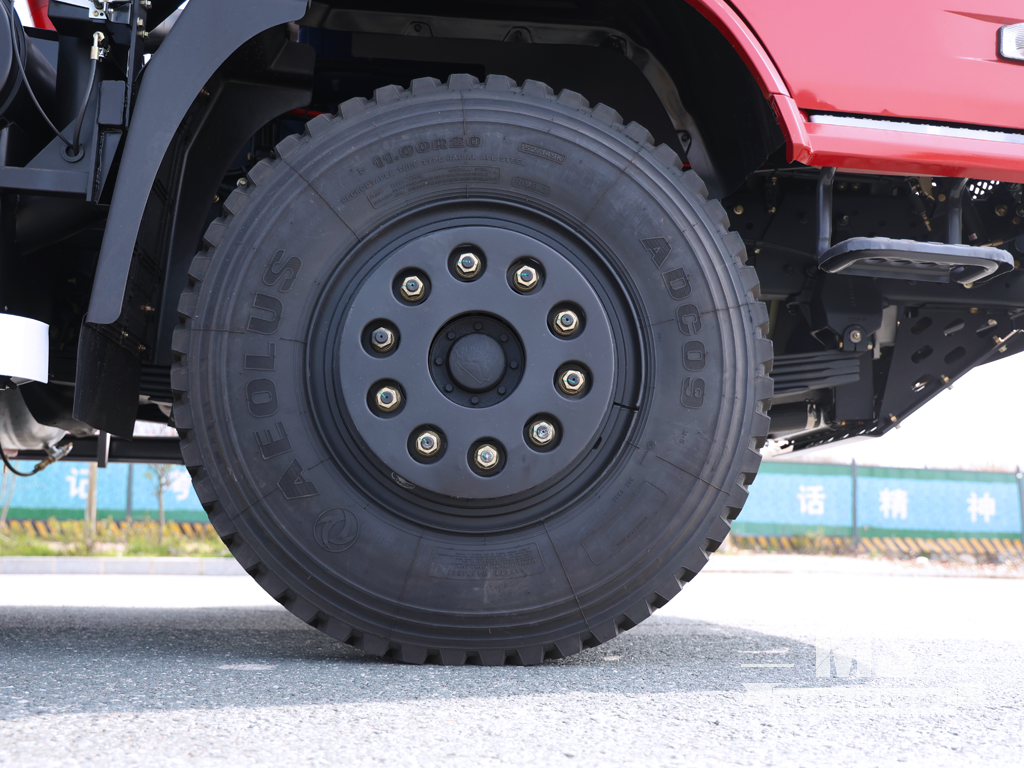

Tire | 11.00R20（6+1 Pieces） |
Suspension | Steel plate springs 12/12+6 |
Detailed parameter |
Overall Dimension | 7250×2580×3120mm |
Cargobox Dimensions | 4400*2300*800+400mm |
Wheelbase | 3950mm |
Wheel track | 1955/1815mm |
GVW | 18000kg |
Curb Weight | 9100kg |
Maximum Power | 155kw |
Engine Displacement | 6230mL |
Reatd Power | 125kw |
Maximum speed | 85km/h |
Approach Angle/departure Angle | 24°/17° |

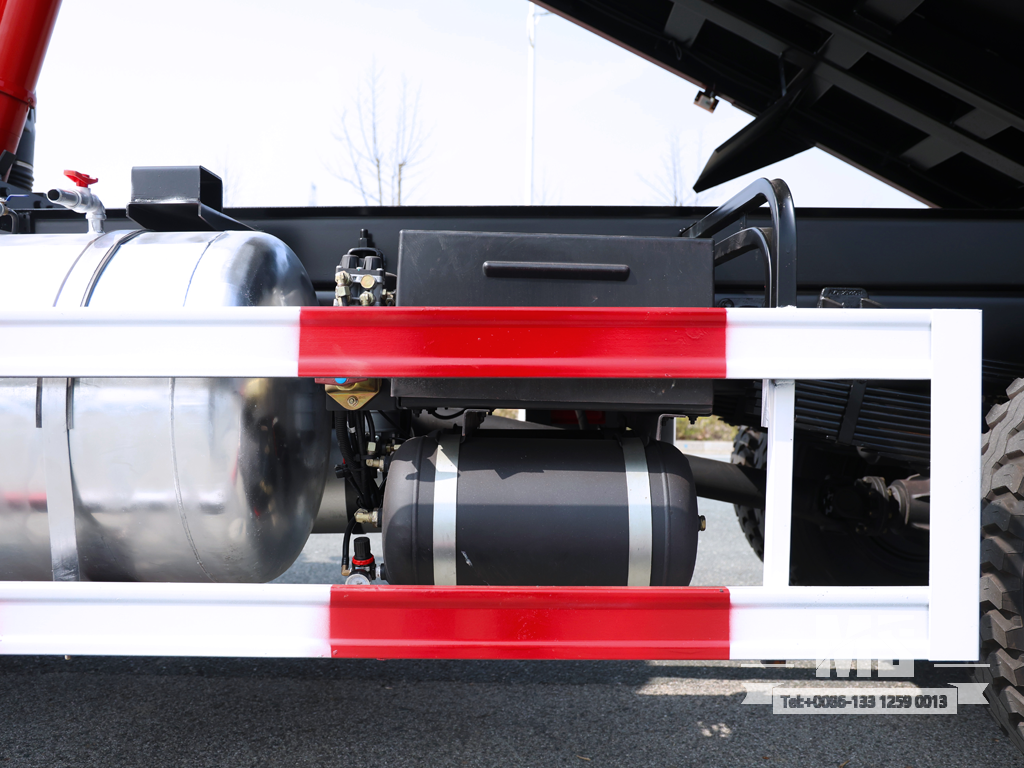

Tank volume | 300L |
Minimum ground clearance | 305mm |
Fording depth | 500mm |
Obstacle height | 455mm |
Note: This configuration is for reference only, please refer to the actual car.
