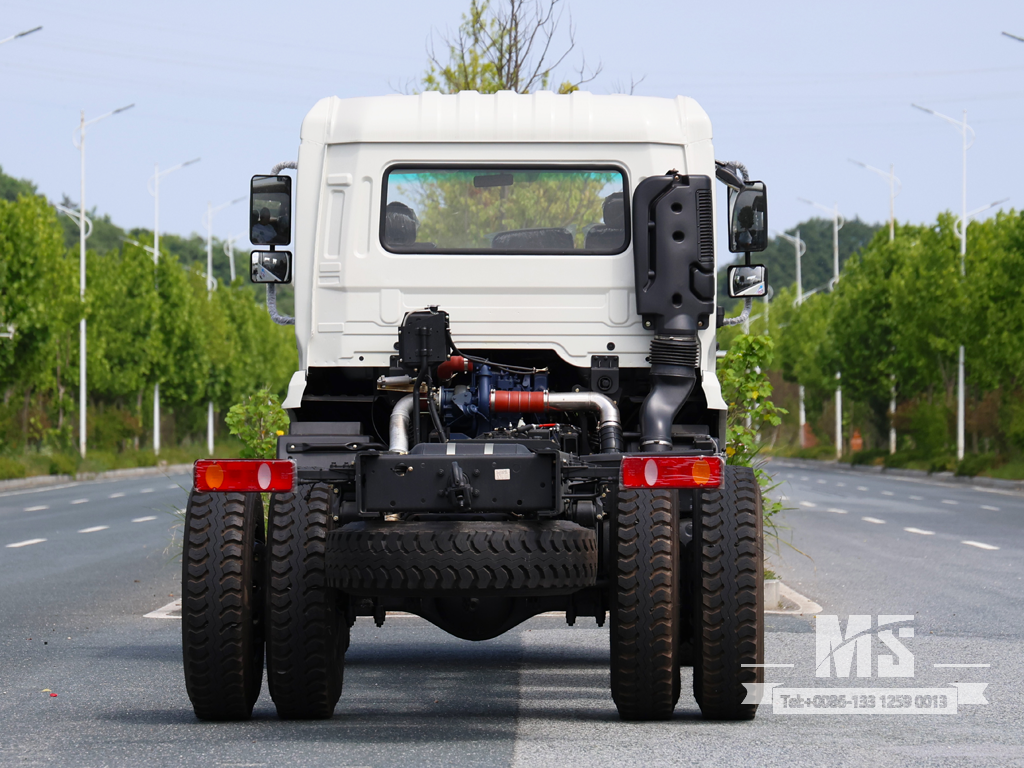

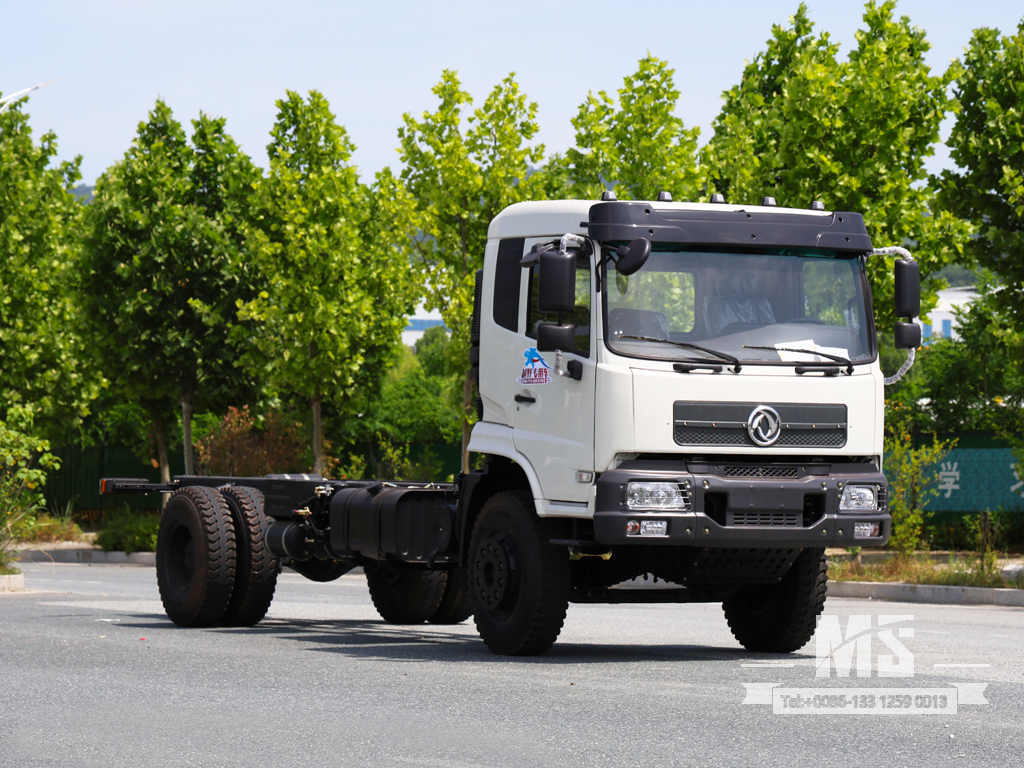

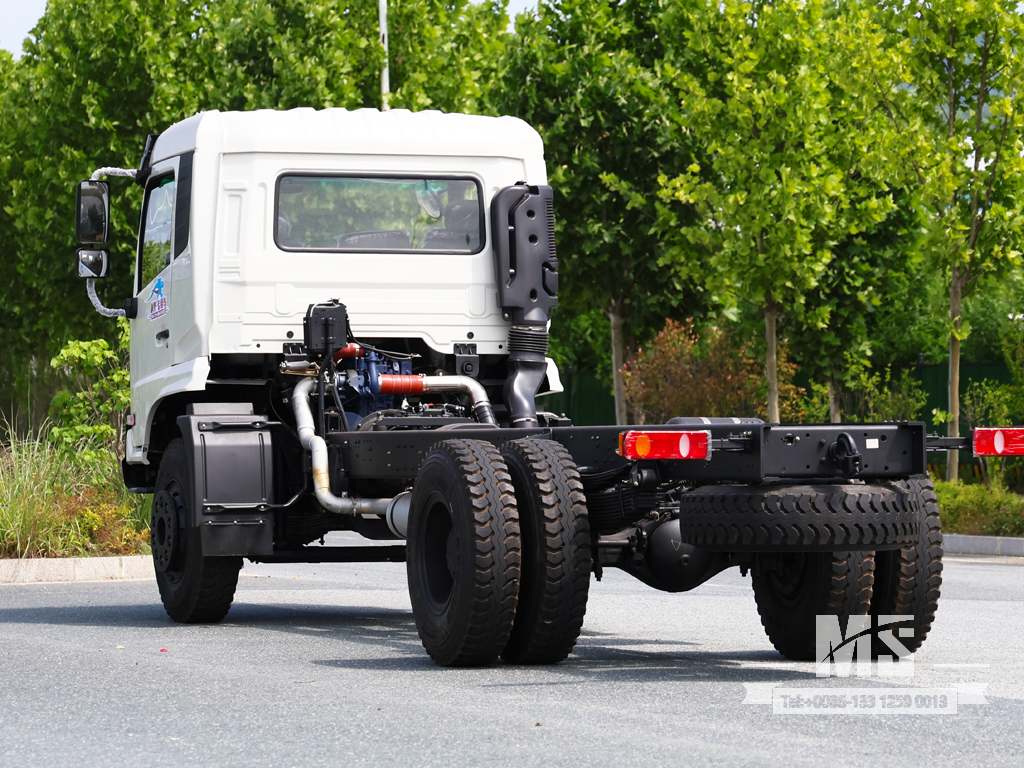

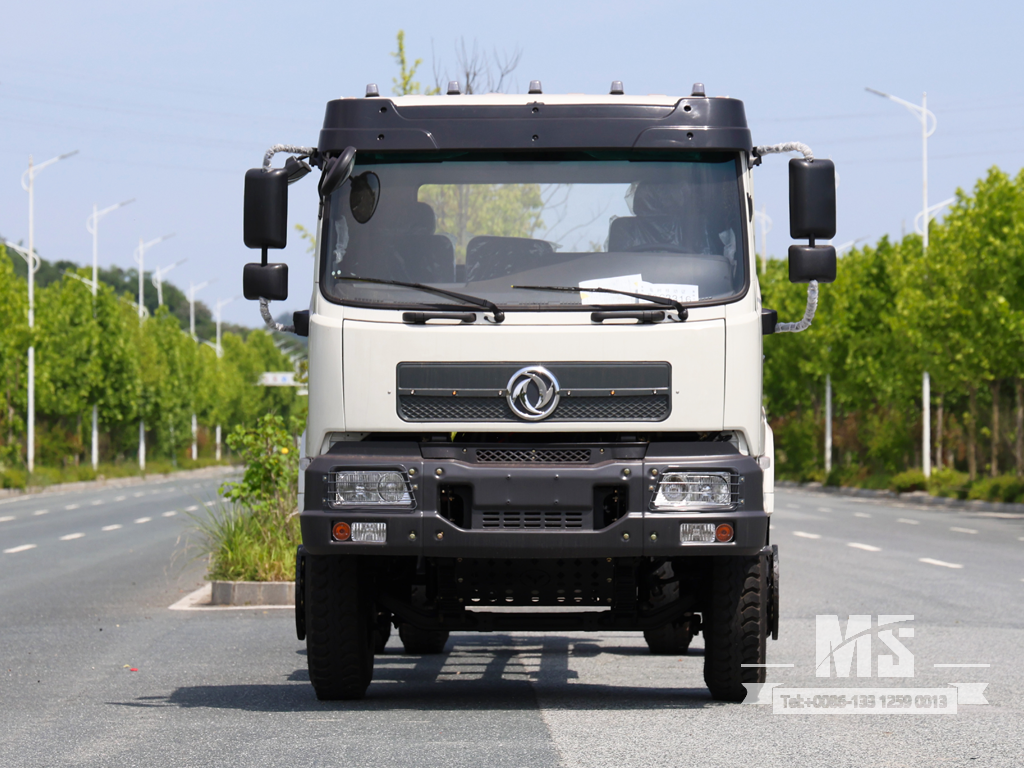

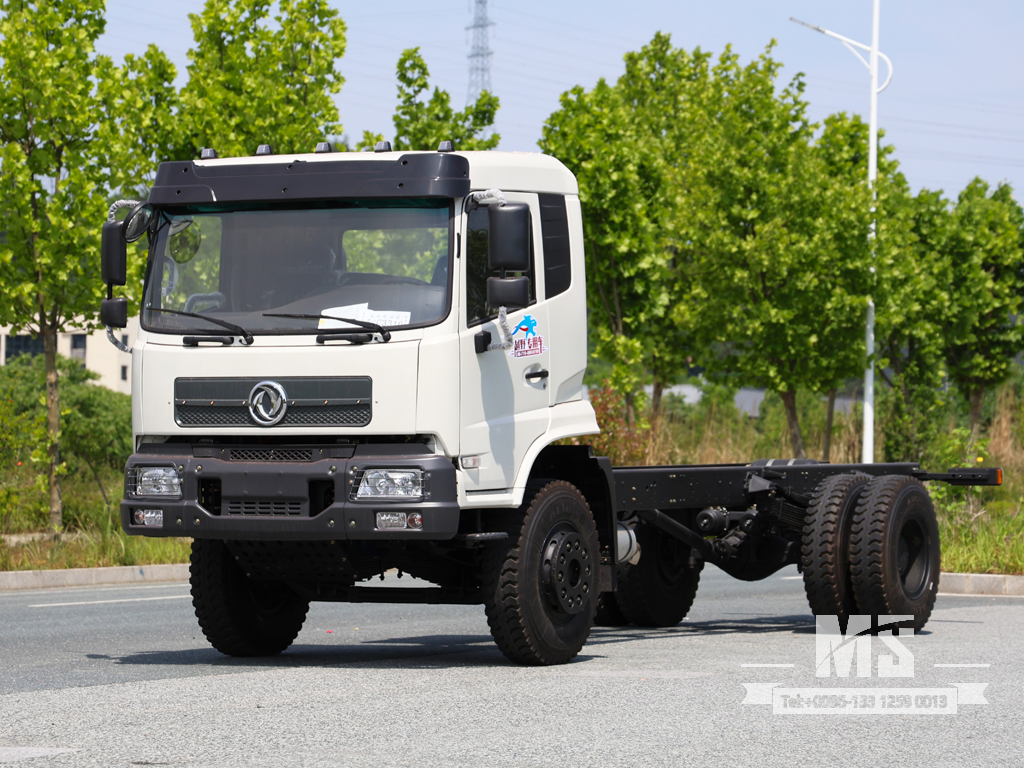

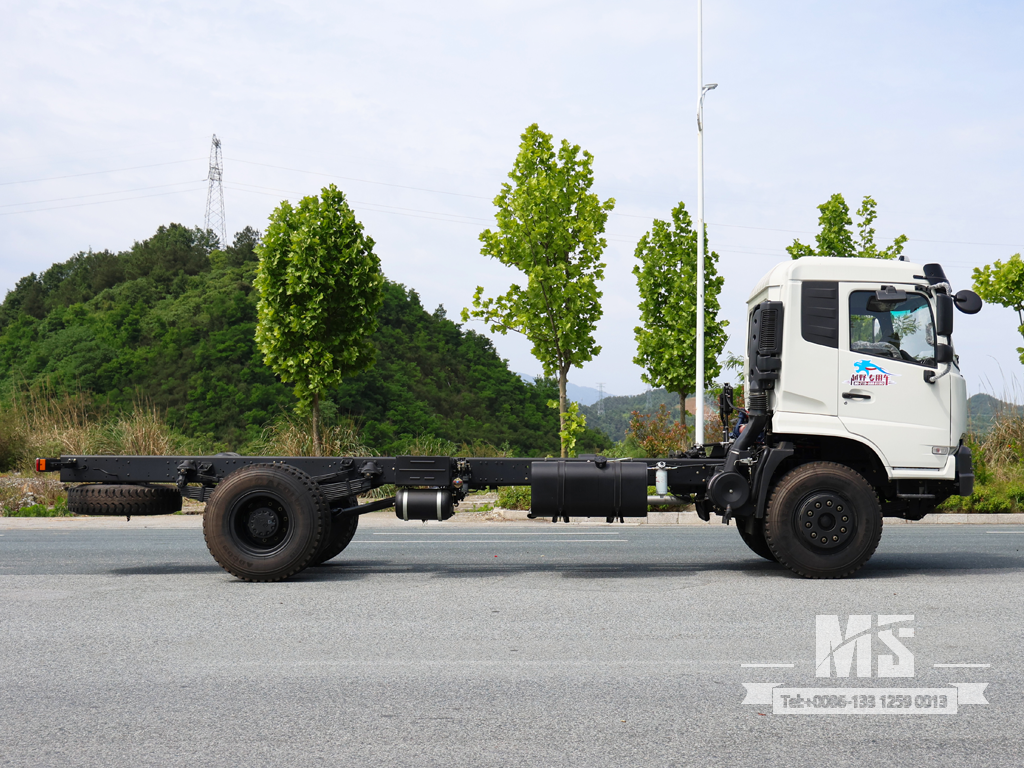

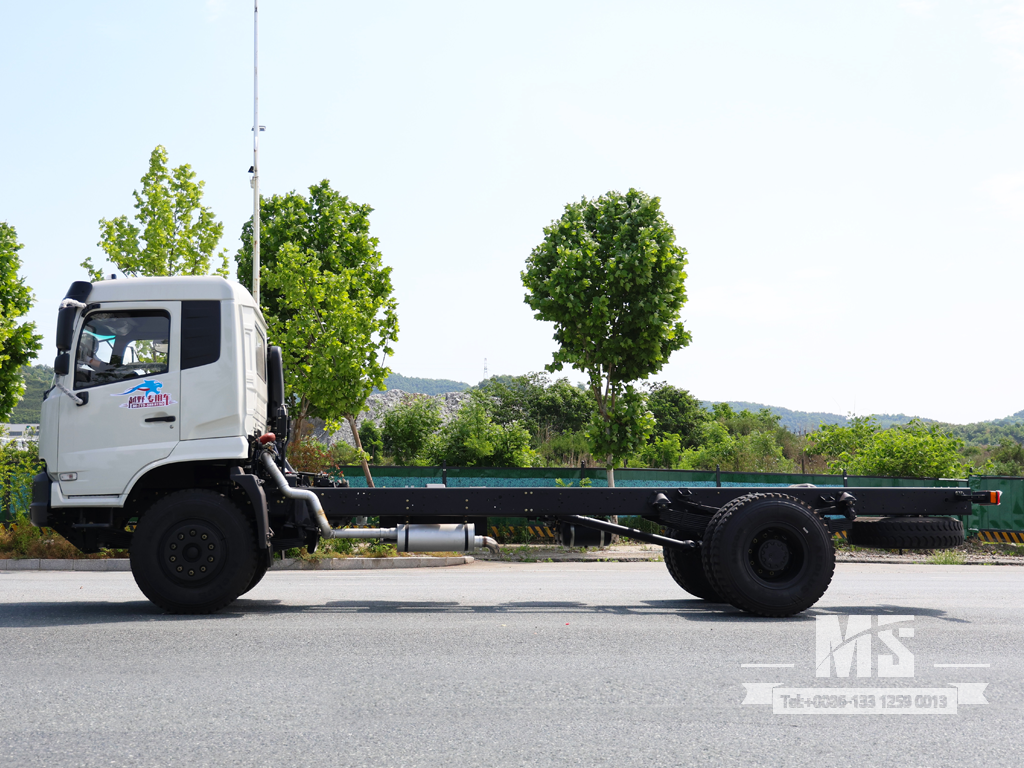

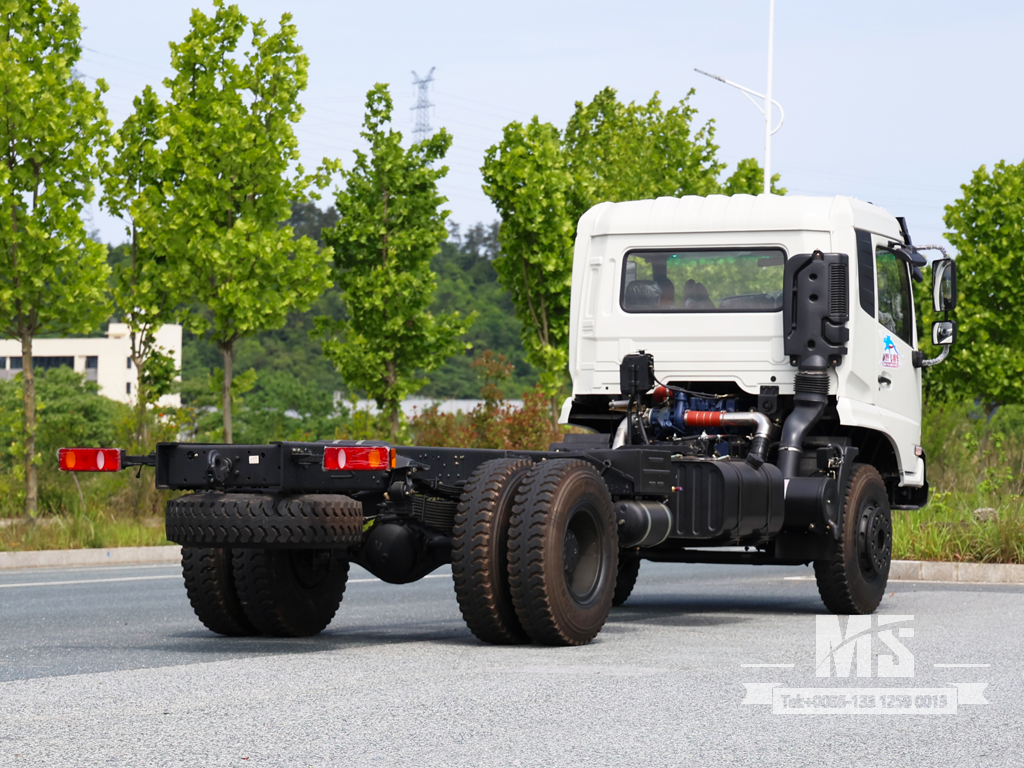

Dongfeng 4×2 special vehicle chassis
Custom extended chassis
Basic configuration |
Drive type | 4*2 |
Engine | WP6.210E32Z |
Transmission | Shou chi Manual 8-speed |

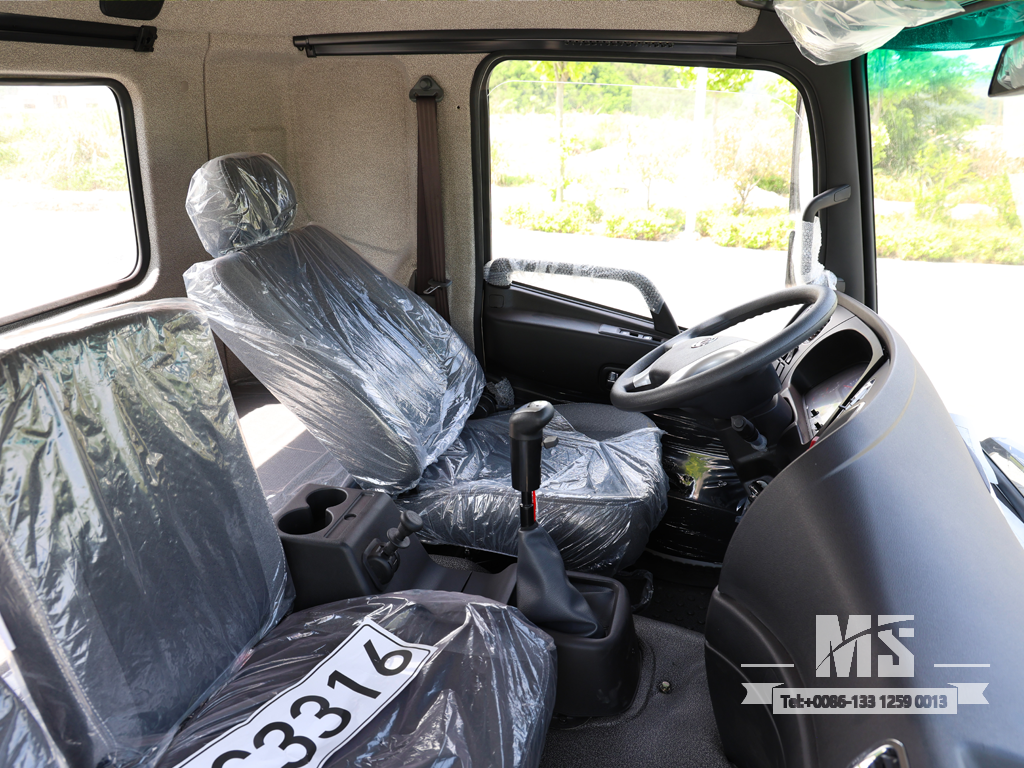

Driver Cab | Dongfeng Cab-over Semi-sleeper Cab (3 Seats) |

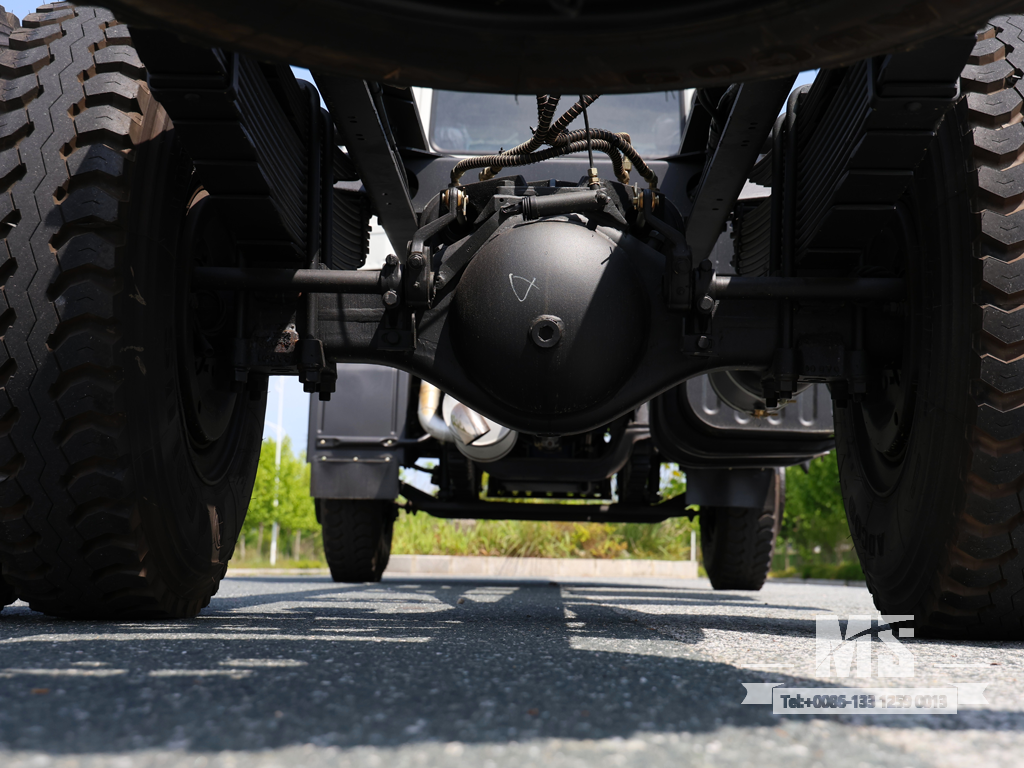

Vehicle Axle | Dont Alxe 5T/Rear Alxe 16T |

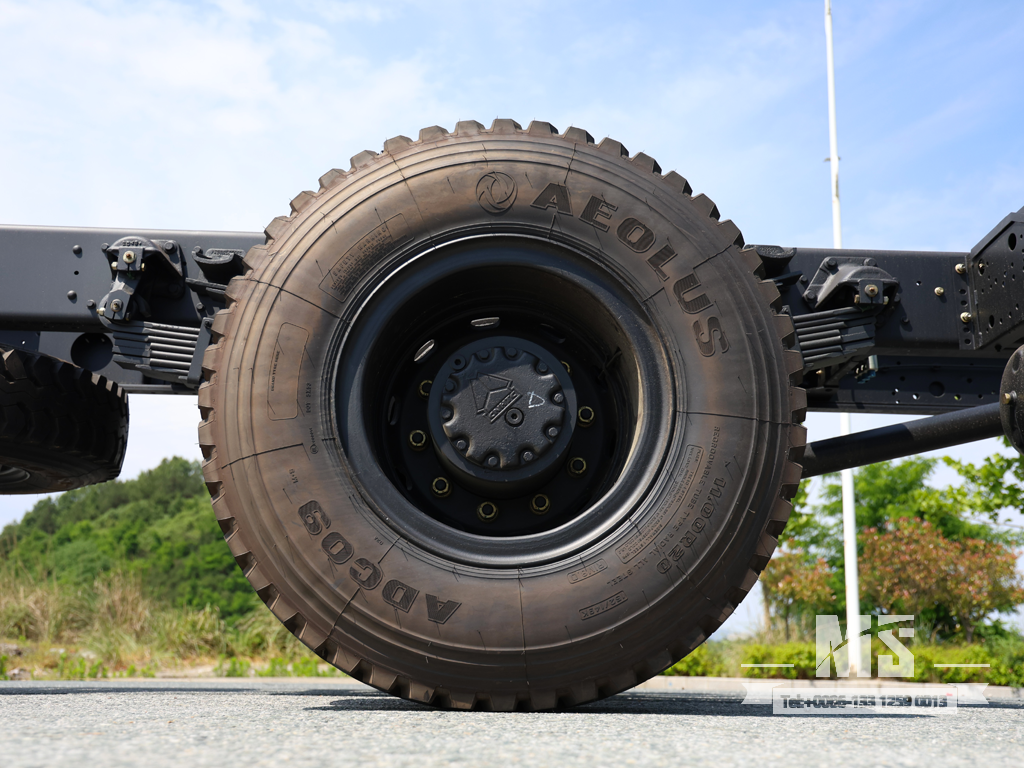

Tire | 11.00R20（6+1 Pieces） |
Electric circuit | 24V circuit system |

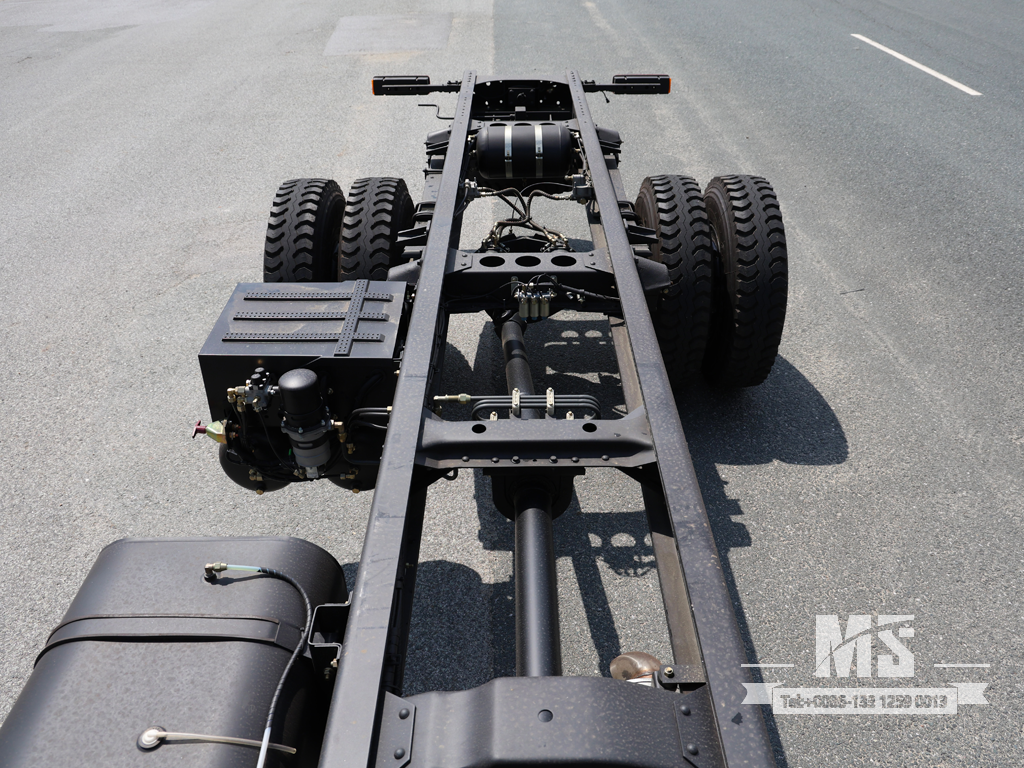

Frame | 860*250mm |
Detailed parameter |
Chassis Overall Dimension | 8740×2470×3010mm |
Modification Dimensions | ≥5900mm |
Wheelbase | 5100mm |
Wheel track | 1950/1850mm |
GVW | 21000kg |
Chassis Curb Weight | 6800kg |
Maximum Power | 155kw |
Number of members | 3 |
Maximum speed | ≥85km/h |
Approach Angle/departure Angle | 26°/16° |
Tank volume | 300L |
Minimum ground clearance | 330mm |
Leaf spring | 12/18 |
Fording depth | 480mm |
Note: This configuration is for reference only, please refer to the actual car.
