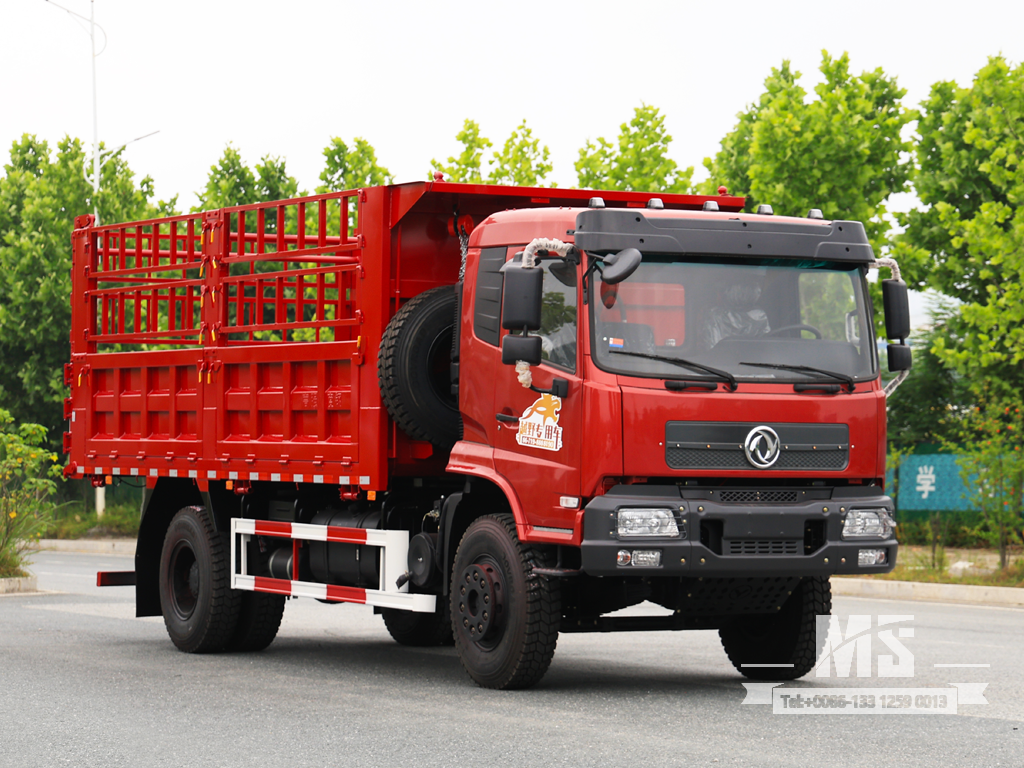

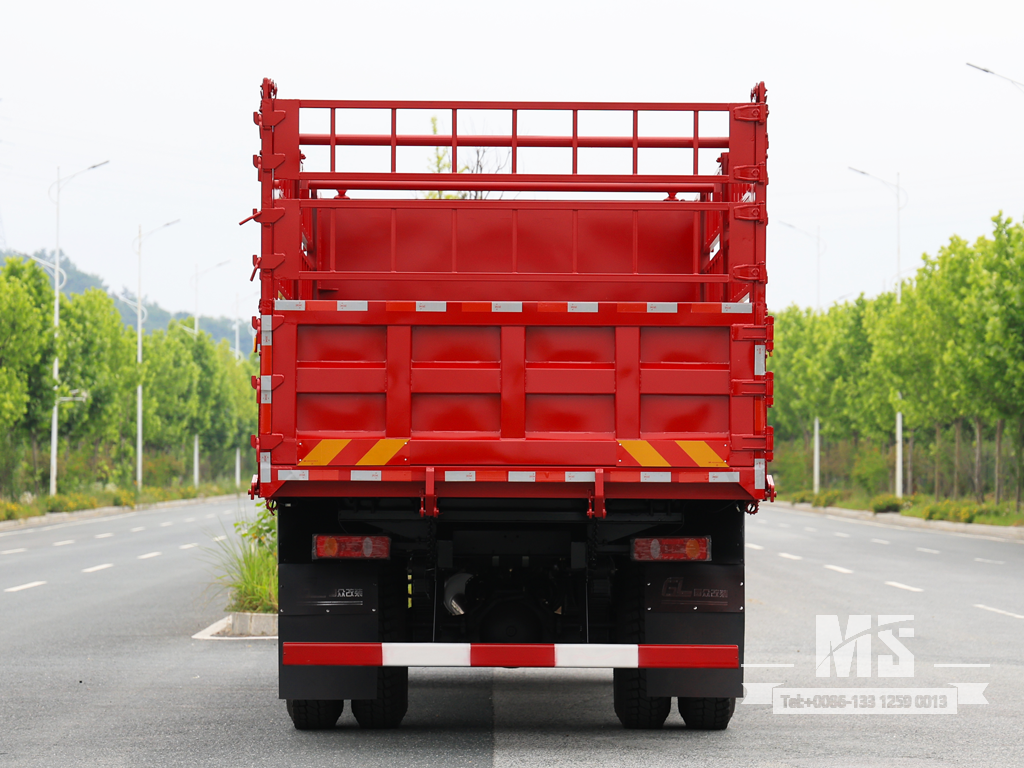

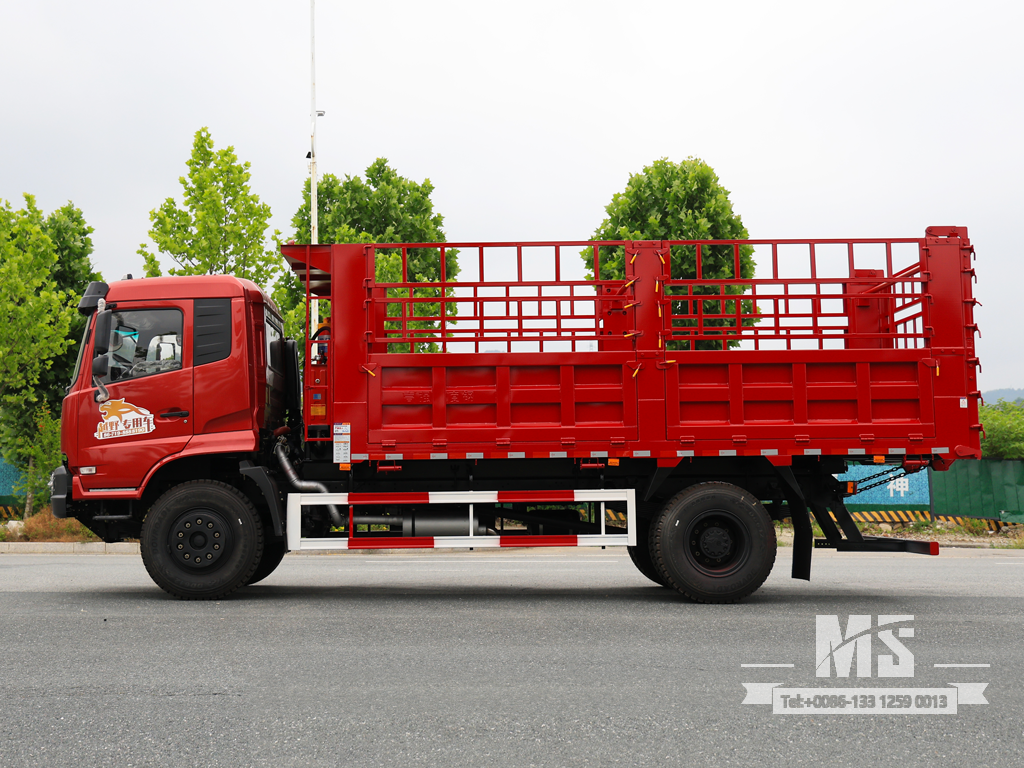

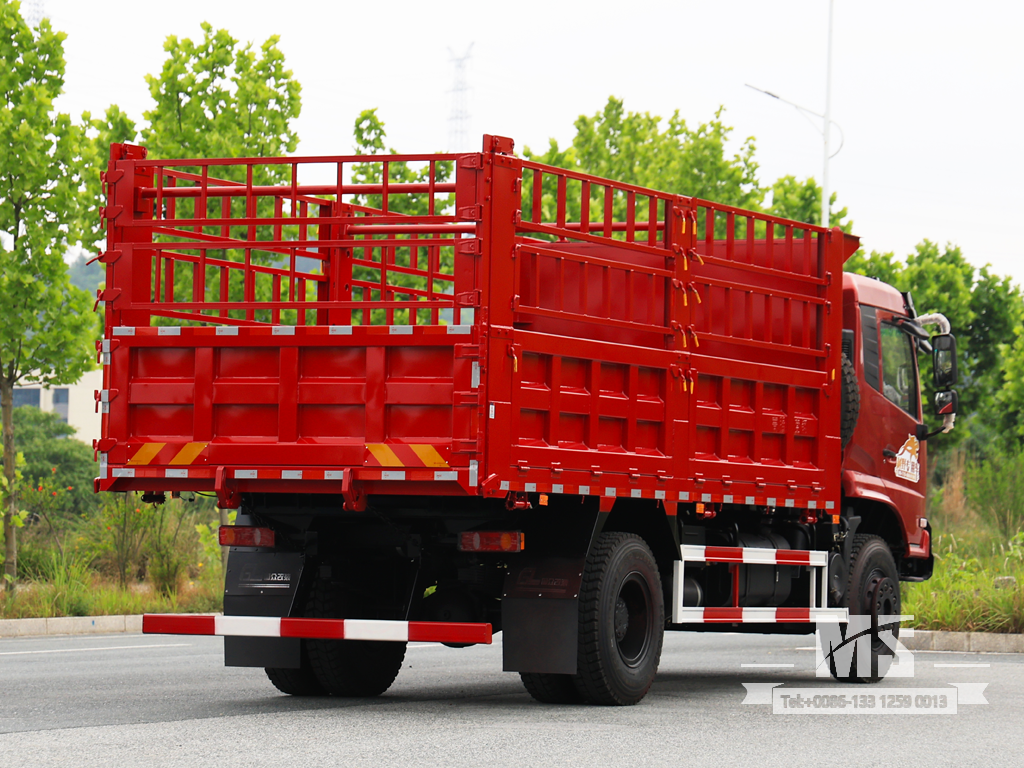

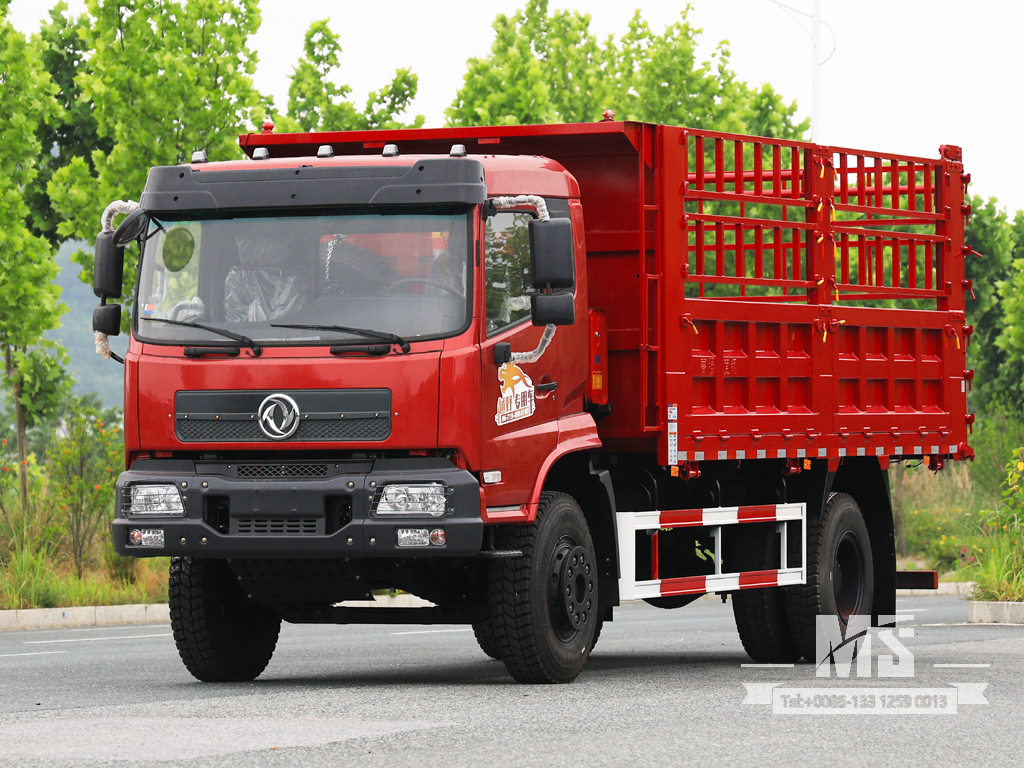

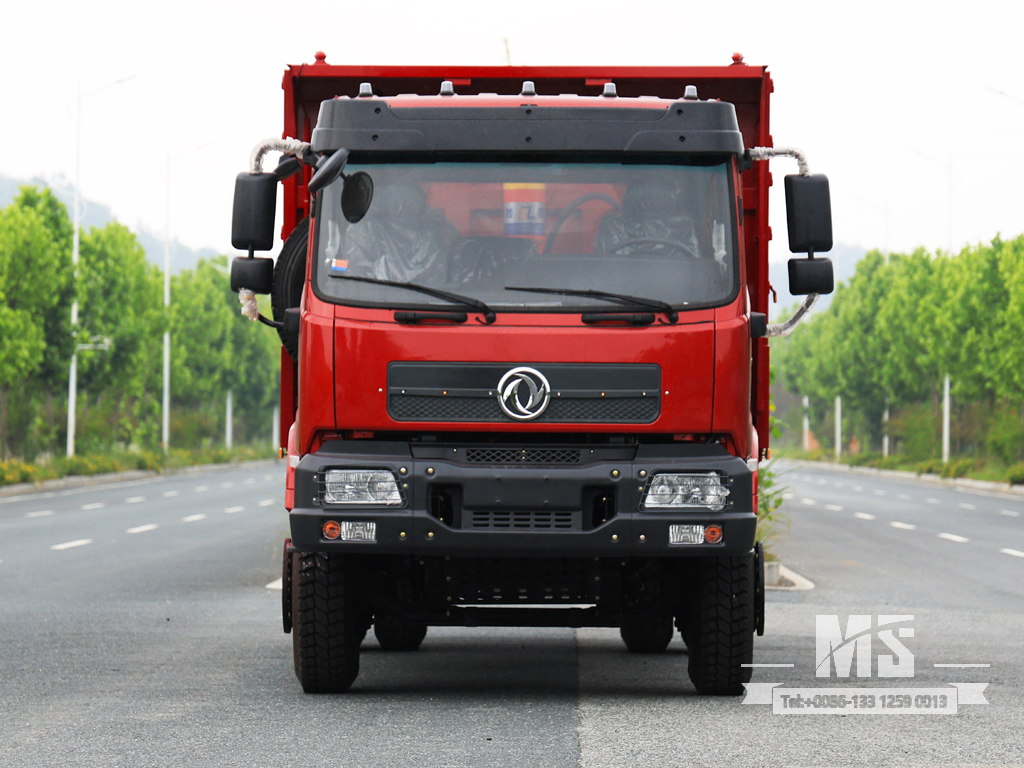

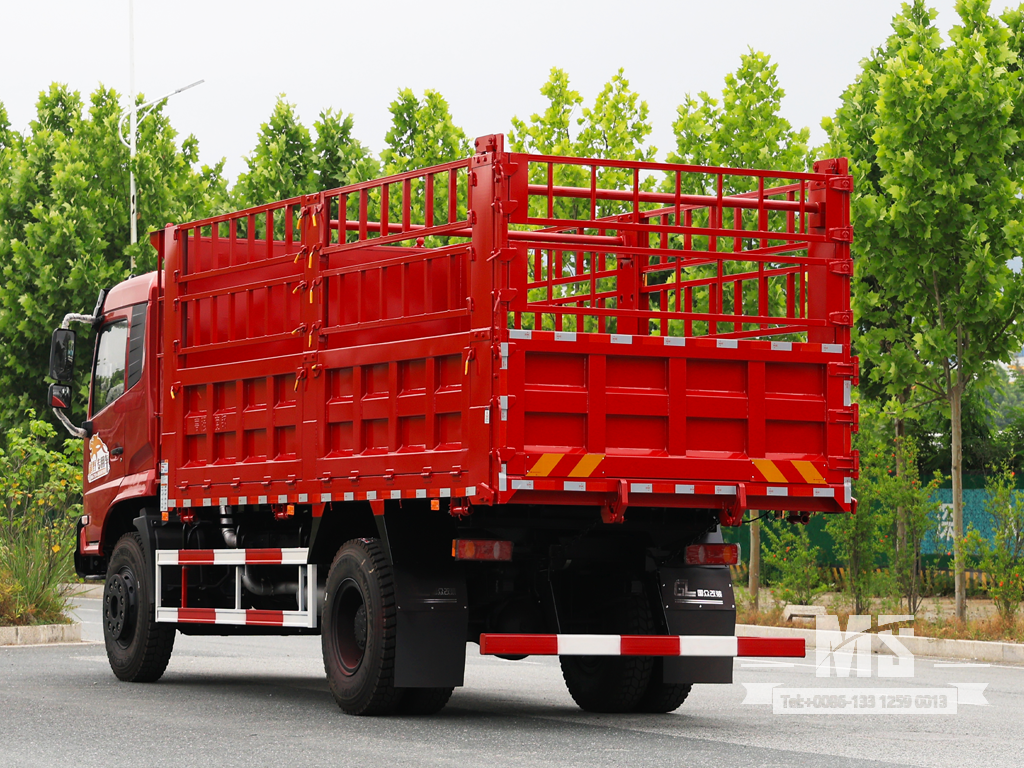

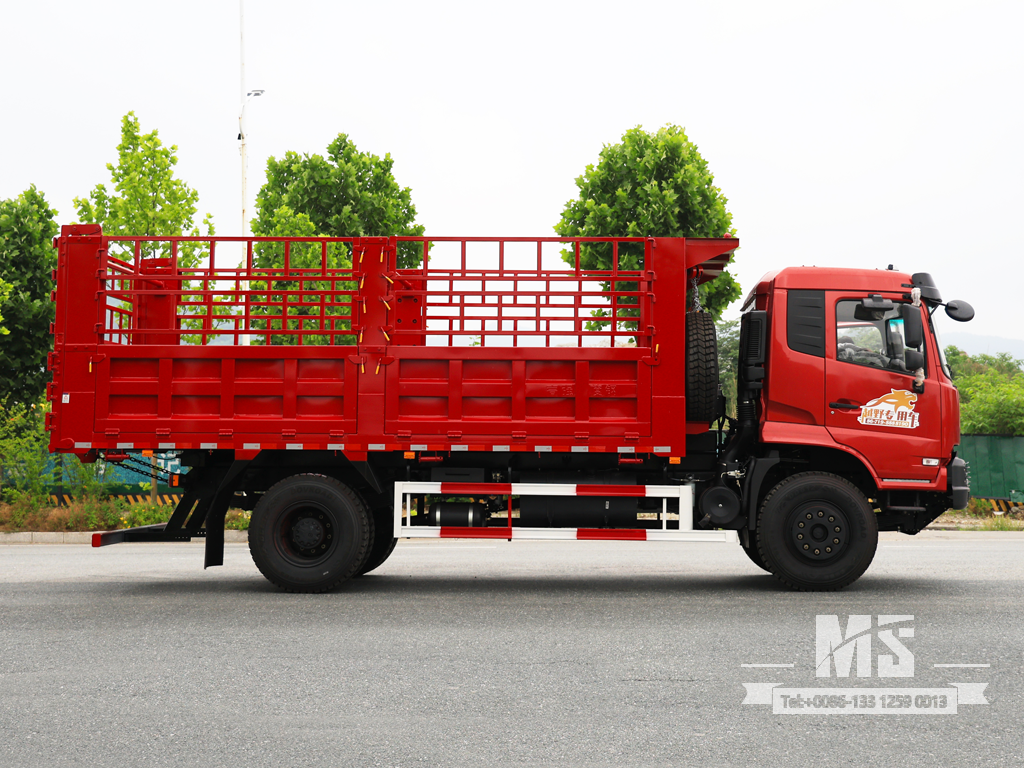

Dongfeng 4×2 Grid Stake Dump Truck
Basic configuration |
Drive type | 4*2 |
Engine | WeChai 210HP |
Transmission | Shou chi Manual 10-speed |

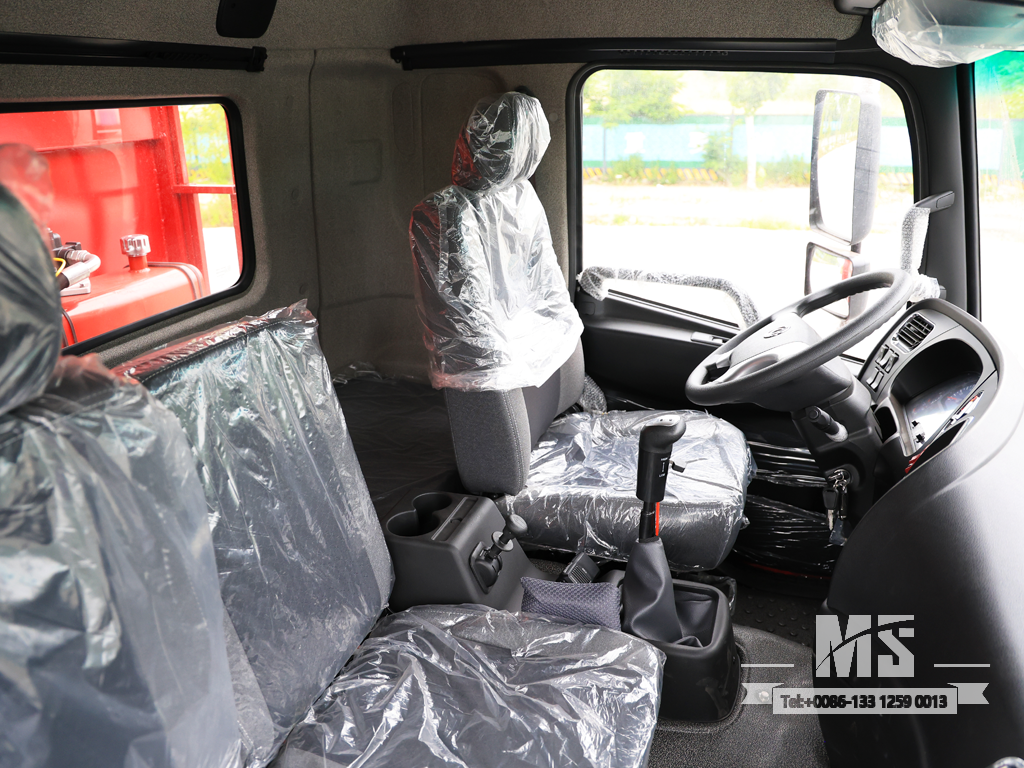

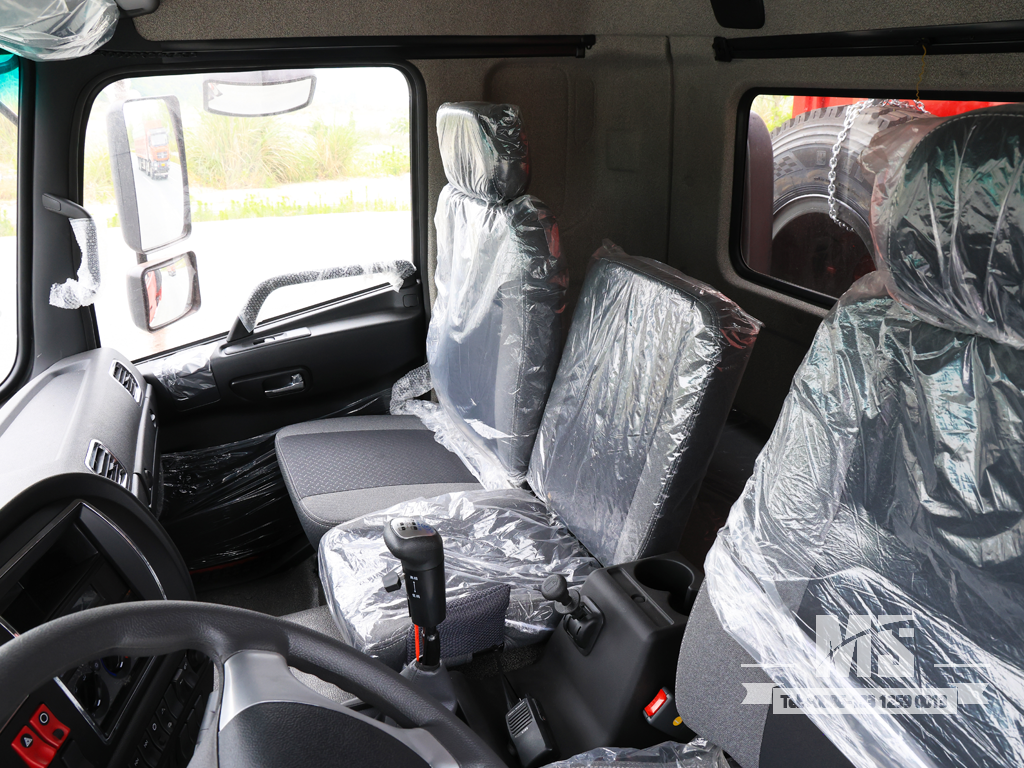

Driver Cab | Dongfeng Flat-head half row |

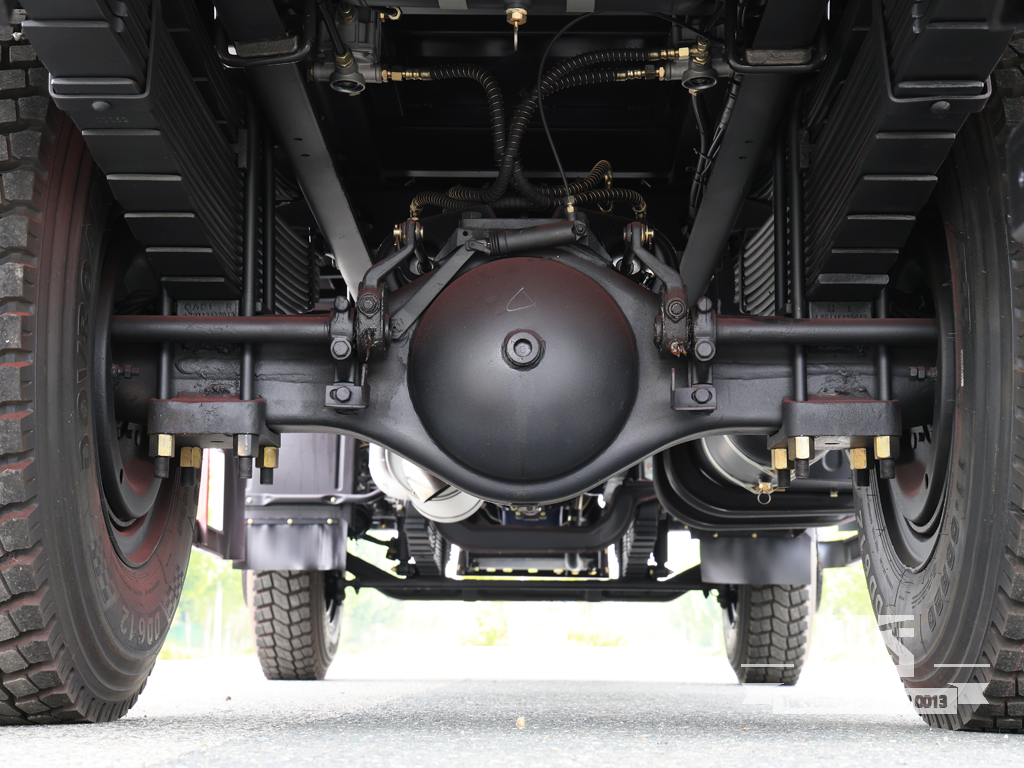

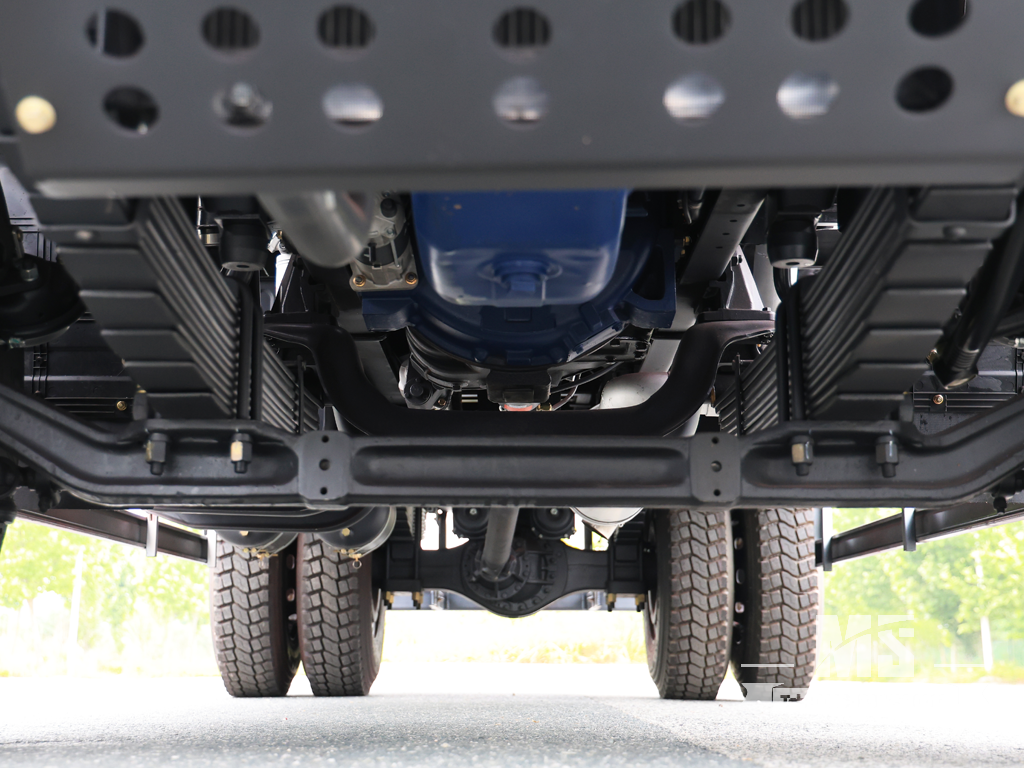

Vehicle Axle |
Dont Alxe 5T/Rear Alxe 13T
|

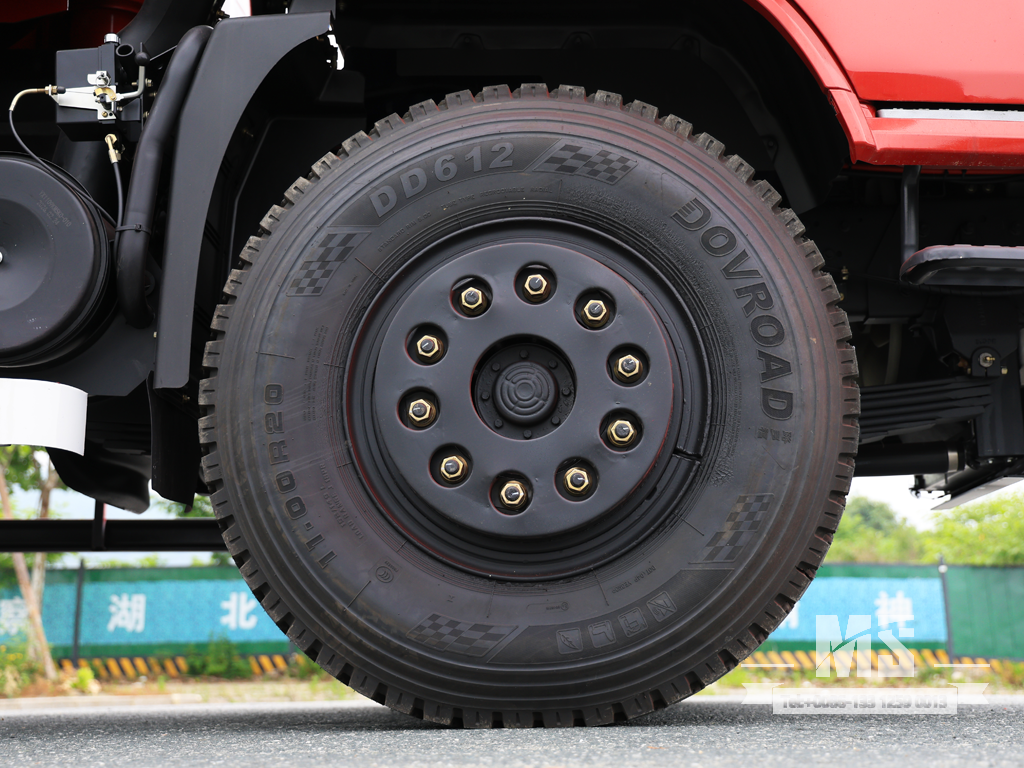

Tire | 11.00R20（6+1 Pieces） |
Detailed parameter |
Overall Dimension | 8340×2640×3290mm |
Cargobox Dimensions | 5600*2400*800mm |
Wheelbase | 4500mm |
Wheel track | 1955/1815mm |
GVW | 18000kg |
Curb Weight | 9220kg |
Maximum Power | 155kw |
Engine Displacement | 6.23L |
Maximum speed | 85km/h |
Approach Angle/departure Angle | 28°/13° |

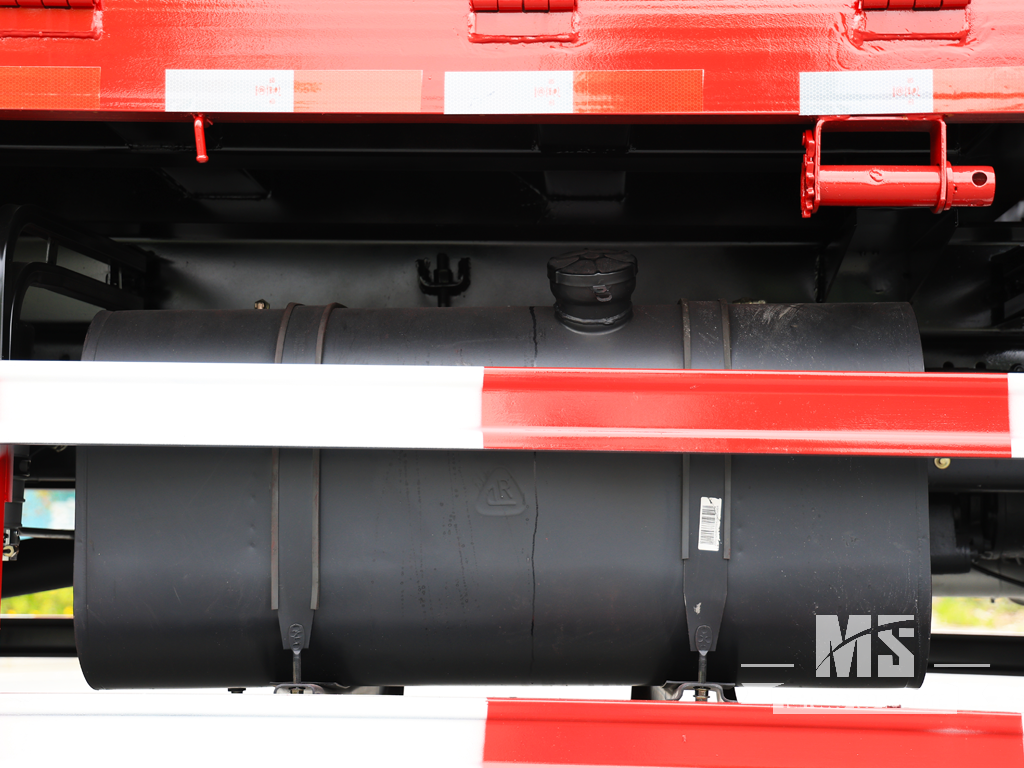

Tank volume | 300L |
Minimum ground clearance | 305mm |
Fording depth | 500mm |
Obstacle height | 485mm |
Note: This configuration is for reference only, please refer to the actual car.
