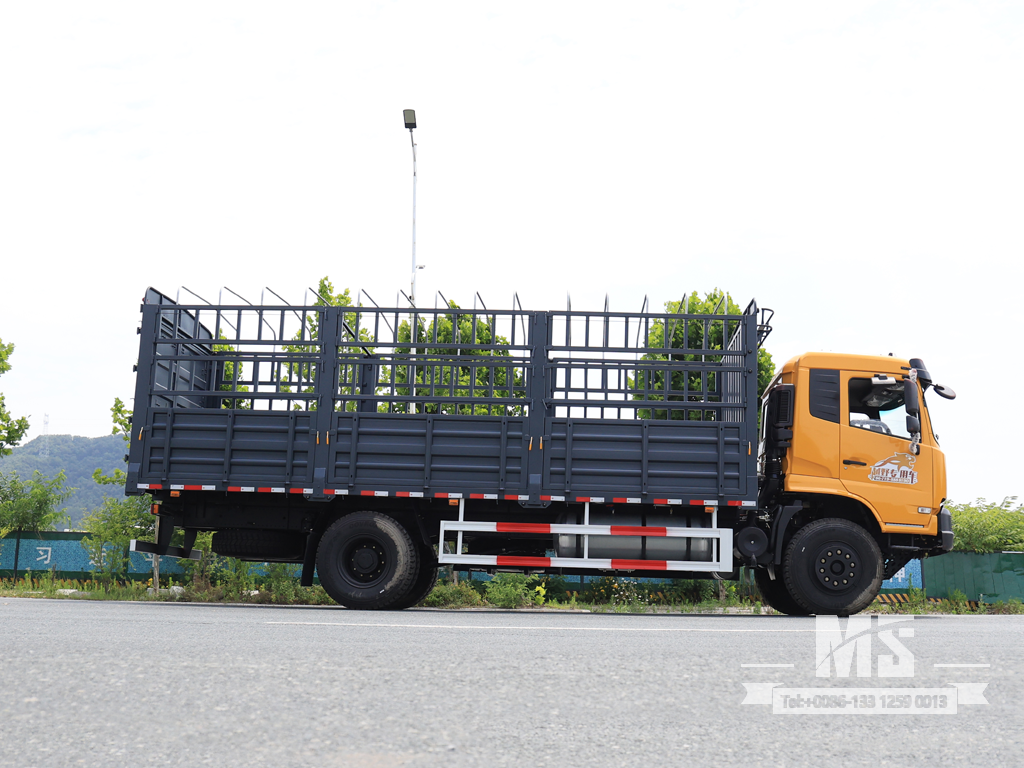

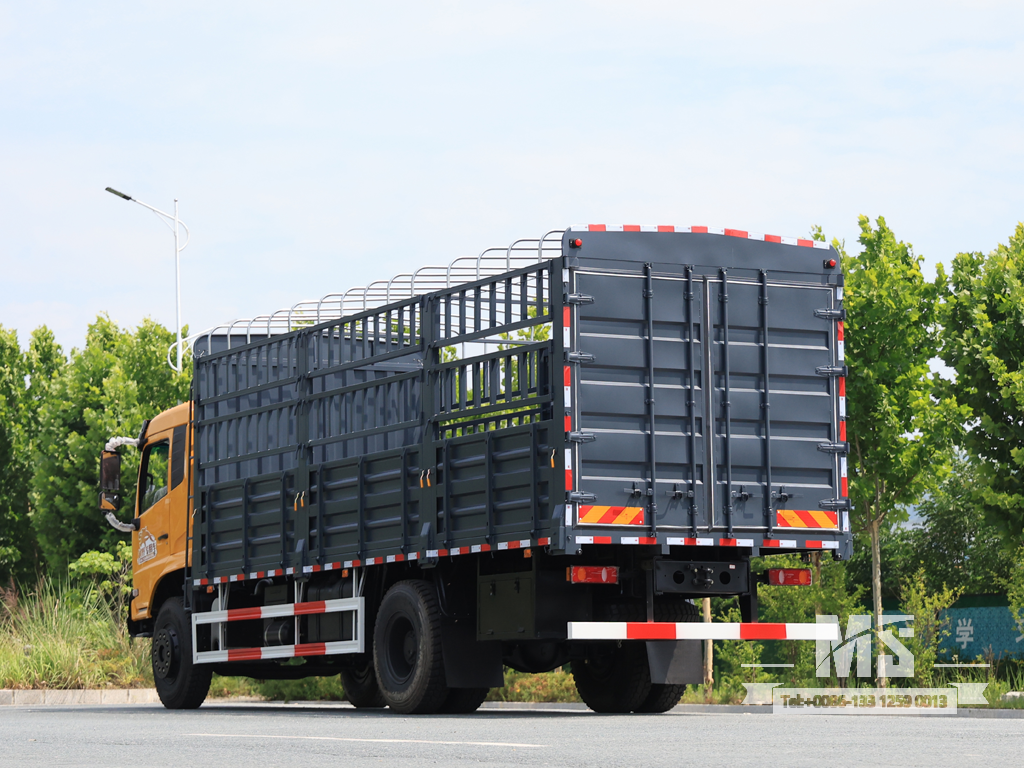

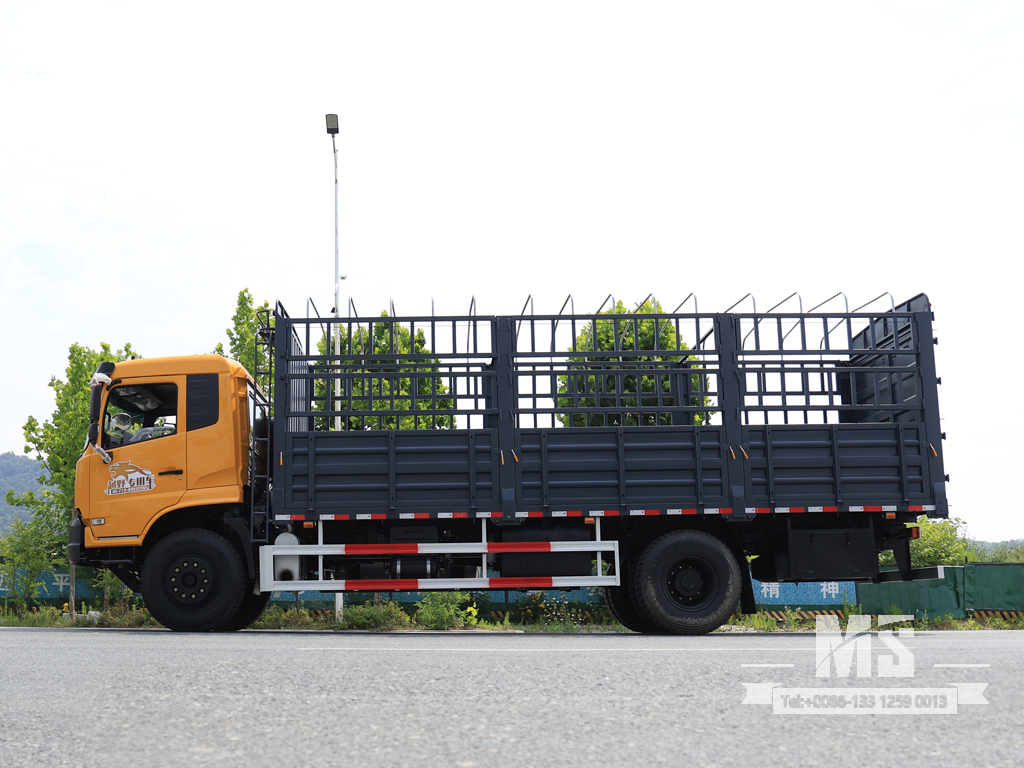

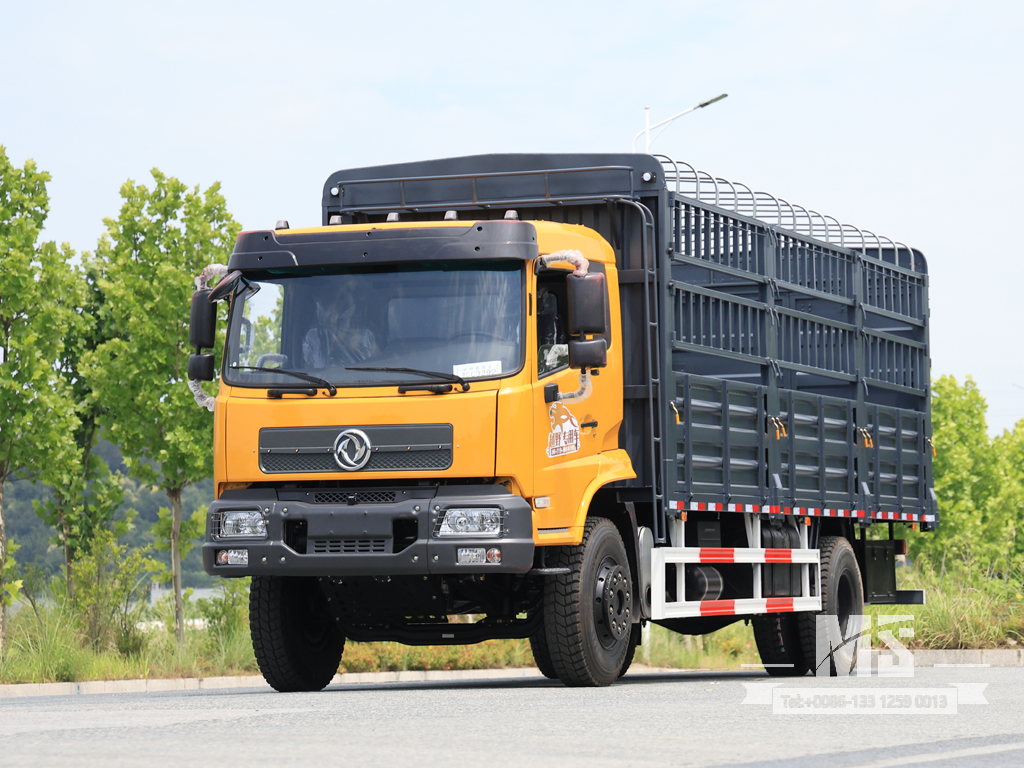

Box-Type Transport Dump Truck
Basic configuration |
Drive type | 4*2 |
Engine | Yuchai 260 HP |

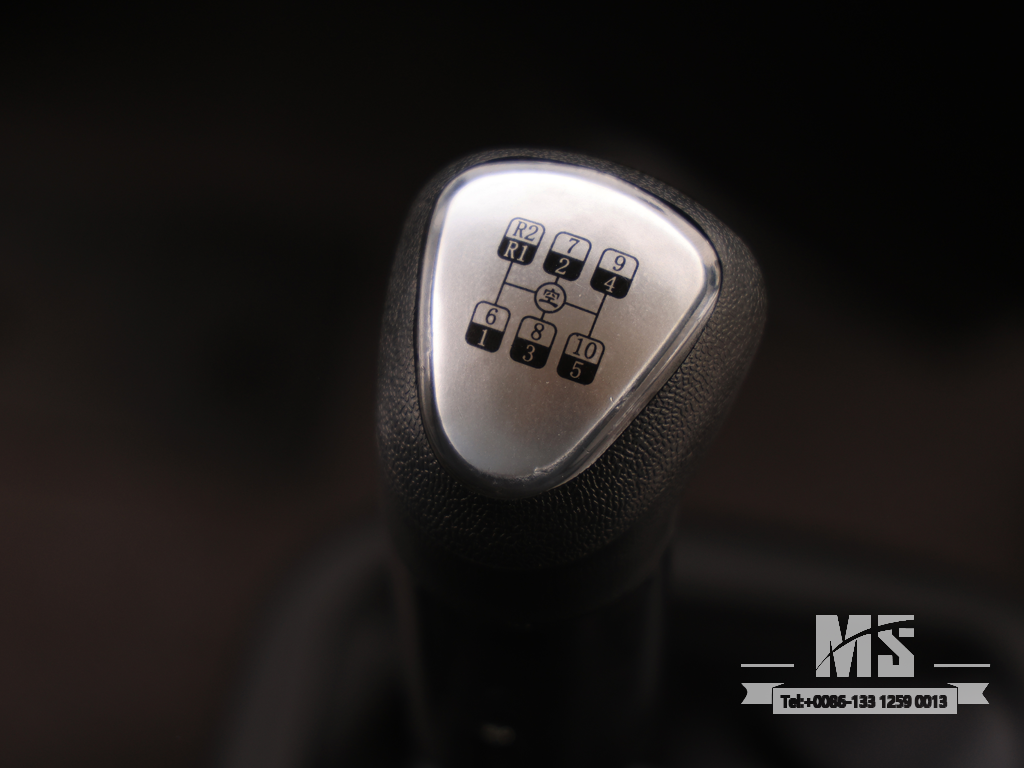

Transmission | Shou chi Manual 10-speed |

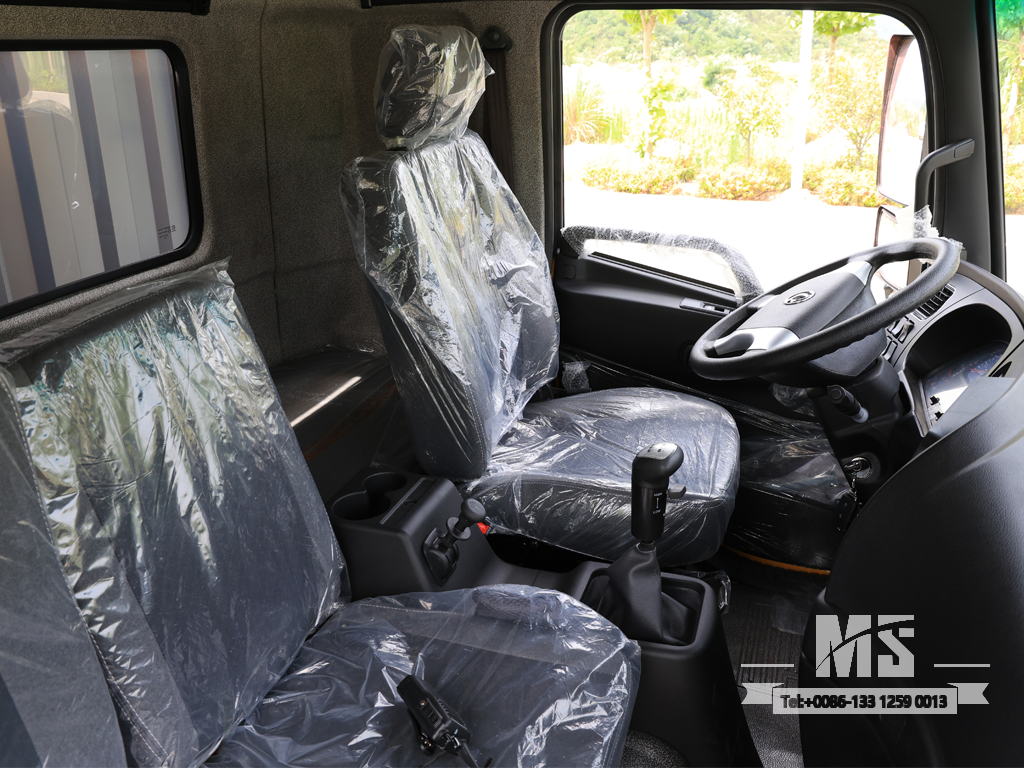

Driver Cab | Dongfeng Flat Semi Cab |
Frame | 860X280(8+8) |
Vehicle Axle |
Dont Alxe 6.5T/Rear Alxe 13T
|

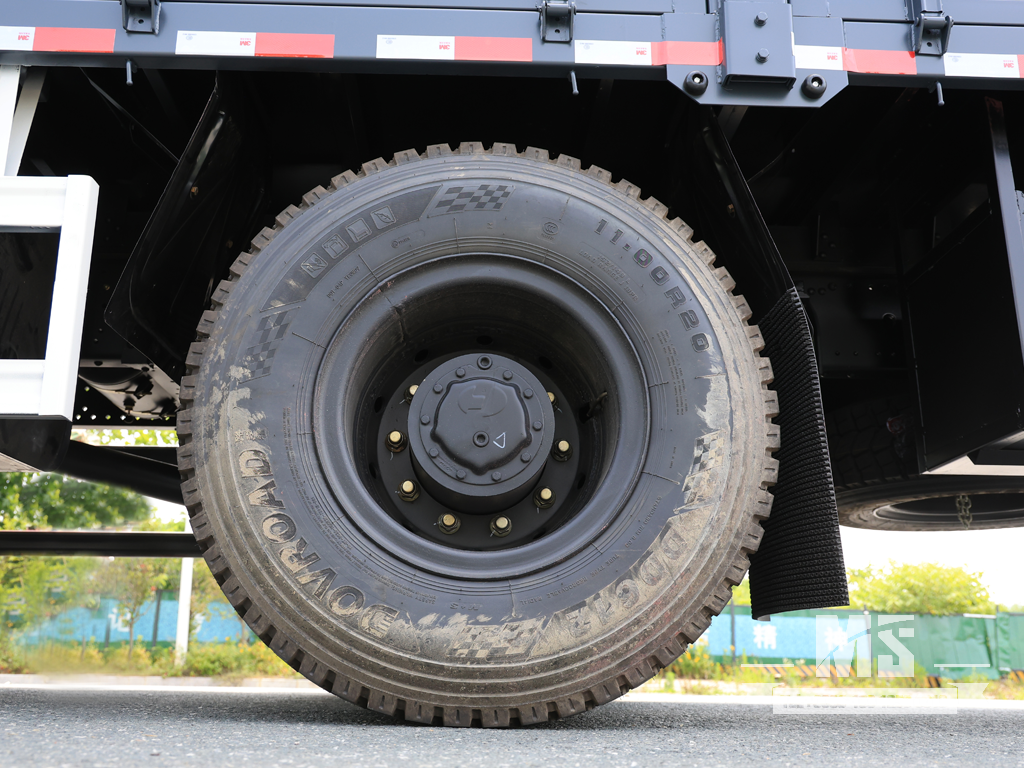

Tire | 11.00R20（6+1 Pieces） |
Detailed parameter |
Overall Dimension | 9300×2750×3700mm |
Cargobox Dimensions | 6700x2380x2300mm |
Wheelbase | 5100mm |
Wheel track | 2020/1850mm |
GVW | 19500kg |
Curb Weight | 8020kg |
Maximum Power | 191kw |
Engine Displacement | 7.255L |
Maximum speed | 85km/h |
Approach Angle/departure Angle | 13°/16° |
Tank volume | 300L |
Minimum ground clearance | 330mm |
Fording depth | 470mm |
Obstacle height | 330mm |
Note: This configuration is for reference only, please refer to the actual car.
