Availability: | |
---|---|
Quantity: | |
Basic configuration | |
Drive type | 4*2 |
Engine | WP6.210E32 |

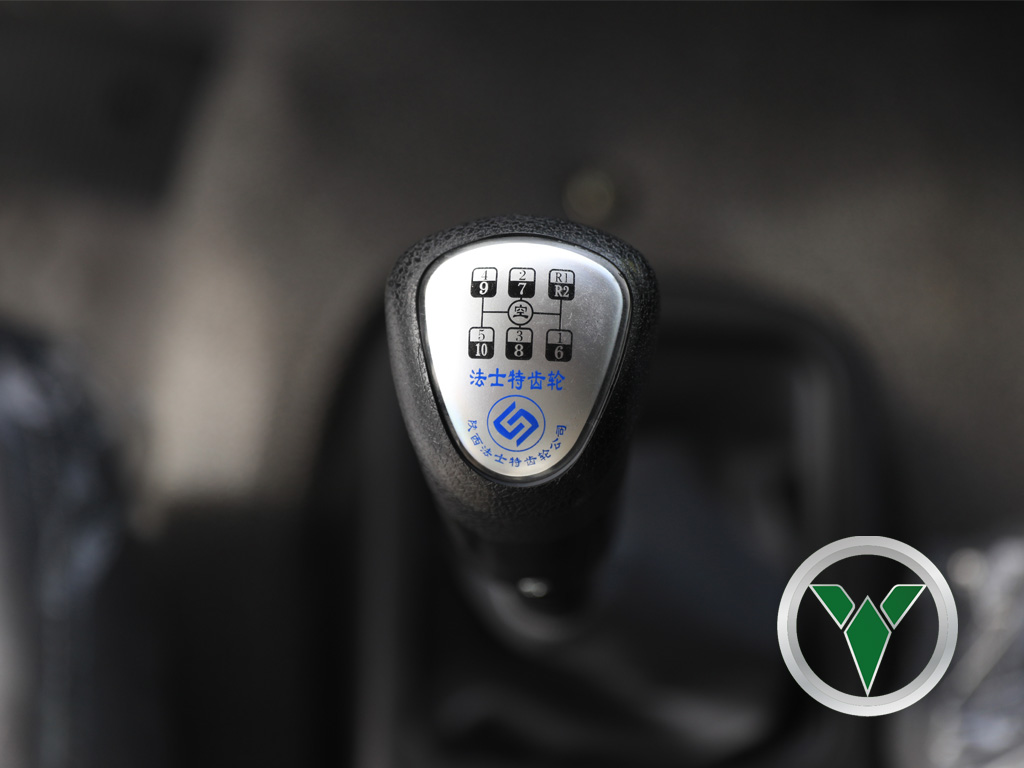

Gearbox | Manual ten-speed Gearbox |
Transfer box | None |
Driver Cab | Dongfeng Flathead Row Half Cab( With Sleeper) |

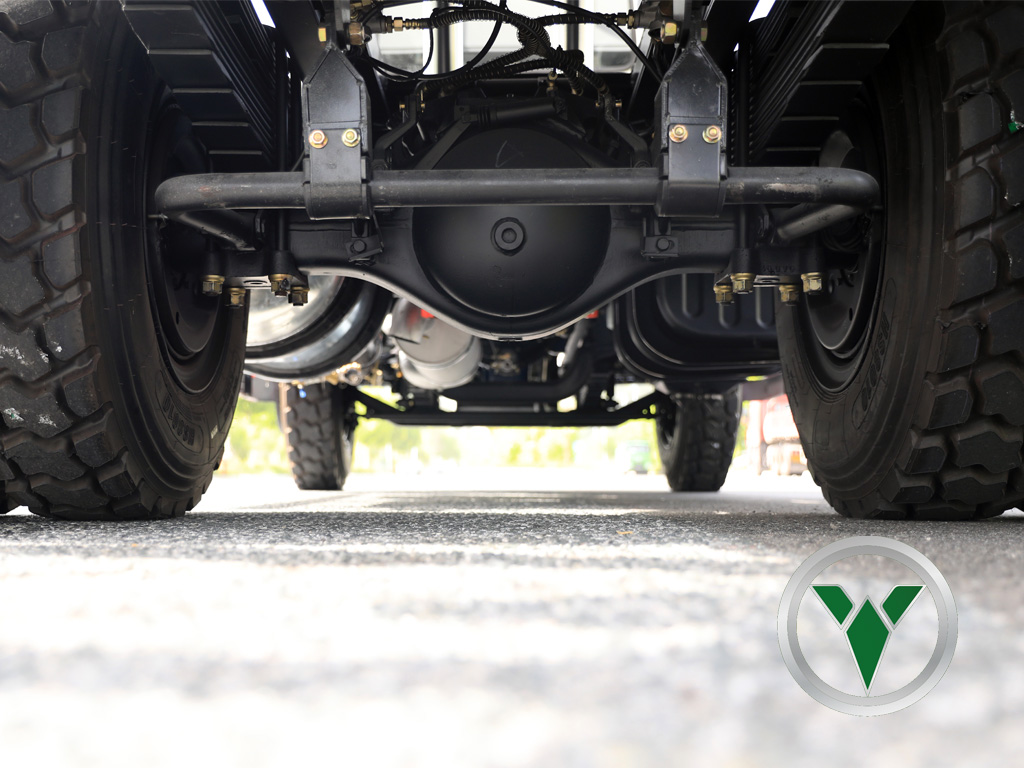

Vehicle Axle | 5T/13T |
Tire | 11.00R20(6+1) |
Electric circuit | 24V circuit system |
front and rear Overhang | 1480mm/ 1650mm |
Optional | Cold and warm air-conditioning、Reversing camera、Brake cooling tanks、Right hand drive cab |
Detailed parameter | |
Overall Dimension | 7080x2540x3125mm |
Cargo Box Inner Dimension | 4600x2300x(800+400)mm |
Wheelbase | 3950mm |
Wheel track | 1950/1825mm |
GVW | 18000kg |
Curb Weight | 9200kg |
Loading Weight | 8800kg |
Maximum Power | 155kw |
Engine Displacement | 6230m1 |
Engine Power | 155kw |
Torque | 750N.m |
Maximum speed | 87km/h |
Front/Rear overhang | 1390mm/1195mm |
Approach Angle/departure Angle | 26°/17° |
Tank volume | 300L |
Minimum ground clearance | 330mm |
Fording Depth | 510mm |
Upper Frame Plane Off the Ground | 1100mm |
Obstacle clearance height | 430mm |
wading depth | 430mm |
Note: This configuration is for reference only, please refer to the actual car.
For 50% of our shipment, the vehicle will be transported by sea, to all main continents such as Africa, South America, Middle East, Oceania and Southeast Asia, either by container or RoRo/Bulk shipment. For inland neighborhood countries of China, such as Russia, Mongolia, Kazakhstan, Myanmar, Vietnam etc. , we can transport vehicles by land.
For light spare parts in urgent need. We can send it by international courier service, such as DHL, TNT, UPS, or Fedex.
On T/T term, 50% down payment is required in advance,and the 50% balance shall be settled before shipment or when products are out of the factory. T/T payment can be negotiated.
Our professional team will provide you with one-stop customs clearance service. We can provide EXW, FOB, FCA payment terms according to customers’ need.
