Basic configuration | |
Engine | Cummins B210 33 |
Drive type | 6*6 |
Gearbox | Manual Eight-speed gearbox |
Transfer box | high and low gears |
Vehicle Frame | 860*232mm, Double layer |

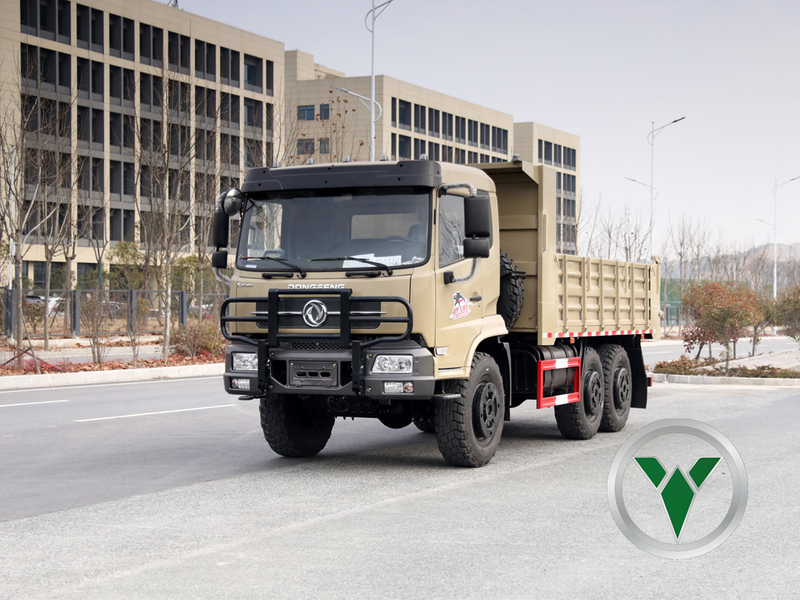

Driver Cab | Six-wheel drive flat-top dump truck (with raised side panels) |
Axle | 5T/5T/5T |
Tire | 12.00R20(6+1) |
Vehicle Suspension | Leaf spring, 10/12 leaves |
Detailed parameter | |
Vehicle Size | 7855*2490*3080mm (canopy pole height is 3460mm) |

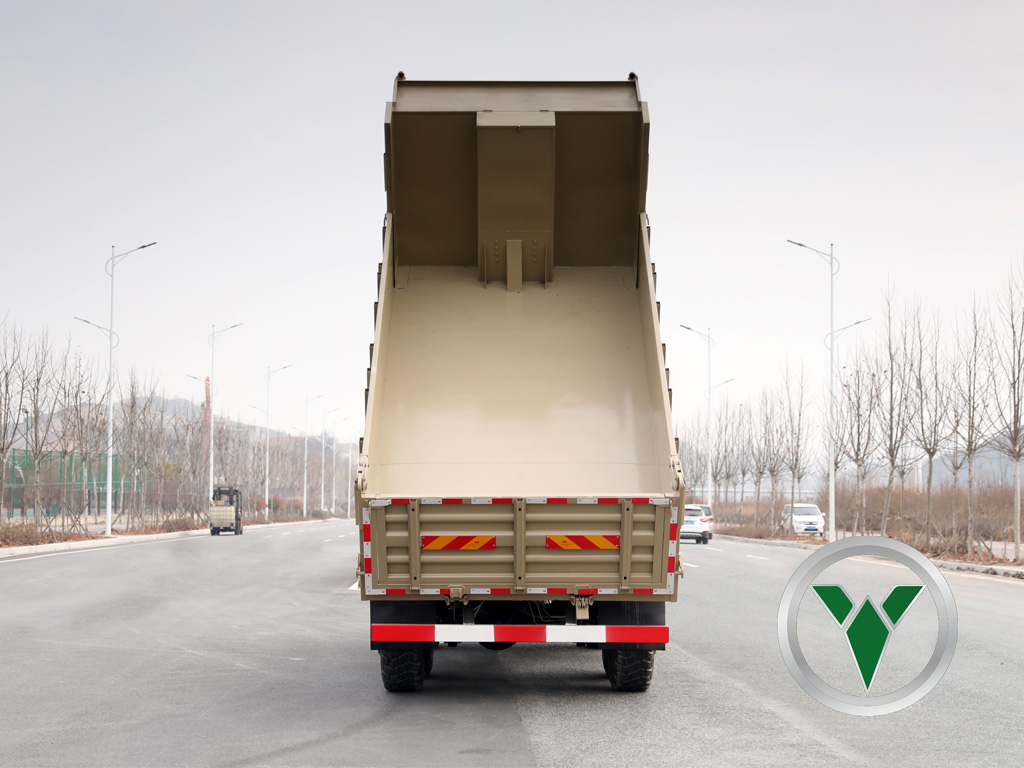

Cargo box size | 4800*2300*(800+770)mm |
Frame | 860*232mm, double layer |
Wheelbase | 3475+1250mm |
Wheel Track | 2020mm |
GVW | 15000kg |
Curb Weight | 9100kg (chassis) |
Loading weight | |
Engine Displacement | 5900ml |
Torque | 700N.m |
Maximum power | 155kw |
Maximum speed | |
Engine Torque | 700N.m |
Approach Angle/departure Angle | 26°/20° |
Oil Tank volume | 220L |
Minimum ground clearance | 315mm |
Obstacle Crossing height | 510mm |
Upper Frame Plane Off the Ground | |
Wading Depth | |
Climbing Grade |
Note: This configuration is for reference only, please refer to the actual car.
