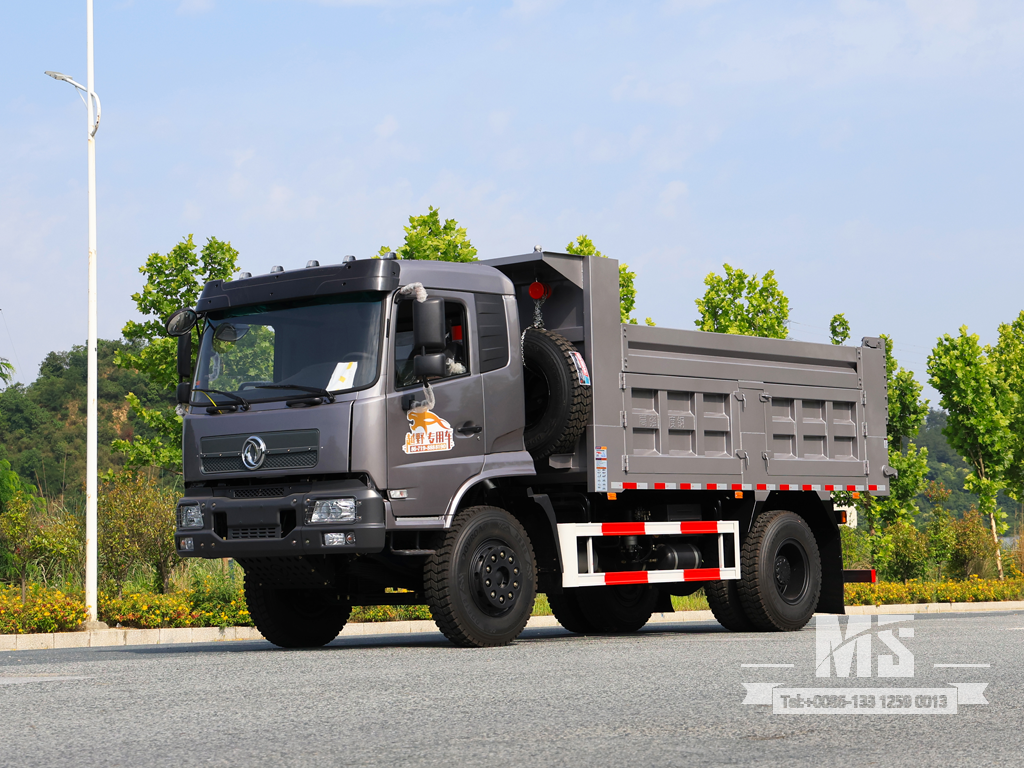

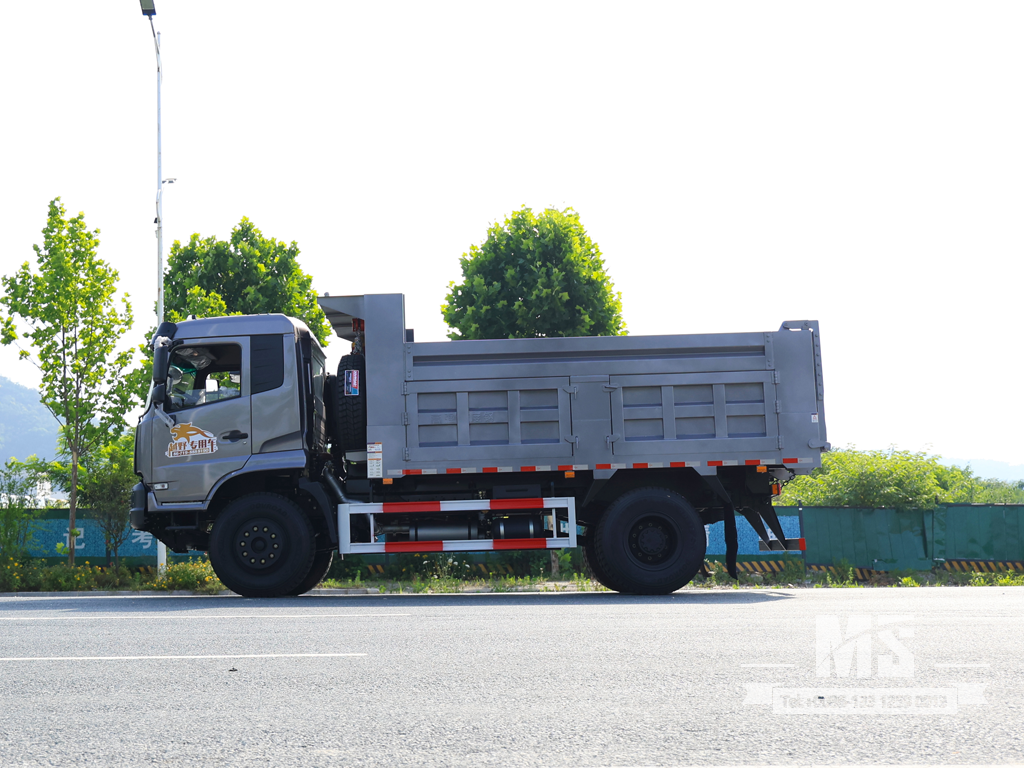

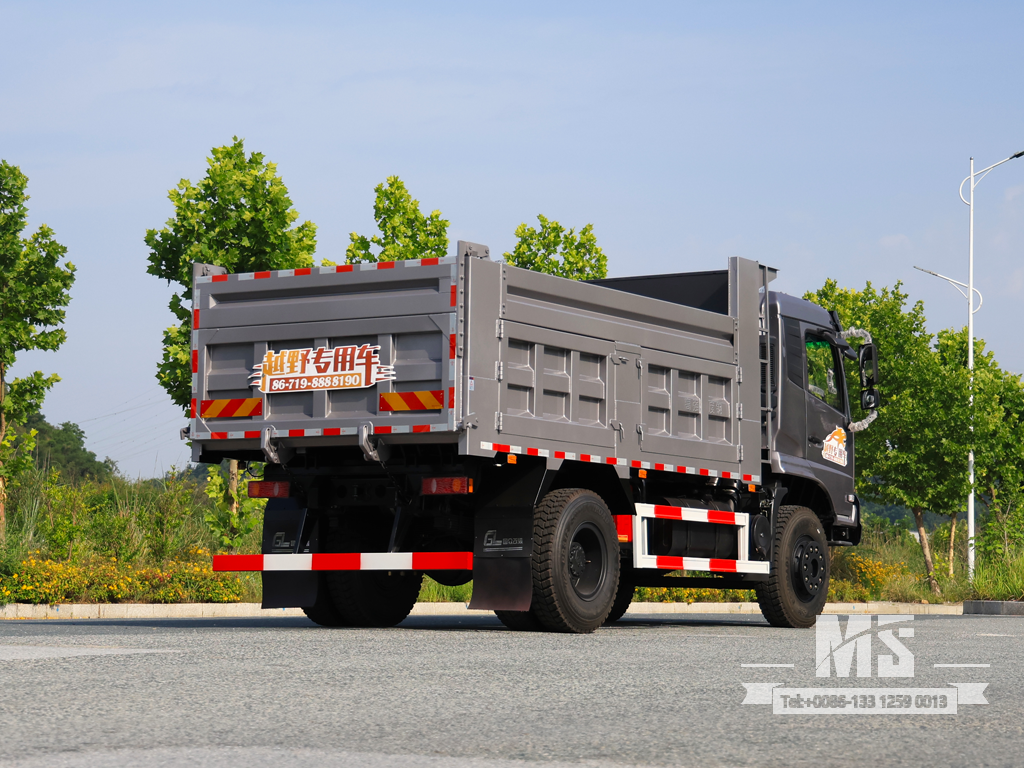

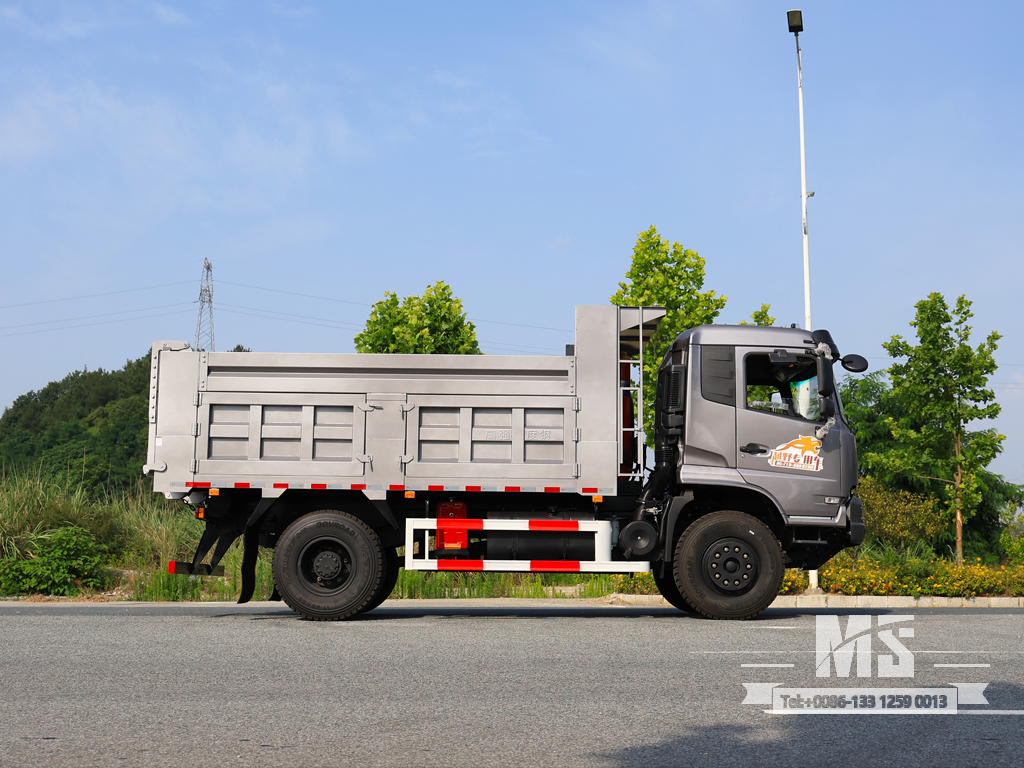

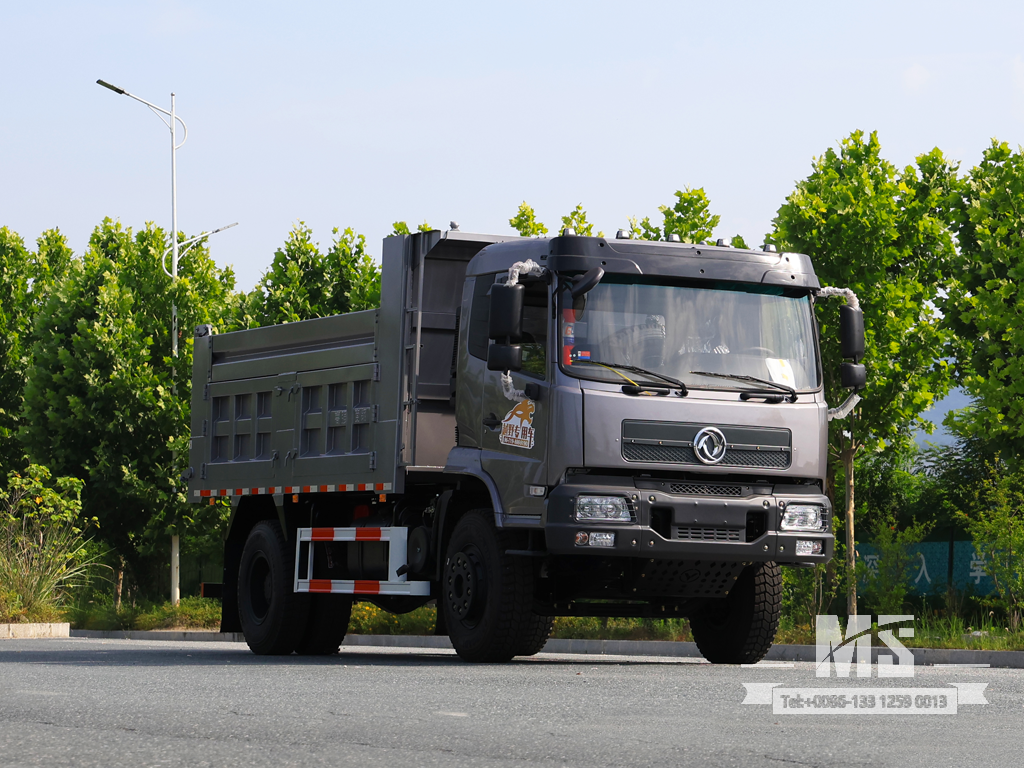

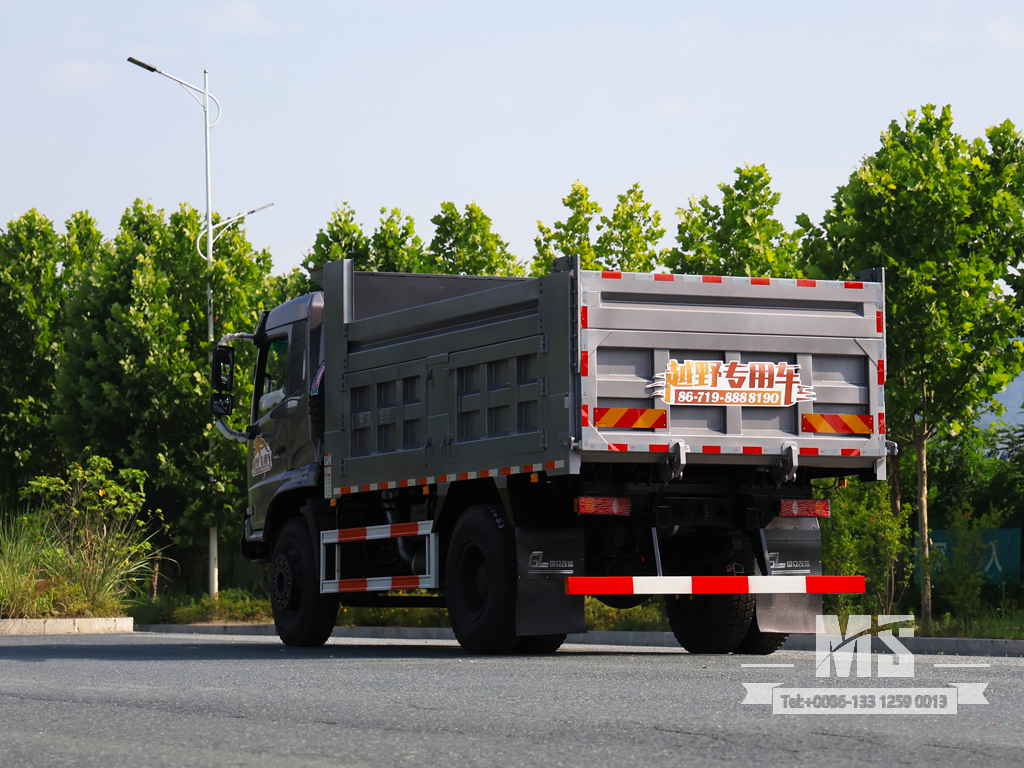

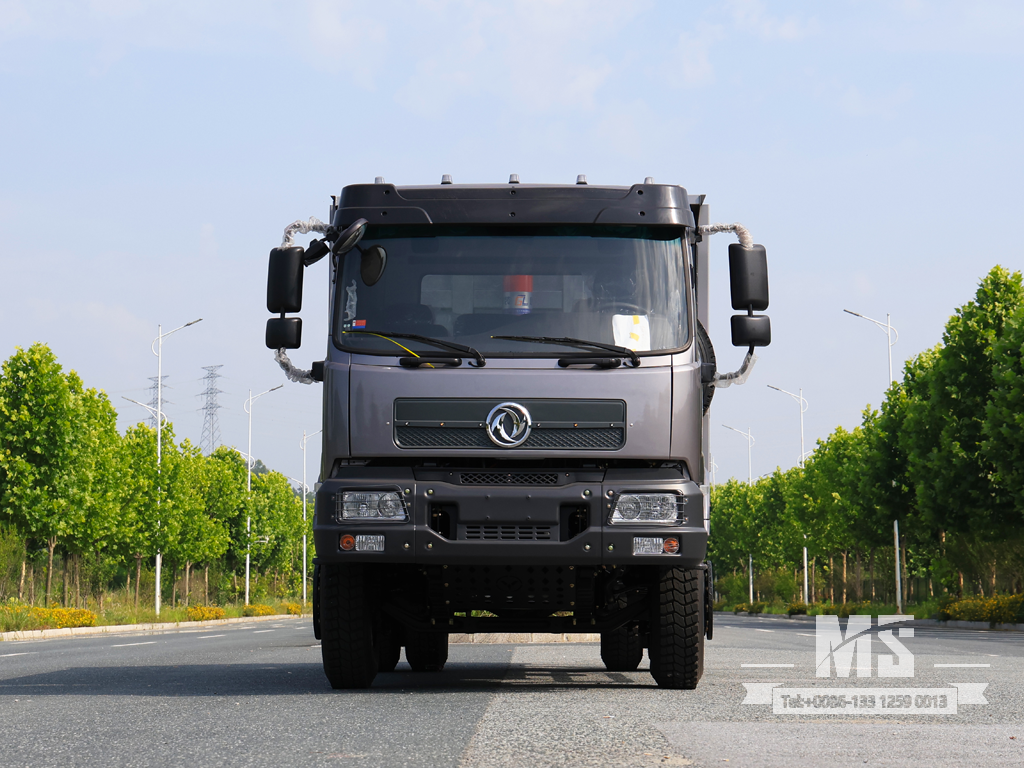

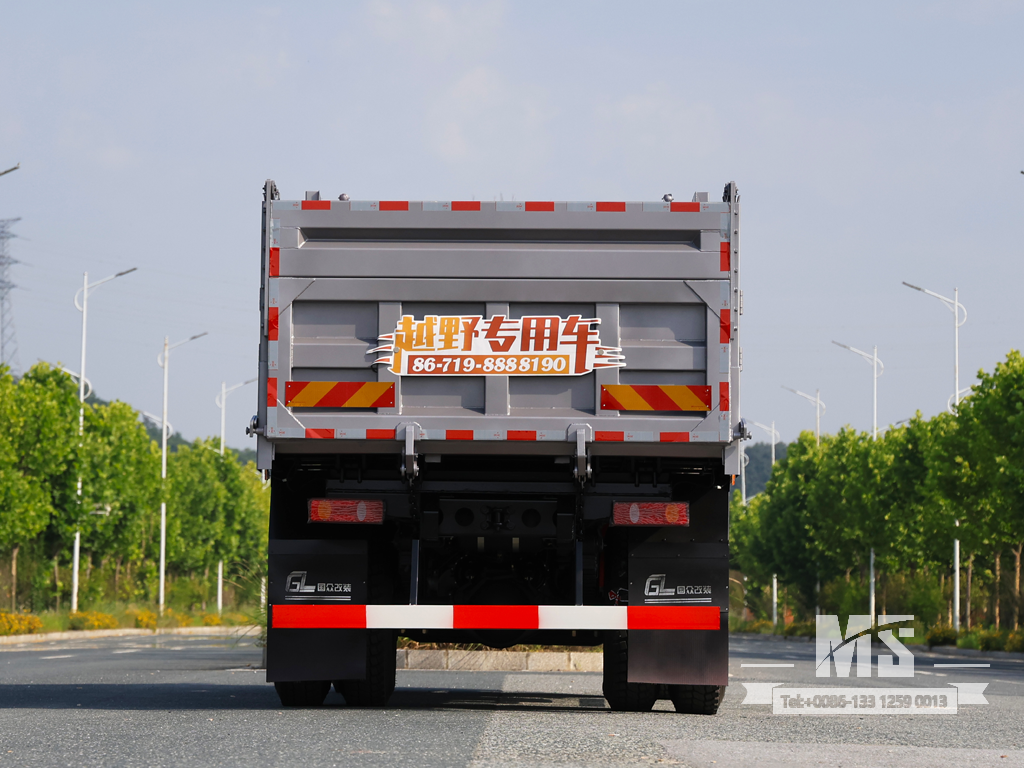

Dongfeng 18 Ton Flathead Half Row Dump Truck (270 HP)
Basic configuration |
Drive type | 4*2 |
Engine | ZhongQi 270hp |

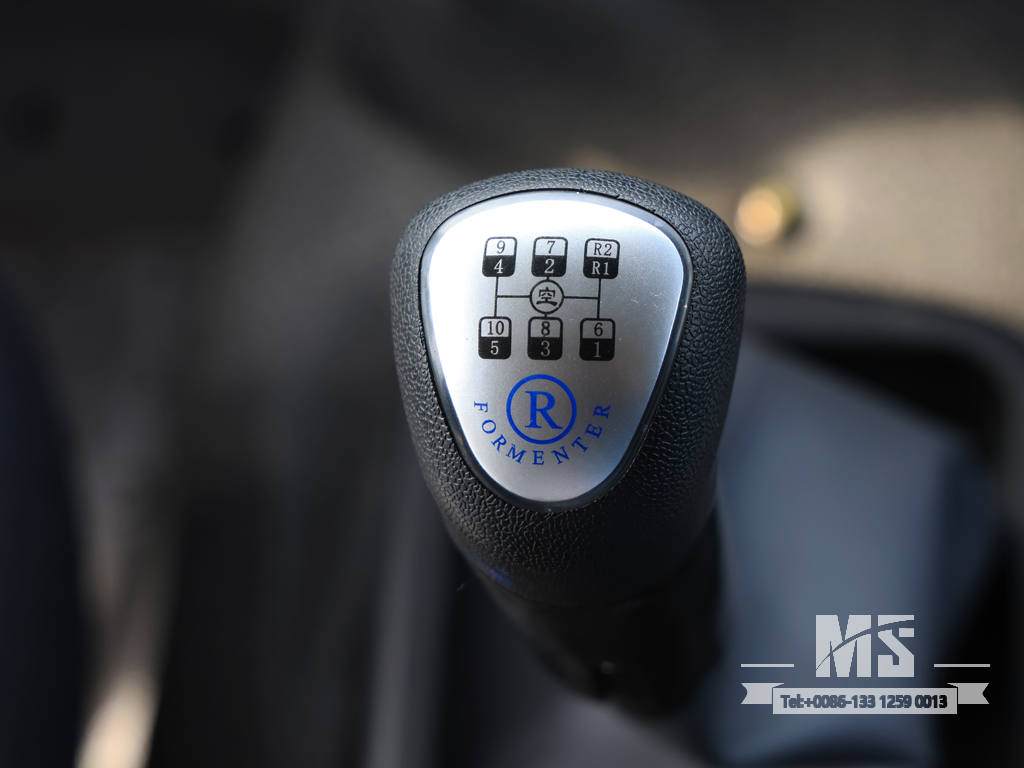

Transmission | Shou chi Manual 10-speed |

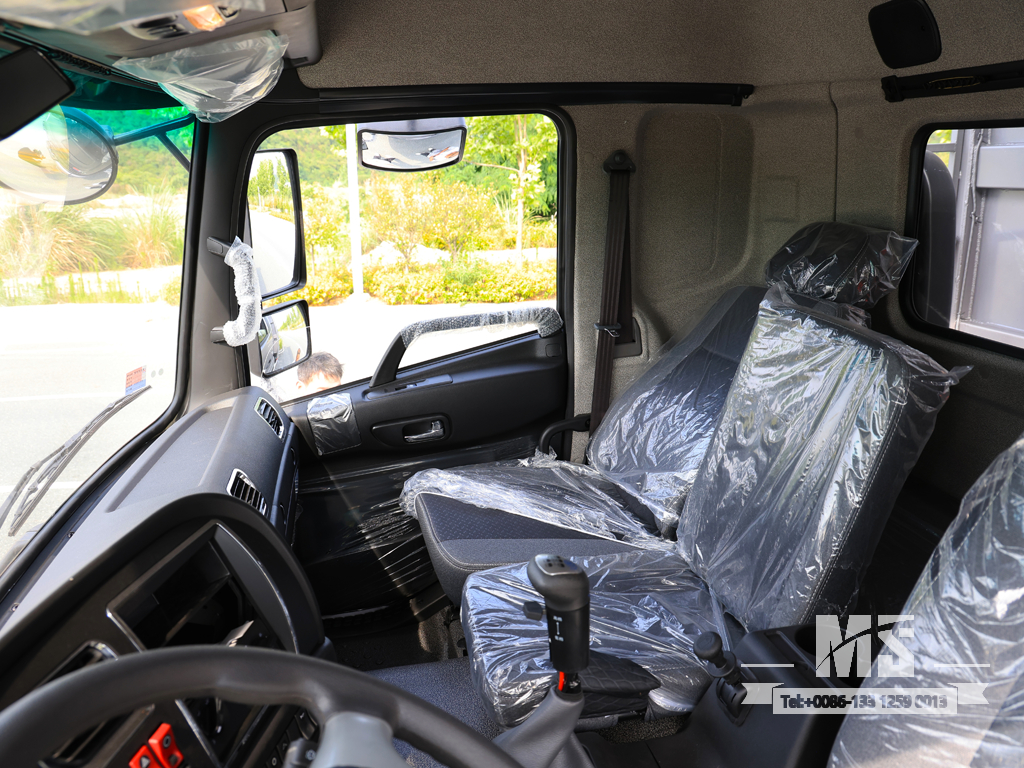

Driver Cab | Dongfeng Flat-head half row |
Vehicle Axle |
Dont Alxe 5T/Rear Alxe 13T
|

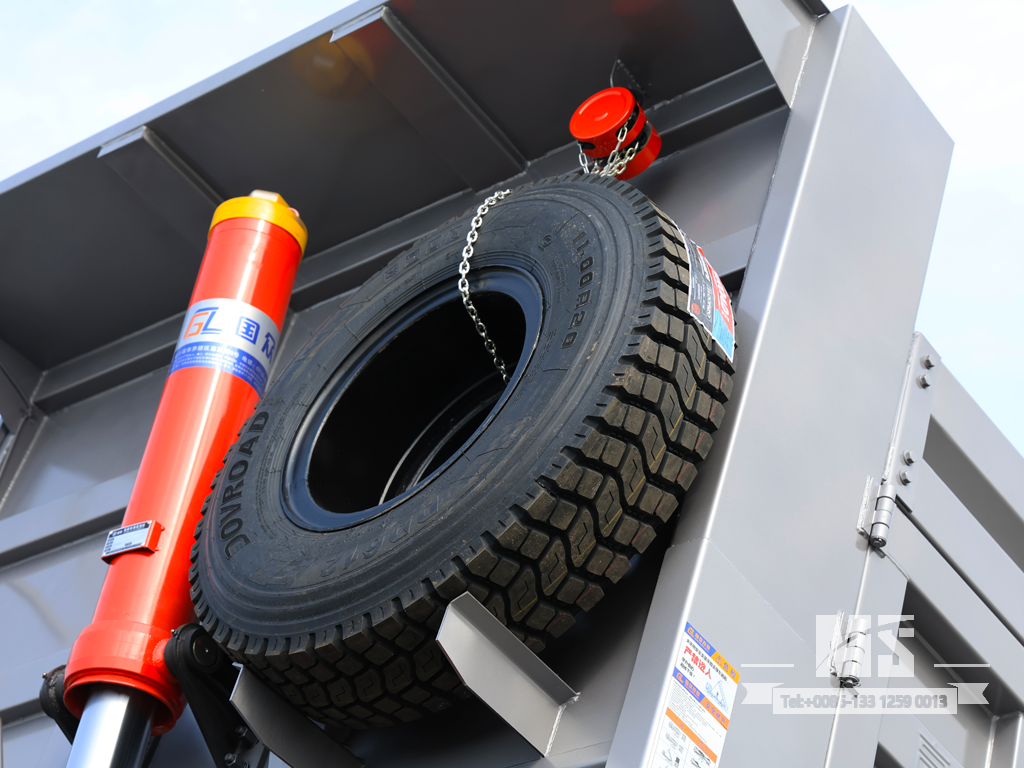

Tire | 11.00R20（6+1 Pieces） |
Detailed parameter |
Overall Dimension | 7250×2580×3120mm |
Cargobox Dimensions | 4400x2300x800+400mm |
Wheelbase | 3950mm |
Wheel track | 1955/1815mm |
GVW | 18000kg |
Curb Weight | 9100kg |
Maximum Power | 196kw |
Engine Displacement | 9.726L |
Maximum speed | 85km/h |
Approach Angle/departure Angle | 24°/27° |
Tank volume | 280L |
Minimum ground clearance | 305mm |
Fording depth | 500mm |
Obstacle height | 470mm |
Note: This configuration is for reference only, please refer to the actual car.
