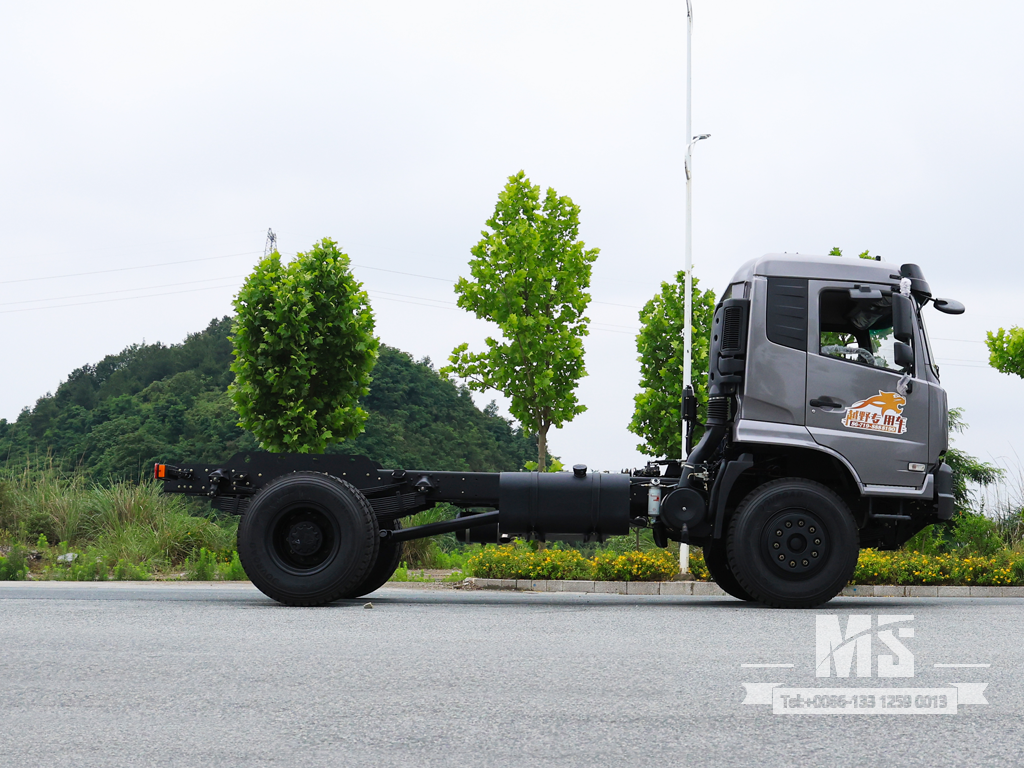

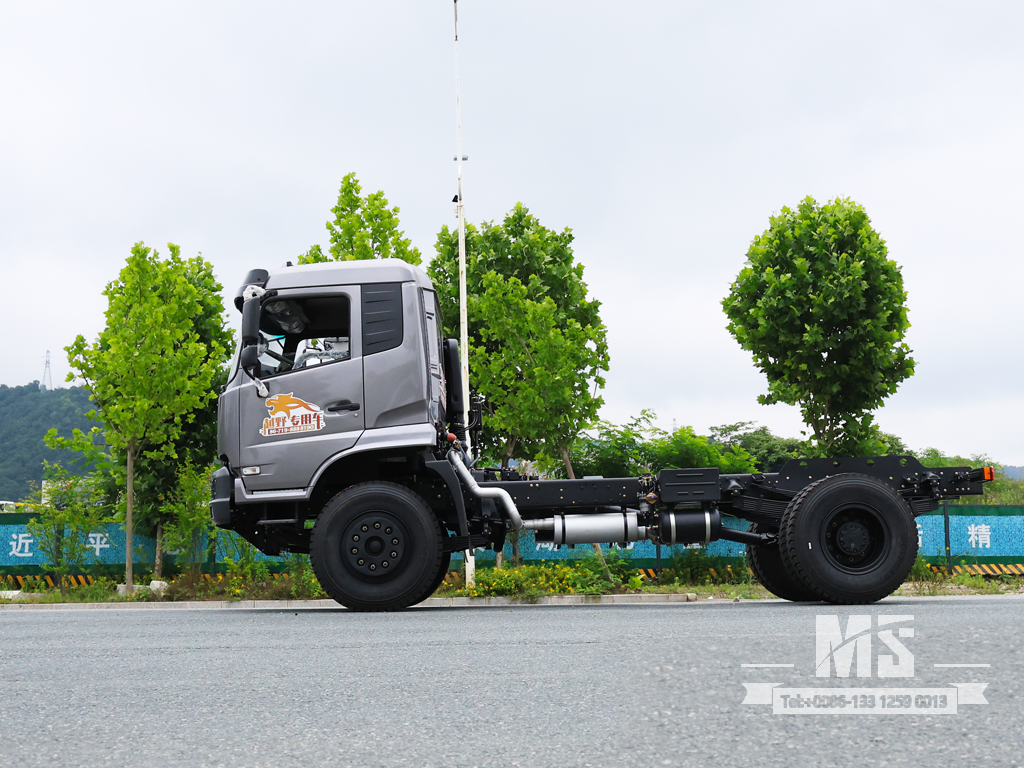

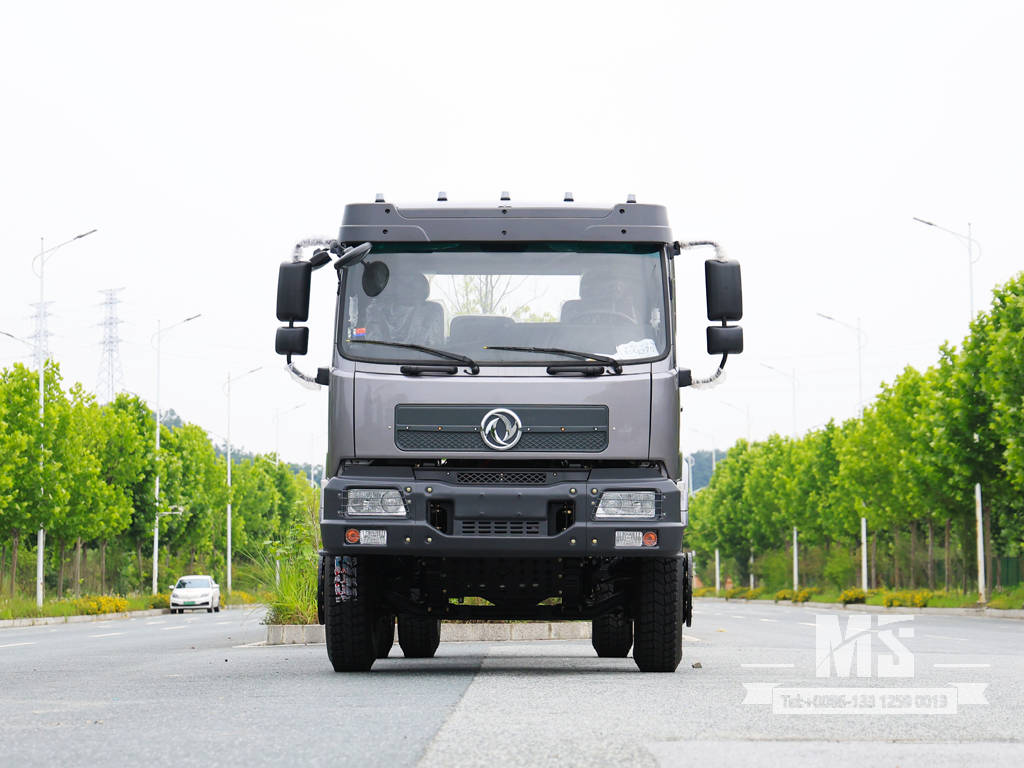

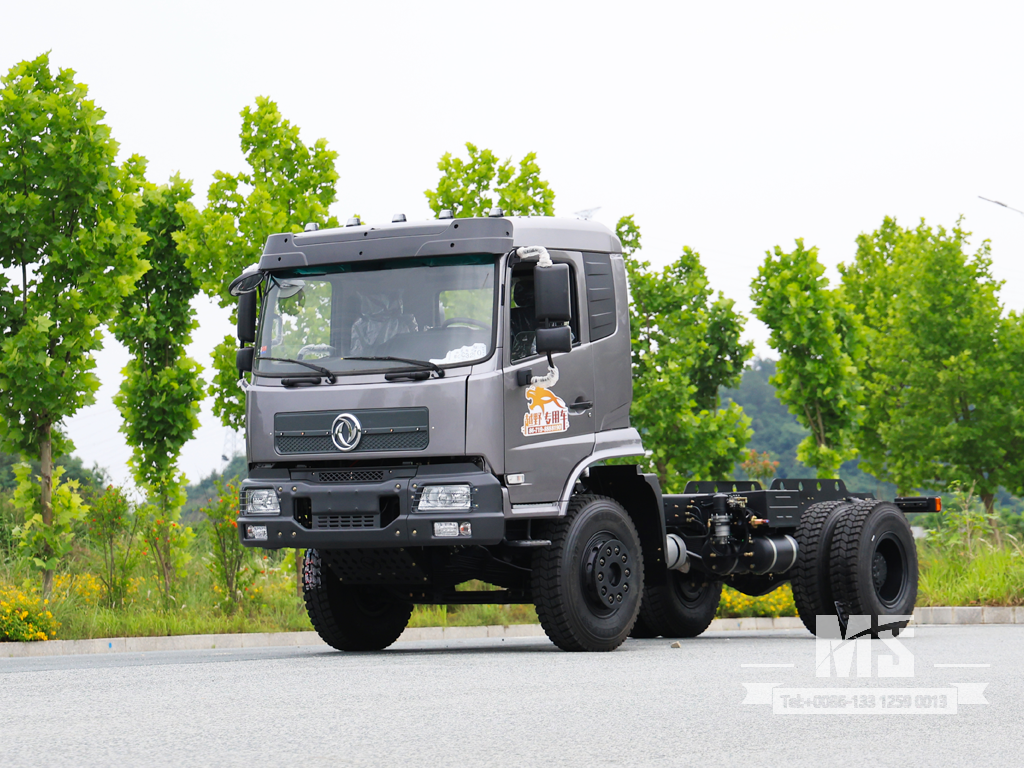

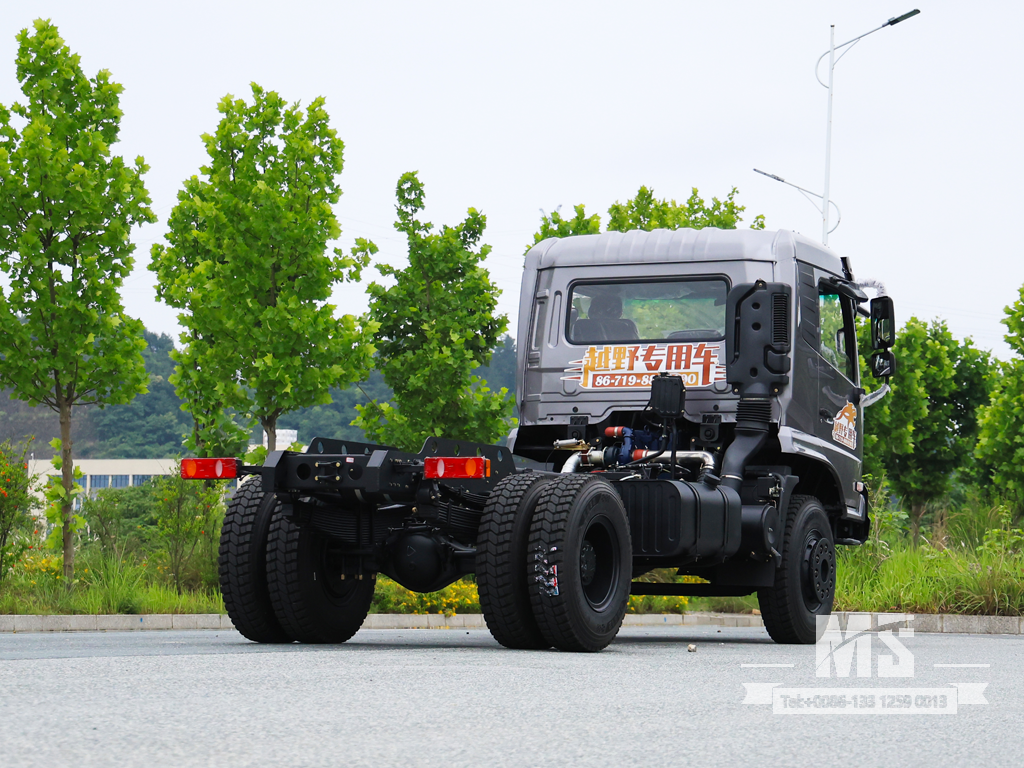

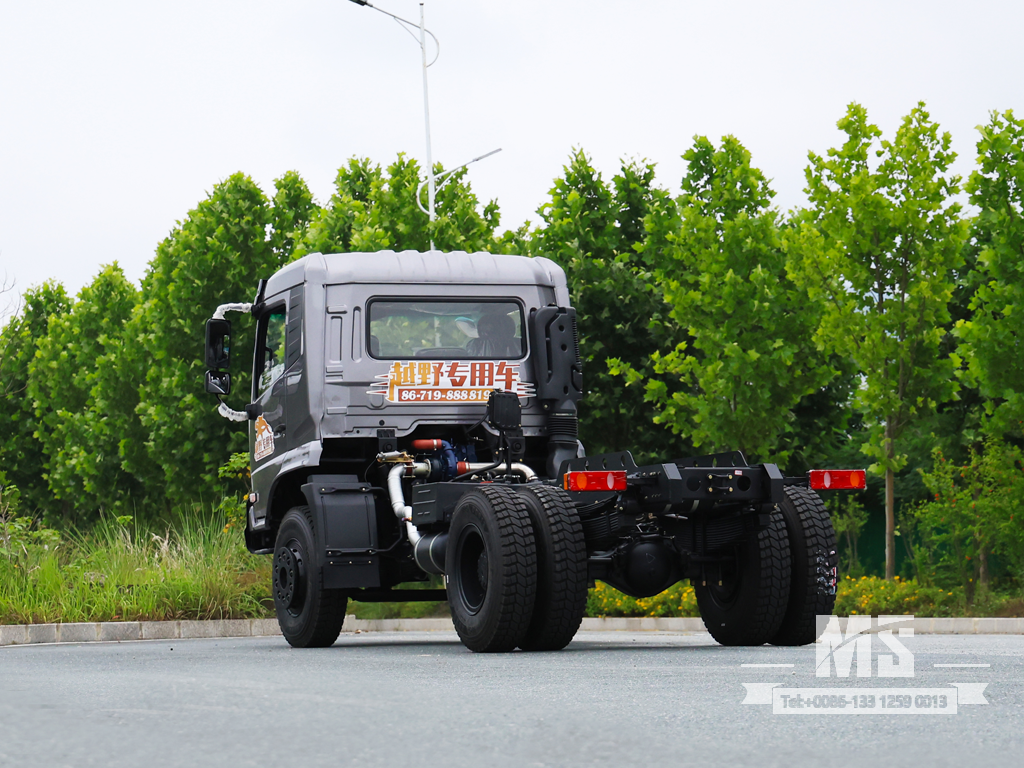

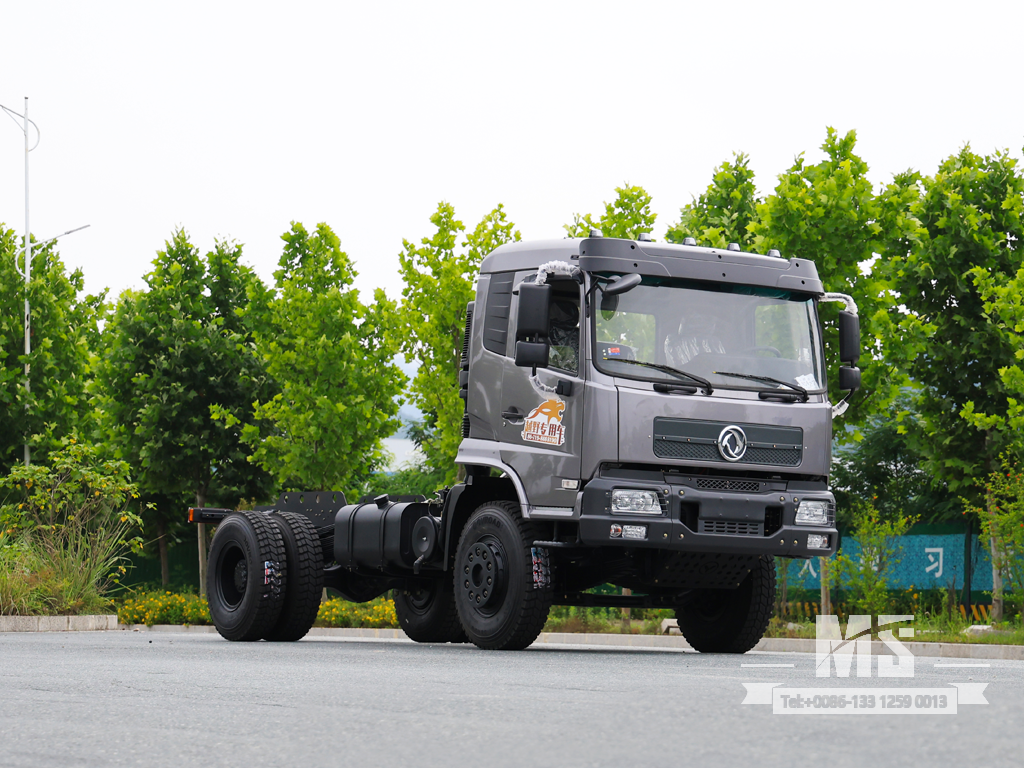

Dongfeng 4×2 Flathead Dump Chassis
Basic configuration |
Drive type | 4*2 |
Engine | Weichai 260HP |
Transmission | Shou chi Manual 10-speed |

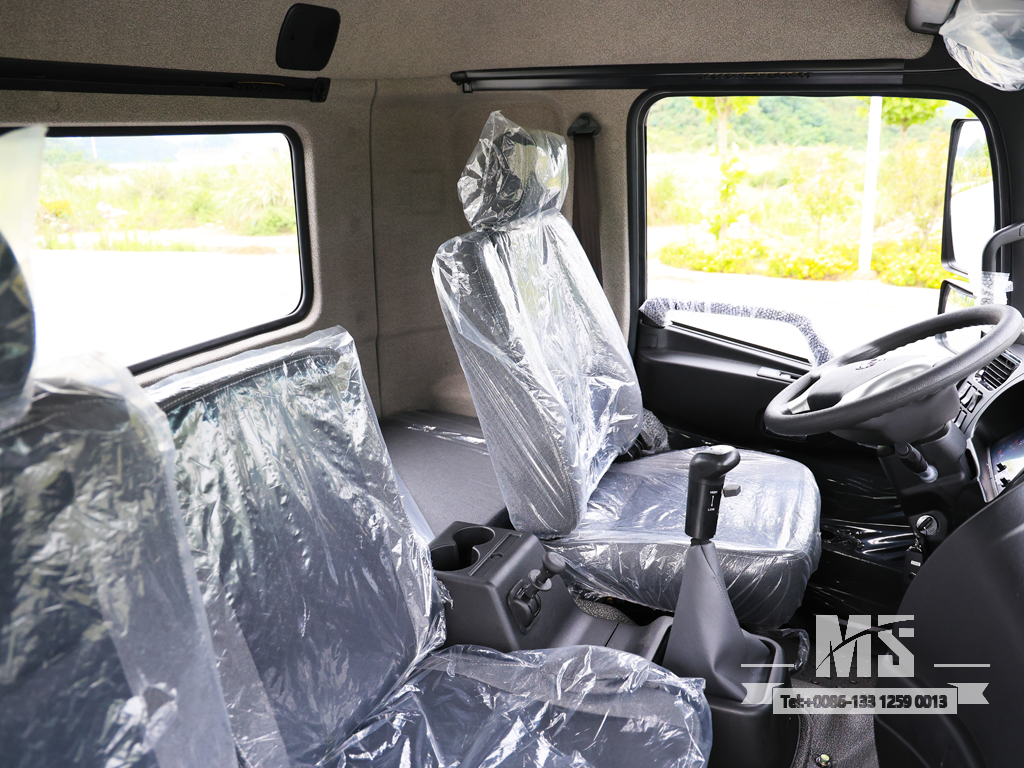

Driver Cab | Dongfeng Flat-head half row |

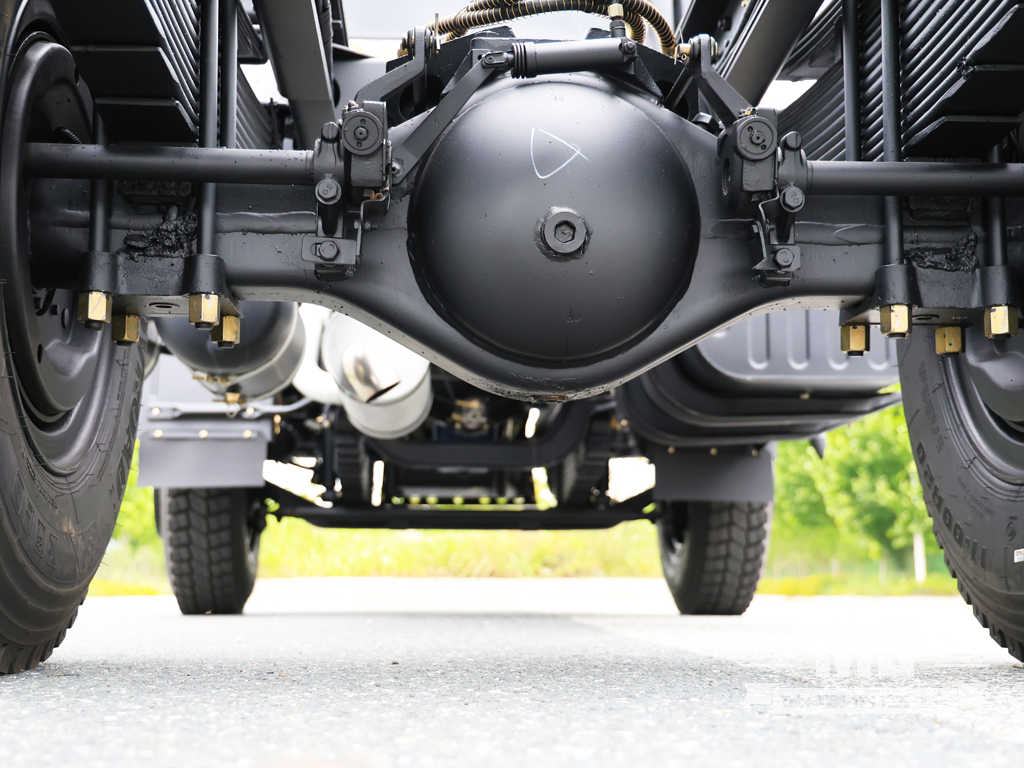

Vehicle Axle |
Dont Alxe 5T/Rear Alxe 13T
|

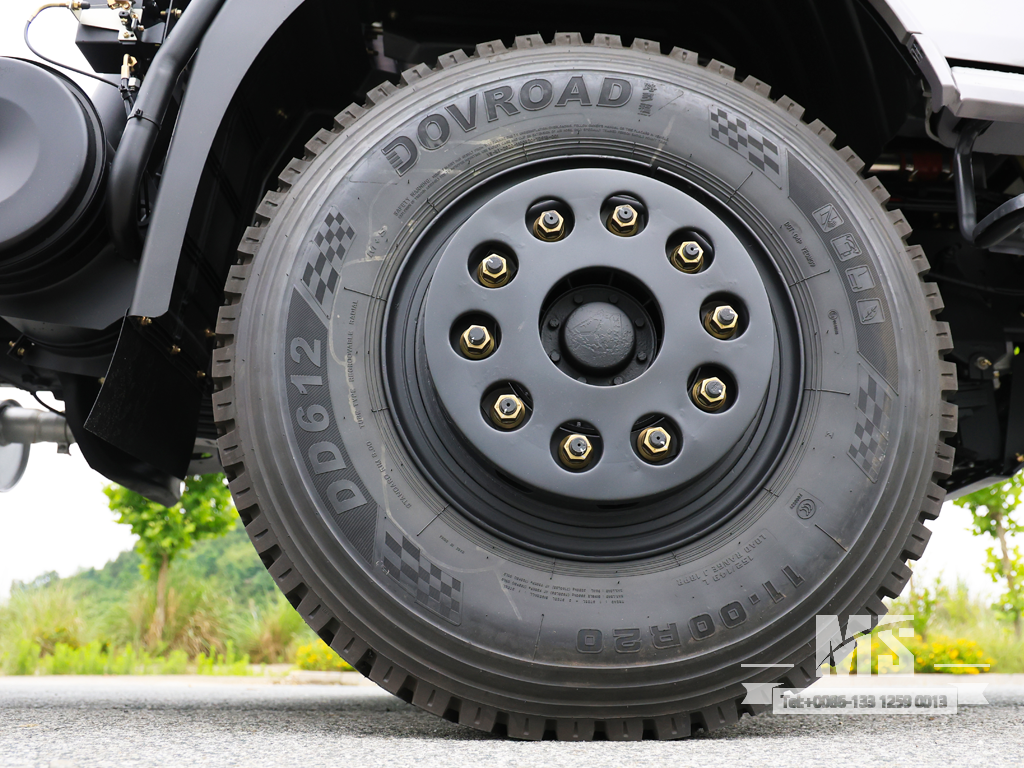

Tire | 11.00R20 (6+1 ) |
Torque | 1100N.m |
Displacement | 9.726L |
Leaf Spring | 12/13+6 |
Detailed parameter |
Chassis Overall Dimension | 6680×2260×2910mm |
Modification dimensions | ≥4200mm |
Wheelbase | 3950mm |
Wheel track | 1955/1815mm |
GVW | 18000kg |
Chassis Curb Weight | 9100kg |
Maximum Power | 196kw |
Fording depth | 500mm |
Maximum speed | 85km/h |
Approach Angle/departure Angle | 24°/27° |
Tank volume | 280L |
Minimum ground clearance | 305mm |
Obstracal height | 470mm |
Note: This configuration is for reference only, please refer to the actual car.
